L-type Electric hoist gantry crane – Efficient and cost-effective lifting solution for modern industry

Product highlight

L-type Gantry crane with electric hoist is an effective and flexible lifting device, suitable for medium and small material handling. This gantry crane features a compact structure and simple operation. The main girder adopts an L-shaped cross-section, offering high strength and stiffness, enabling it to bear heavy loads. The L-shaped design improves overall performance by lowering the main girder's weight while maintaining strength. Its lifting mechanism typically uses CD/MD electric hoists for lifting and moving goods.

I. Overview of L-type Gantry Crane

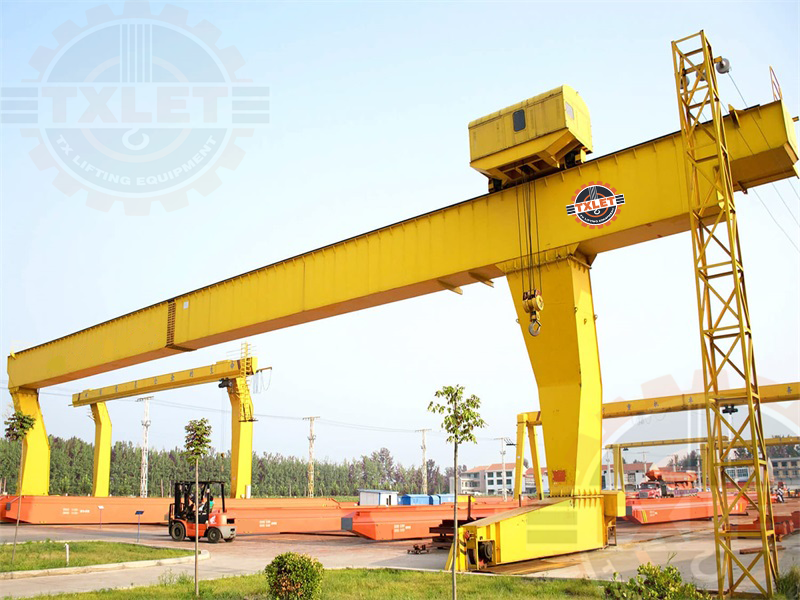

                           Real-life application of an L-type Gantry Crane in an outdoor yard, enabling smooth material handling operations with the support of a forklift

1. The importance of Gantry Cranes in manufacturing and construction

In today’s industrial and construction environments, speed, safety, and operational efficiency are top priorities. As the scale and complexity of projects continue to grow, manual handling of heavy materials becomes not only inefficient but also hazardous. Gantry cranes serve as an essential solution, significantly reducing human effort while increasing precision and speed during loading, unloading, and internal transport operations.

Whether in factories, warehouses, logistics centers, or construction sites, gantry cranes help optimize workflow, minimize downtime, and enhance overall productivity. Additionally, the use of appropriate lifting equipment contributes to compliance with occupational safety standards, helping businesses reduce accidents and improve working conditions.

2. What is an L-type Gantry Crane?

An L-type Gantry Crane is a type of single-girder gantry crane that features a distinctive L-shaped leg design, which sets it apart from traditional A-frame or box-type gantry structures. This configuration provides better access to the sides of the crane, allowing forklifts and trucks to move closer to the load, which is particularly beneficial in tight outdoor spaces or narrow yard environments.

The crane typically works in conjunction with a CD or MD electric wire rope hoist, enabling it to lift loads ranging from 5 to 50 tons. It runs on ground rails and is designed to move materials efficiently over a wide span.

Thanks to its compact structure, high stability, and efficient use of space, the L-type gantry crane is especially popular in industries where outdoor lifting operations are frequent, such as steel fabrication yards, construction material depots, shipyards, and container storage areas.

Moreover, its ease of installation and maintenance, combined with cost-effective manufacturing, make it an ideal choice for companies seeking a reliable lifting solution that doesn’t require a large-scale overhead crane system.

II. Detailed structure of the L-type Gantry Crane

1. Main L-shaped girder – Smart structural design

The core of the crane is its asymmetrical L-shaped main girder, crafted from welded box-section steel with high precision. This configuration offers excellent torsional rigidity and structural balance, ensuring minimal deformation even under full load conditions.
Despite its strength, the design remains lightweight, allowing for smoother operation and reduced stress on the support mechanisms. The girder can handle load capacities up to 50 tons, making it highly adaptable for various industrial applications.

2. Electric hoisting mechanism (CD/MD hoist)

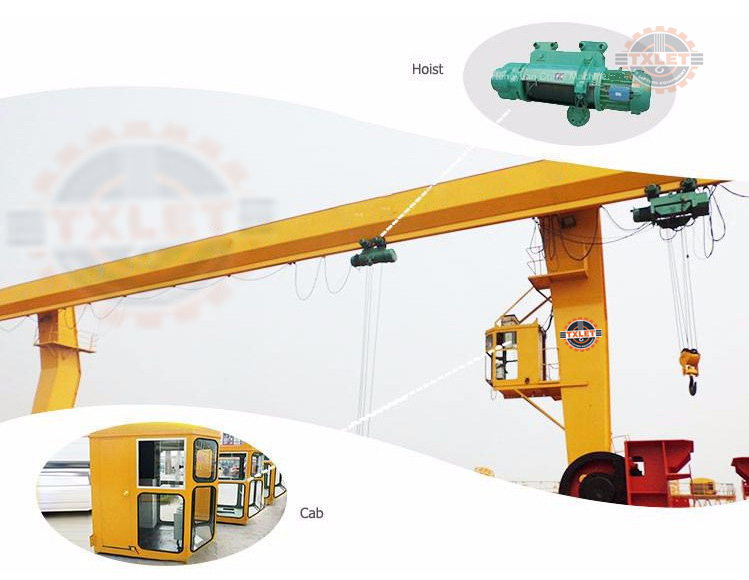

The lifting unit of the crane features a CD or MD electric wire rope hoist, mounted directly beneath the main girder:

   CD-type hoist: Provides single-speed lifting, suitable for general-purpose material handling tasks where speed consistency is key.

     MD-type hoist: Equipped with dual-speed control (normal & slow), ideal for precision lifting, delicate equipment handling, and operations requiring fine positioning.
Both hoist types are engineered for high efficiency, low noise, and long service life, with built-in safety features like load limiters and thermal protection.

3. Support legs and traveling system

The L-type crane includes two rigid support legs that connect the main girder to the ground rail system. These legs are built from high-grade structural steel and include:

    Wheel assemblies with motor-driven traveling systems for smooth movement along rails.

    An optional cantilevered extension (console) on one side enables the crane to cover a wider working area without compromising stability.
This setup is ideal for open yards or areas with limited overhead clearance.

4. Electrical system and controls

The crane is equipped with a comprehensive electrical system, designed for safe and efficient operation. Key components include:

    Control cabinet with circuit protection and operation interfaces

    Overload limiter, upper/lower limit switches, and grounding protection

    Emergency stop switch to immediately halt all operations in case of faults
Operators can control the crane using a wired pendant, wireless remote, or an enclosed driver’s cabin (optional), depending on the working environment and user preference. This flexibility ensures both safety and convenience during daily operations.

III. Comparison with other Gantry Crane models

1. Technical specifications of L-type Gantry Crane

2. Comparison table: L-type vs. Double Girder vs. A-type Gantry Cranes

IV. Advantages of the L-type Electric Hoist Gantry Crane

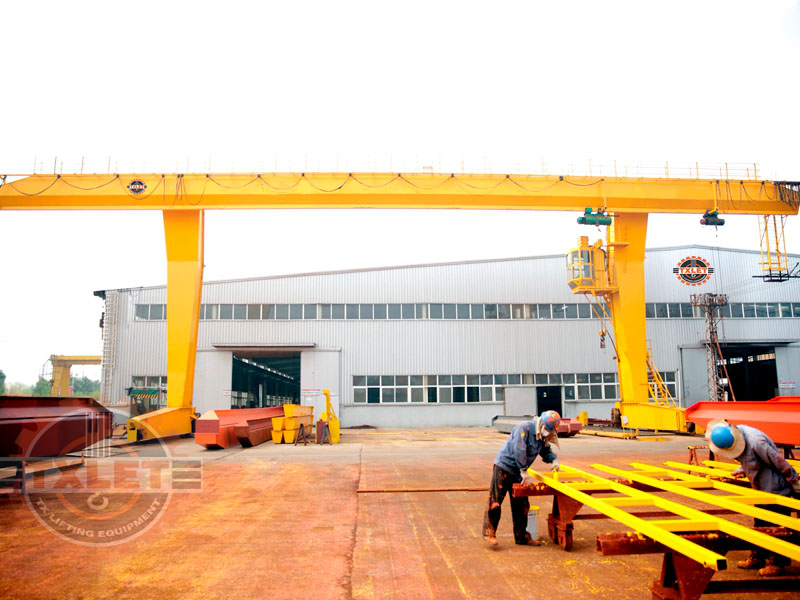

                                                                       On-site installation process of an L-type Gantry Crane

1. Lightweight yet robust and cost-effective

  The offset L-shaped structure helps reduce overall crane weight.

  It saves on materials while still ensuring strength and stability.

  Less load on rails and foundations → reduced construction costs.

  Optimized for lower power consumption and long-term operation savings.

2. Flexible design and customizable configuration

  Can be extended to one side, ideal for wider workspaces.

  Or configured symmetrically to balance loads more effectively.

  Easy to dismantle, relocate, and reassemble → perfect for mobile construction sites.

3. Safety, durability, and long-term efficiency

  Adjustable lifting height, span, lifting speed, and load capacity.

  Multiple control options: pendant control, wireless remote, or operator cabin.

  Optional add-ons: inverters, warning lights, load display screens, etc.

4. Complete safety system

  Fitted with limit switches, overload protection, electromagnetic brakes, etc.

  Ensures safe operation and meets strict technical standards.

  Reduces risk in outdoor or busy working environments.

5. Built to last in harsh environments

  High-quality steel structure coated with anti-corrosion outdoor paint.

  Withstands extreme weather—sun, rain, and corrosive environments like seaports.

  Long service life, minimal breakdowns, and less maintenance downtime.

V. Applications of the L-type Electric Hoist Gantry Crane

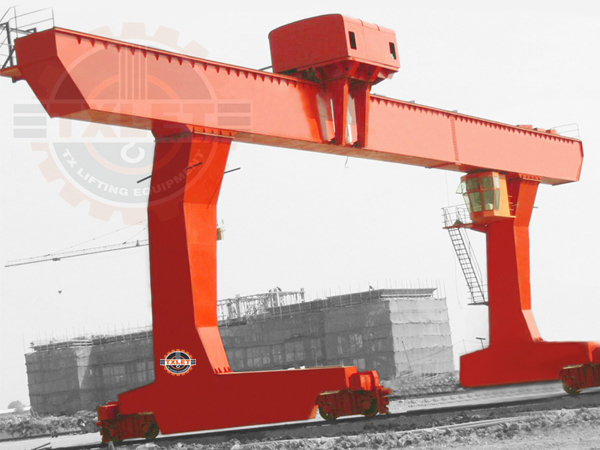

                        Heavy-duty L-type Gantry Crane in use at a construction site, built to perform under extreme environmental conditions

1. Mechanical and machinery manufacturing

Widely used to lift heavy machine molds, steel frames, and mechanical components. It also supports material transfer along assembly lines, improving productivity and reducing manual labor in workshop environments.

2. Storage yards, logistics centers, and ports

Ideal for handling bulk materials, pallets, and lightweight containers. In some cases, it can serve as a cost-effective alternative to traditional container cranes, especially when lifting requirements are moderate.

3. Construction sites and concrete plants

Helps transport sand, gravel, rebar, and other building materials efficiently. Frequently used at batching plants or precast concrete workshops for lifting and positioning formwork and heavy equipment.

4. Metallurgy and mining operations

Facilitates the movement of ore, billets, semi-finished steel, and mining materials. Custom versions can be configured with dust-proof or heat-resistant features to suit demanding environments.

VI. Configuration recommendations based on Application needs

L-type Electric Hoist Gantry Crane offers flexible configurations to suit various operational requirements. Below are some recommended setups:

1. Lifting light loads under 20 tons → Use CD-type electric hoist + no console

Compact and lightweight design for easy installation.

Low investment and maintenance costs.

Ideal for small construction projects or workshops with limited space or roof coverage.

2. Lifting medium loads from 20–50 tons → Use MD-type electric hoist + single-side console

Enhanced speed control and better stability for heavier loads.

The single-sided console expands the crane’s working range, especially useful in areas with obstacles on one side.

Suitable for logistics yards, steel storage areas, and medium to large construction projects.

3. Frequent outdoor use → Add an operator cabin

Safer and more intuitive operation in harsh outdoor environments.

Provides clear visibility of lifting operations, improving precision and efficiency.

Cabins can be equipped with dust-proof glass, rain protection, and air-conditioning if needed.

VII. FAQs – Frequently asked questions

       Customizable configuration of the L-type Gantry Crane featuring a double girder electric hoist, operator cabin, and safe guiding rail system

1. Is this crane suitable for outdoor use?

          ✅ Yes, all components are electrostatically painted for rust and water resistance.

Optional rain covers can be added to protect the hoist in harsh weather. The crane is designed for long-term outdoor durability.

2. Can it lift materials on top of containers or concrete molds?

✅ Absolutely.

When equipped with an MD-type hoist and a console beam, the crane offers a wider working range — ideal for lifting above large molds or stacked containers.

3. Does the crane come with technical support and documentation?

✅ Yes.

We provide comprehensive technical documentation, including layout drawings, operation manuals, and maintenance guidelines. Technical support is available to assist with commissioning, usage, or troubleshooting when needed.

VIII. Why choose the L-type Gantry Crane?

The L-type Gantry Crane is an optimal choice for outdoor lifting operations, especially in construction sites, logistics yards, and fabrication plants. Designed with durability, simplicity, and efficiency in mind, it is equipped with a driver’s cabin to provide maximum visibility and control during heavy-duty tasks.

L-type Gantry Crane is designed for heavy-duty outdoor lifting applications, equipped with a driver’s cabin for safe and efficient operations.

1. Optimal balance between performance and cost

Bridging the gap between light-duty workshop cranes and large port gantries, the L-type gantry crane delivers:

   Excellent load handling capabilities at a reasonable cost

   High performance suitable for mid-range lifting needs

   Reliable operation without the high investment required for ultra-heavy-duty cranes

It is a smart solution for companies that need strength and safety without overspending on excess capacity.

2. Simple operation, low maintenance

This crane is engineered for ease of use and long-term operational stability:

   No complicated trolley or advanced control systems

   All components are easily accessible for routine inspection and replacement

   Compatible with standardized hoists for quick parts replacement and easy troubleshooting

   Less downtime thanks to intuitive design and minimal wear parts

Its user-friendly design makes it ideal even in projects where operators rotate or equipment needs to be moved frequently.

3.  A long-term investment with lasting value

The L-type crane is more than just a lifting device — it’s an investment:

Strong steel construction and quality components ensure long service life

Designed to support upgrades like inverter controls, safety alarms, and smart load monitoring

Lower operating and maintenance costs over the lifespan of the machine

High residual value due to structural robustness and standardized parts

4. Designed for Outdoor performance

With heavy-duty usage in mind, this crane thrives in open environments:

  Resistant to temperature fluctuations, moisture, and corrosion

  Painted with industrial-grade coatings for extra weather protection

  Perfect for shipyards, logistics terminals, steel yards, and prefabrication fields

IX. About TXLET

With over 10 years of experience in industrial lifting and power transmission solutions, TXLET proudly offers comprehensive services for factories, industrial zones, and construction sites nationwide.

We specialize in the manufacturing, supply, and installation of:

Overhead and Gantry Cranes: Including single/double girder overhead cranes, suspension cranes, A-frame gantry cranes, L-type gantry cranes, etc.

Electric Hoists: Chain hoists, wire rope hoists from trusted brands

Mechanical Power Transmission Systems: K, F, S, R series helical gearboxes, NMRV worm gear reducers, SWL screw jacks, AGBS drum couplings, etc.

Lifting Accessories: Crane hooks, sheaves (pulleys), cable drums, and more.

All products are engineered to meet high technical standards, strictly quality-tested, and customized to meet each client's real-world application needs.

Related Products:

 Double Girder Overhead Crane – The ideal solution for heavy-duty lifting in large workshops
 Electric Hydraulic Grab Bucket – Designed for ports and waste-handling plants
 K Series Gearbox – Robust and stable performance for power transmission
 AGBS Drum Coupling – Efficient torque transmission for lifting systems
 SWL Screw Jack – Precise and safe height adjustment

X. Order & Delivery process

We provide a comprehensive solution from consultation and manufacturing to on-site installation, ensuring quality and on-time delivery:

Consultation & requirement analysis: Our technical team works closely with you to select the most suitable model.

Design & engineering: We provide detailed technical drawings (CAD), installation plans, and coordination with supporting equipment such as hoists.

Manufacturing & quality control: All equipment is manufactured to ISO standards and strictly inspected before delivery.

Delivery & installation: Fast and reliable shipping, with on-site installation and test runs provided.

After-sales support: Official warranty, spare parts supply, and technical assistance whenever needed.
