SJA Series Spiral Screw Lift: A Precise and Durable Lifting Solution for Modern Industry

I. General introduction to SJA Series Spiral Screw Lift

1. What is an SJA Series Spiral Screw Lift?

The SJA Series Spiral Screw Lift (commonly known as a Screw Jack) is a sophisticated mechanical device specifically designed for applications requiring linear motion. It is more than just a lifting tool; it's a comprehensive solution for pushing, pulling, tilting, and precisely positioning loads. The core of an SJA Screw Lift consists of two key components: a worm gear drive and a screw shaft (which can be a trapezoidal screw or a ball screw). This combination creates an efficient mechanism that converts the rotary motion of a motor into the linear movement of the screw shaft.

A standout feature of the SJA series is its ability to operate reliably in harsh industrial environments. The product offers a very wide load range, from 500 kg to 100 tons, accommodating most light to heavy-duty needs. Furthermore, with a screw travel distance of up to 8 meters, the SJA Series provides incredible flexibility in system design. The housing is made of durable ductile cast iron, which not only protects the internal components but also contributes to the crucial self-locking feature, holding the load in the desired position even without a power source.

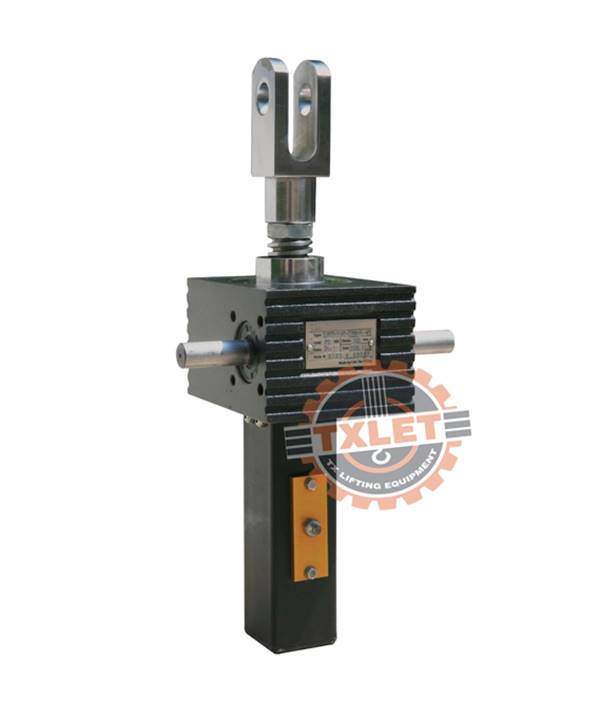

SJA Series Screw Jack with U-fork end – easy to integrate into lifting mechanisms, gate operation, or automated machinery.

2. The importance of Spiral Screw Lifts in modern industry

In the context of Industry 4.0, the demands for automation, precision, and safety are ever-increasing. The SJA Series Spiral Screw Lift has become a preferred choice, effectively replacing hydraulic and pneumatic systems in many applications due to its superior advantages:

• Absolute safety: The self-locking mechanism is one of its most prominent features. It allows the load to remain in place, eliminating the risk of it falling or slipping in the event of a sudden power outage or operational stop.

• Clean and low-maintenance operation: Unlike hydraulic systems prone to oil leaks, SJA Screw Lifts operate cleanly, do not cause environmental pollution, and require very little periodic maintenance.

• Easy synchronization: SJA units can be connected to create a synchronized lifting system. With just a single motor, multiple screw jacks can move simultaneously with the same precise speed and travel, making them ideal for automated production lines.

• Diverse applications: Thanks to their robust and precise performance, SJA Screw Lifts are widely used in many key industries, including:

  • Metallurgy: Lifting steel coils, adjusting furnaces.

  • Energy: Adjusting solar trackers, hydroelectric dam gates.

  • Construction: Lifting beams, positioning structures.

  • Medical and precision engineering: Adjusting operating tables, optical equipment, and high-precision machinery.

In summary, the SJA Series Screw Jack not only optimizes mechanical lifting solutions but also contributes to increased productivity and enhanced workplace safety, helping businesses excel in the new industrial era.

II. Operating principle of the SJA Series Spiral Screw Lift

The SJA Series Spiral Screw Lift operates on a simple yet highly effective principle: the conversion of rotary motion into linear (or translational) motion using a worm gear drive system. This fundamental principle is what enables the device to lift immense loads with exceptional precision, stability, and superior safety.

1. Drive structure and function

To fully understand how a Screw Jack works, we need to grasp its key components:

• Power source: This is the input that provides the rotational energy. It can be an electric motor (AC, servo, or stepper motor) for automated applications, or a simple manual hand wheel.

• Worm gear: This component receives the rotary motion from the power source. Its design generates significant torque and substantial friction, which is crucial for the self-locking mechanism.

• Screw: This is the main force-transforming component. The rotating worm gear drives the screw, converting torque into a powerful linear thrust, causing the screw to move along its axis.

• Nut: This is directly attached to the load. The nut can either move along with the screw (in a "Translating Screw" configuration) or it can move linearly on a stationary screw (in a "Traveling Nut" configuration).

2. Two primary operational configurations

The SJA Series offers two main operational configurations, each suited for a specific type of application:

Translating screw configuration

In this setup, the screw itself moves linearly up or down, while the nut and gearbox remain stationary.

• Advantages: This design is ideal for heavy-duty applications and long travel distances, up to 8 meters. It allows the load to be lifted securely and stably.

• Applications: Commonly used in systems that lift beams, large sluice gates, or adjust the position of heavy machinery.

Traveling nut configuration

The screw rotates in place, while the nut attached to the load moves linearly along the screw.

• Advantages: This design is more compact, minimizing the installation space required.

• Applications: Perfectly suited for synchronized multi-point lifting systems or applications where the load needs to travel a short distance in a confined space.

3. The self-locking safety mechanism – A key advantage

One of the most significant benefits of the worm gear and screw drive system is its inherent self-locking capability. This feature means that when the power source is cut, the internal friction within the drive is sufficient to hold the load in place without the need for any additional mechanical braking systems. This not only enhances safety in heavy industrial applications but also reduces system cost and complexity.

4. Performance and operational limits

• Efficiency: The drive efficiency of a worm gear and screw system typically ranges from 25–33%. While this may seem low, this efficiency is precisely what generates the powerful self-locking feature. As a result, SJA Screw Lifts are well-suited for intermittent duty cycles.

• Lifting speed: Standard speeds reach approximately 23 mm/s, but can be customized up to 46 mm/s to meet higher-speed requirements.

• Precision: With special anti-backlash designs, the precision of SJA Screw Lifts can be as high as ±0.05 mm, making them suitable for precision engineering applications.

• Temperature limits: The SJA operates reliably within a standard temperature range of -10°C to +40°C. Optional versions can extend this range from -40°C to +70°C, accommodating a wide variety of harsh working environments.

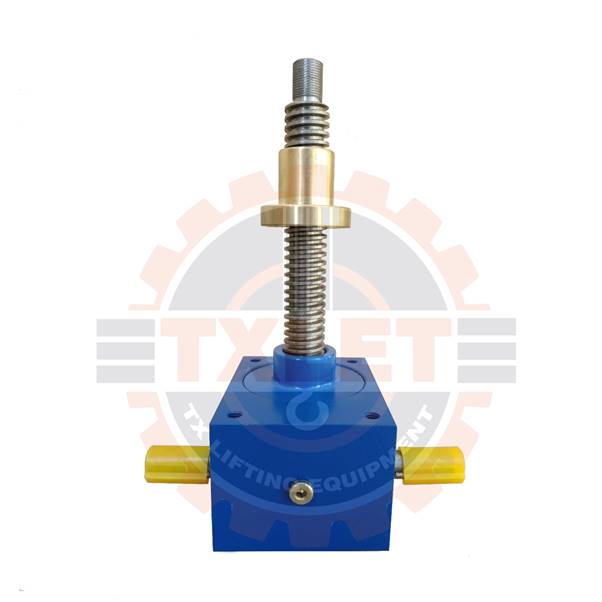

Compact SJA Spiral Screw Lift – designed for medium loads, perfect for automation and industrial equipment.

III. SJA Series Spiral Screw Lift: Technical Specifications and Key Features

To properly evaluate and select the right SJA Series Spiral Screw Lift, it's crucial to understand its technical specifications and design features. The following provides a detailed overview of the core elements that define this product's reliability and performance.

1. Basic technical specifications

The SJA Series Screw Jack is designed with a wide range of specifications to meet diverse technical requirements:

2. Key design features

• Ductile cast iron square housing: This design provides high rigidity and increases the heat dissipation area, extending the equipment's service life.

• Trapezoidal or ball screw: Users can choose the appropriate screw type. Trapezoidal screws offer good self-locking capability and are cost-effective, while ball screws provide higher efficiency and superior precision.

• Diverse configurations: The product can be customized with two main configurations: Translating Screw and Traveling Nut, accommodating different space and application requirements.

• Self-locking mechanism: This is a crucial safety feature that prevents the system from dropping the load during a power failure, minimizing the risk of accidents.

• Modular capability: The SJA Series is designed for easy integration with accessories like gearboxes, motors, couplings, and allows for the synchronization of multiple screw jacks to create a comprehensive lifting system.

3. Configuration choice: Comparing the two main motion types

Choosing between the two SJA Screw Lift configurations directly impacts the system's efficiency and cost. The table below clarifies the differences between them.

IV. Advantages, benefits, and applications of the SJA Series Spiral Screw Lift

The SJA Series Spiral Screw Lift is more than just a mechanical device; it is a comprehensive solution that delivers significant benefits, from enhanced performance to improved safety in industrial environments.

1. Advantages and key benefits

The SJA Series stands out with a range of superior advantages compared to traditional lifting systems, providing substantial value to users:

• High precision and reliability: With a positioning error of just ±0.05 mm, the SJA meets the most stringent precision requirements for applications in production lines, industrial robots, and medical equipment.

• Superior safety and durability: The self-locking mechanism is a key safety feature, holding the load in place during unexpected power outages and eliminating the risk of load drop. The ductile cast iron housing not only provides high rigidity but also ensures excellent heat dissipation, extending the device's lifespan.

• Eco-friendly and low maintenance: Unlike hydraulic systems that are prone to oil leaks, the SJA operates cleanly, requiring only long-life grease, which significantly reduces maintenance costs and protects the working environment.

• Flexible customization: The SJA Series offers various options, including AC motors, servo motors, gearboxes, encoders (for position monitoring), limit switches, and other accessories, allowing for customization to suit any specific need.

• Exceptional synchronization capability: Multiple SJA screw jacks can be connected and controlled by a single motor. This ensures all lifting points move uniformly, optimizing operational efficiency and simplifying system design.

2. Diverse real-world applications

Thanks to these advantages, the SJA Series has become an ideal solution for a wide range of industries:

• Manufacturing and automation: Widely used for lifting machine tables and positioning complex components in automated production lines, welding robots, and precision machining systems.

• Metallurgy and heavy machinery: SJA is capable of lifting immense loads such as steel coils and ladles, and adjusting rollers in steel rolling processes, demonstrating its durability in harsh environments.

• Construction and architecture: Applied to control large gates, flood barriers, and lifting structures in modern architectural projects, ensuring both safety and aesthetic appeal.

• Energy and telecommunications: Plays a crucial role in adjusting the angle of solar tracking systems to optimize energy absorption. It is also used to adjust telecommunication antennas and radar.

• Medical and specialized equipment: Its high precision and safety make SJA suitable for medical devices like operating tables and hospital beds, where absolute stability is required.

• Stage and entertainment: SJA is used to lift stage platforms, create rotating stages, or produce special motion effects for performances and events, providing a unique experience for the audience.

In conclusion, from high-precision laboratory applications to lifting hundreds of tons in heavy industrial environments, the SJA Series Spiral Screw Lift has proven its flexibility, safety, and efficiency, making it an indispensable solution in the modern industrial era.

V. The SJA Series: The Leading Choice for Modern Lifting Systems

Choosing a lifting solution isn't just about technical specifications; it's also about reliability, cost-effectiveness, and the ability to meet specific application requirements. The SJA Series Spiral Screw Lift is the perfect choice that meets all these criteria.

1. Why You Should Choose the SJA Series Spiral Screw Lift

The SJA Series is a smart and strategic investment for any business, offering a host of superior benefits:

• Absolute reliability: Made from high-quality materials like durable ductile cast iron and wear-resistant alloy steel, the SJA Series guarantees a long lifespan and stable performance under all heavy-duty conditions.

• High flexibility: The device can be easily integrated into any system. Its ability to combine with various motors (AC, servo), gearboxes, and other control accessories allows the SJA Series to adapt to any automation requirement.

• Cost-optimized solution: Compared to bulky hydraulic systems, SJA Screw Jacks are significantly more cost-effective. They reduce operational costs, simplify maintenance, and, thanks to their self-locking mechanism, eliminate the need for costly external braking systems.

• Multi-industry applications: The SJA Series is not limited to a single field. From heavy industries like metallurgy and construction to high-precision applications in medicine, automation, and even stage production, the SJA proves its versatility and efficiency.

2. Comparing the SJA Series with Other Screw Lifts

For a comprehensive view, let's compare the SJA Series with similar product lines and traditional hydraulic systems.

3. Guide to choosing the right SJA Model

To optimize performance and cost, you must carefully evaluate the following variables while picking a model:

• Determine the lifting load: This is the most crucial factor. Identify the maximum load to choose a model with the appropriate nominal load capacity (from 500 kg to 100 tons).

• Calculate the travel length: For travel distances over 3 meters, we recommend using an additional guiding structure to ensure stability and prevent wobbling.

• Specify the required speed: The standard speed is 23 mm/s. If your application needs higher speeds, a custom order can be placed.

• Consider the working environment: For harsh environments with high temperatures, outdoor exposure, or corrosion risks, a stainless steel version or a protective cover should be chosen.

• Choose the motion type:

  • Screw Rod Movement is suitable for heavy loads and long travel distances.

  • Nut Movement is the ideal choice for compact, space-saving, and multi-point synchronized systems.

• Integrate accessories: For system automation, consider accessories like encoders (for position tracking), limit switches (for travel limits), and a safety nut.
