SWL Series Worm Gear Screw Jack – Reliable Self-Locking Lifting Mechanism

I. Overview

1. Product definition

The SWL Series Worm Gear Screw Jack (JWM/SWL) is a linear lifting and positioning mechanism based on a worm gear drive. It's used for lifting, lowering, pushing, pulling, and rotating loads. The product features a compact, lightweight design with a load capacity ranging from 2.5 to 120 tons. It can be operated manually or with an electric motor and is distinguished by its inherent self-locking capability, which eliminates the need for an external brake.

• Design standard: JB/T8809-1998.

• Diverse output configurations: Options include threaded end, clevis end, flange end, ball joint, etc., to suit various mounting styles.

• Typical specifications: Maximum input speed of 1,500 rpm, maximum lifting speed of 2.7 m/min, operating temperature range from −20°C to +100°C, and customizable stroke length based on application.

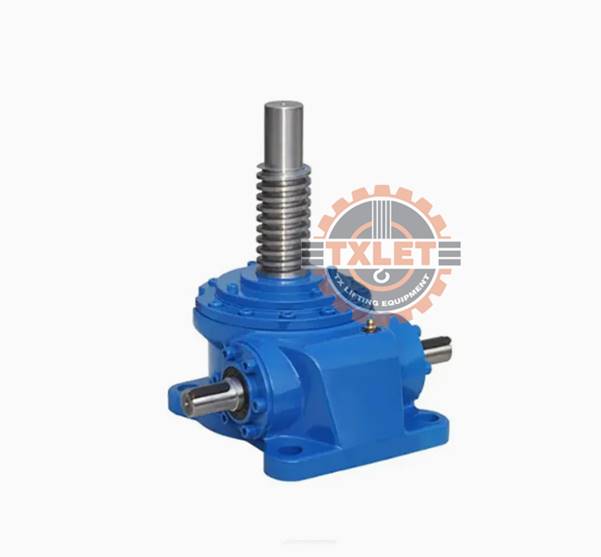

Overall compact and robust design of the SWL Screw Jack with a lifting screw that translates

2. Role of SWL Screw Jacks in mechanical and automation systems

• A building block for precise linear motion: It converts the rotational motion of a shaft or motor into stable linear motion for lifting, lowering, and positioning.

• Flexible integration: Can be used individually or synchronized in multi-jack arrangements using interconnected shafts, distribution boxes, or servo motors. This allows for uniform alignment, load balancing, and maintaining the levelness of lifting platforms, molds, and fixtures.

• An effective alternative to hydraulic/pneumatic systems: Ideal for applications requiring cleanliness (no leaks), low noise, simple maintenance, high energy efficiency, and safety in the event of a power failure (the self-locking mechanism holds the load).

• Easy to integrate into confined spaces: The compact, cubic shape and multiple mounting/connection options optimize machine and assembly line layouts.

• Wide range of applications: Suitable for use in manufacturing machinery, metallurgy, energy and solar tracking, food, and paper industries, stage lifting platforms, aerospace testing, and positioning, etc.

3. Importance in the current context

• Industry 4.0 & automation: SWL jacks are easily integrated with servo motors and encoders for closed-loop control and multi-axis synchronization. This enhances precision and repeatability, laying the groundwork for condition monitoring and predictive maintenance.

• Operational safety: The mechanical self-locking mechanism mitigates the risk of load-dropping during power outages. With fewer sensitive components (no hoses, valves, or oil), it reduces the need for a secondary braking system.

• ESG & clean work environments: No oil leaks and low noise make it suitable for industries requiring sanitation and cleanliness (food, paper, pharmaceuticals).

• Favorable total cost of ownership (TCO): No need for pumps, reservoirs, or piping like hydraulic systems, leading to quick installation, minimal maintenance, and standardized modular parts, which reduces downtime.

• High customization: A variety of strokes, gear ratios, connection types, and mounting options are available. They operate reliably within a wide temperature range of −20°C to +100°C for both intermittent and continuous duty cycles.

II. Specifications

1. Basic specification table

2. Explanation of key parameters

• SWL (Safe Working Load): The screw jack's safe load capacity, ranging from 2.5 tons to 120 tons, making it suitable for applications from light-duty to heavy industrial use.

• Self-locking function: Thanks to the worm gear mechanism, the load is held in a fixed position even when power is cut. This eliminates the need for a secondary braking system.

• Customizable travel stroke: The stroke can be designed to specific requirements, from a few centimeters to several meters, offering high flexibility for various mechanical applications.

• Operating speed: With a max. Input speed of 1,500 rpm and a max. Lifting speed of 2.7 m/min, it can meet both slow, precise positioning needs and faster lifting requirements.

• Temperature range: Operating stably from −20°C to +100°C, it is reliable in harsh environments like cold outdoors or hot metallurgical workshops.

• Diverse mounting configurations: Options like threaded ends, clevis ends, flanges, and ball joints make it easy to integrate into many different machine layouts.

3. Comparison with Hydraulic & Pneumatic Systems

[ Conclusion of the comparison:

• SWL Screw Jack: Suitable for small to large loads (≤120 tons) that require safety, precision, cleanliness, low maintenance, reasonable cost, and easy automation integration.

• Hydraulic/Pneumatic: Better suited for super-heavy loads or extremely high-speed applications, but with higher costs, more complex maintenance, and risks of leaks.

Therefore, the SWL Series Worm Gear Screw Jack provides a safe, durable, and environmentally friendly solution for lifting and positioning, making it an optimal choice in many modern industries.

III. Key features, advantages, and applications

1. Key features

• Compact & lightweight design: The SWL Series is optimized for size and weight, making it easy to install in confined spaces. This is especially useful in production lines, stage lifting systems, or medical equipment, where a compact, space-saving design is critical.

• High load capacity (2.5 – 120 tons): Engineered to industrial standards, this series meets a wide range of needs, from lifting light loads in manufacturing to handling heavy-duty tasks in metallurgy and aerospace.

• Safe self-locking function: Thanks to the worm gear drive mechanism, the SWL can hold the load in place when operation stops. This eliminates the risk of unexpected load drops, ensuring safety for both operators and equipment.

• Customizable travel stroke: Customers can request a specific stroke height to suit their application, from a few centimeters to several meters, ensuring flexibility and personalization for each project.

• Diverse mounting & output configurations: With options like threaded ends, clevis, flanges, and ball joints, the product easily integrates into various structural designs without major modifications.

• Stable operating speed: A maximum lifting speed of 2.7 m/min not only meets speed requirements but also ensures high precision in every movement.

• Integration with servo/electric motors: Supports modern automation systems, allowing for the synchronized lifting of multiple screw jacks.

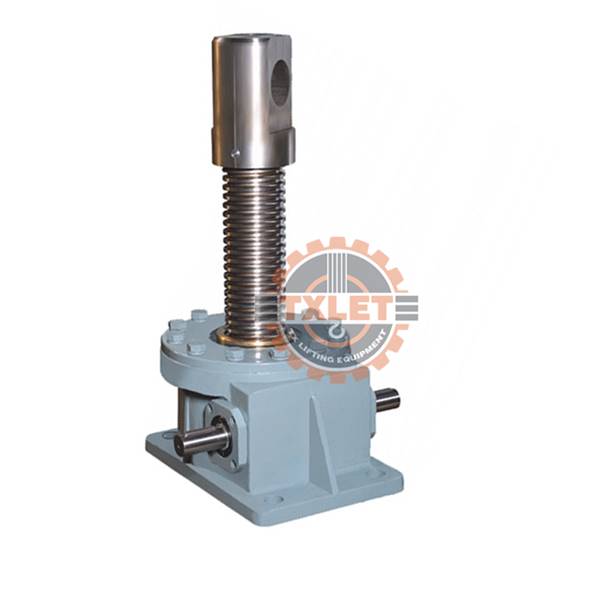

Flexible clevis end output configuration, ideal for connecting to other machine components

2. Key advantages

• Absolute safety: The self-locking function holds the load even during a power outage, minimizing risk. This is a significant advantage over hydraulic or pneumatic systems, which can fail due to pressure leaks.

• High durability & low maintenance: With a robust design, quality materials, and simple maintenance requirements (mainly lubrication), the SWL can operate continuously for extended periods without major issues.

• Environmentally friendly: It doesn't use hydraulic fluid, so there's no risk of spills or pollution. Its low operating noise also makes it suitable for high-hygiene environments like food processing and medical facilities.

• Cost-effective: It doesn't require complex pump systems, valves, or piping like hydraulic systems. Lower operating and maintenance costs also provide long-term economic benefits.

• High precision: The travel stroke can be adjusted with millimetric precision. When integrated with a servo motor or PLC, the screw jack can perform complex, synchronized movements.

• Flexible in diverse environments: It operates stably in a wide temperature range from −20°C to +100°C, making it suitable for both cold outdoor conditions and hot metallurgical workshops.

• Long lifespan: Thanks to its durable worm gear structure and excellent heat dissipation, the SWL operates reliably for many years without frequent replacement.

3. Practical applications

The SWL Series Worm Gear Screw Jack is used in many industrial and civilian fields thanks to its versatility:

• Machine manufacturing & precision engineering: Used for lifting, lowering, and adjusting the position of machine parts, fixtures, and molds, ensuring high precision in production.

• Metallurgy & heavy industry: Lifts and rotates heavy loads in steel furnaces, mining operations, or large conveyor systems.

• Energy & solar power: Applied in solar tracking systems to optimize energy collection. It also plays a role in adjusting the position of wind turbines or other renewable energy equipment.

• Aerospace & defense: Used in test stands, for positioning aerospace components, and in lifting systems within the defense technology sector.

• Food & paper industries: Suitable for environments requiring cleanliness, with no oil or leaks. It helps lift modules in food processing lines or paper manufacturing machinery.

• Stage & events: Supports the lifting and lowering of stage platforms, lighting systems, curtains, and other modern stage equipment, ensuring smooth and safe operation.

• Other applications: Industrial doors, packaging systems, assembly lines, and medical and laboratory lifting platforms.

[ With a combination of advanced technical features, superior advantages, and a wide range of applications, the SWL Series Worm Gear Screw Jack is a top choice for businesses seeking a safe, durable, environmentally friendly, and cost-effective lifting solution.

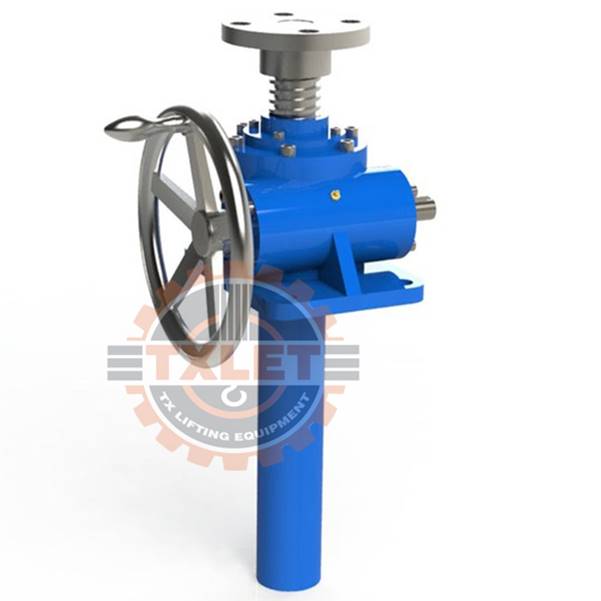

Manual handwheel option for applications where a motor is not required, highlighting the product's versatility

IV. Why You Should Choose the SWL Series Worm Gear Screw Jack

In today's mechanical and industrial landscape, selecting the right lifting equipment doesn't just determine production efficiency—it directly impacts operational safety and long-term costs. Among various solutions, the SWL Series Worm Gear Screw Jack stands out due to its perfect combination of safety, durability, performance, and optimal cost.

1. Detailed Comparison with Other Solutions

a. Compared to Hydraulic Systems

• Safety: SWL screw jacks have an inherent mechanical self-locking capability, keeping the load stationary even during a power outage. Hydraulic systems, in contrast, risk load drop due to pressure leaks.

• Clean operation: By not using hydraulic fluid, SWL jacks eliminate the risk of oil spills that could contaminate the environment or compromise hygiene in food and pharmaceutical industries.

• Operating costs: There's no need for pumps, hoses, and complex valve systems, which significantly reduces initial investment and maintenance costs.

• Durability: The simple construction leads to fewer failures compared to hydraulic systems, which rely on many sensitive components.

b. Compared to Pneumatic Systems

• Load capacity: SWL jacks can lift heavy loads to 120 tons, while pneumatic systems are only suitable for small loads.

• Precision: SWL screw jacks provide precise stroke control and stable load positioning, whereas pneumatic systems often fluctuate and struggle to hold a fixed position.

• Energy efficiency: SWL jacks only consume power during operation, while pneumatic systems require a compressor to run continuously, leading to higher electricity consumption.

c. Compared to other Screw Jacks

• Ball Screw Jacks: While highly efficient, they often require an additional brake for safety, whereas the SWL has a built-in self-locking mechanism. Additionally, SWL jacks can handle larger loads (up to 120 tons), are more cost-effective, and are easier to maintain.

• Bevel Gear Jacks: These may offer faster lifting speeds, but they cannot match the safety and high load capacity of the SWL series.

2. Core value the SWL delivers to businesses

• Absolute safety: The self-locking mechanism ensures the load will not drop when the power is off.

• Cost savings: Reasonable initial investment, low maintenance, and reduced long-term operating costs.

• Application flexibility: Can be installed vertically, horizontally, or at an angle; easy to connect and synchronize in multi-axis setups.

• Integration capability: Compatible with AC motors, servo motors, and PLC control systems, making automation simple.

• Environmental friendliness: Operates without oil, runs quietly, and has low noise levels.

3. Strategic benefits of choosing SWL

By investing in the SWL Series Worm Gear Screw Jack, a business gains more than just a lifting device; it acquires a long-term, sustainable solution that:

• Enhances productivity through stable and precise operation.

• Increases safety for operators and the work environment.

• Saves budget in the long run with low maintenance costs.

• Synchronizes with Industry 4.0 technology, meeting the demands of modern production.

V. Making the right choice: SWL and our recommendations

The SWL Series Worm Gear Screw Jack offers businesses a lifting solution that is safe, durable, cost-effective, and environmentally friendly. With a load capacity ranging from 2.5 to 120 tons and a compact, flexible design, this product line perfectly meets the diverse needs of many industries: from machine manufacturing, metallurgy, and energy to stage performance.

Selection guide

• Small loads (2.5 – 20 tons): Suitable for small to medium-sized machinery systems.

• Medium to large loads (20 – 120 tons): Optimized for heavy industrial applications.

• Special applications (clean or corrosive environments): We recommend choosing a stainless steel SWL model or one with an anti-corrosion coating.

• Automation needs: Combine the SWL with a servo motor and PLC to create a highly accurate and synchronized lifting system.

About TXLET

TXLET is a leading provider of lifting and mechanical drive solutions, with strengths in:

• Diverse Product Portfolio: From screw jacks, geared motors, electric wire rope hoists, and industrial gearboxes to hydraulic grabs.

• Quality Commitment: All our products meet international standards, ensuring reliable operation and absolute safety.

• Expert Technical Team: Ready to provide consultation on model selection, technical drawings, and support throughout the equipment's lifecycle.

• Dedicated Customer Service: Fast delivery, clear warranty policies, and attentive after-sales service.
