CD1/MD1 Wire Rope Electric Hoist – Compact, Versatile Lifting Equipment for Multi-Industry Applications

I. General Introduction

1. What is the CD1/MD1 Wire Rope Electric Hoist?

The CD1/MD1 wire rope electric hoist is an electric lifting device that uses steel wire rope as the main lifting medium. It is designed to be mounted on single-girder overhead cranes, jib cranes, gantry cranes, or to operate independently as an electric winch with minor modifications. This product stands out for its simple structure, stable performance, and cost-effective price, making it a popular choice in factories, warehouses, mining sites, ports, and storage areas.

The hoist is available in a wide lifting capacity range from 0.25 tons to 32 tons, with lifting heights from 6 meters to 45 meters, and a working duty of A4, meeting the lifting requirements from light to medium loads in various industrial sectors. The CD1/MD1 hoist not only reduces manual labor but also helps improve production efficiency and optimize operational costs.

2. Outstanding Features of the CD1/MD1 Wire Rope Electric Hoist

✅ Compact design – Easy installation and maintenance

The entire system is manufactured in a modular, compact structure, making it easy to install in new setups or integrate into existing lifting systems. Its simple construction allows for quick maintenance, inspection, and part replacement, saving both time and effort.

✅ Two product variants tailored to different needs

CD1 – Single standard lifting speed

The CD1 model operates at a single standard speed, ideal for regular lifting tasks where precision is not a major concern. It’s a perfect fit for simple, continuous, and stable lifting operations.

MD1 – Dual speed operation for flexibility and precision

The MD1 model features two lifting speeds – fast and slow. The slow speed mode allows precise load positioning, which is essential for tasks such as machine alignment, mold installation, and handling delicate materials. This makes the MD1 particularly suitable for machinery manufacturing, mold casting, and equipment maintenance.

 ✅  High adaptability in various environments

The hoist can be mounted on electrically operated overhead cranes, mobile gantry cranes, fixed jibs, or used independently at construction sites as a winch after some configuration adjustments. This flexibility allows users to deploy the hoist in diverse working environments without the need for complex lifting equipment.

 ✅  Stable, durable, and long-lasting performance

Key components such as motor, gearbox, drum, and brake are made from high-quality materials and precisely machined, ensuring quiet operation, high load endurance, and long service life. The robust design minimizes machine downtime and reduces long-term maintenance costs.

II. CD1 vs. MD1 Electric Hoists: Which One Suits Your Needs?

1. Basic technical specifications

The CD1/MD1 Electric Wire Rope Hoist series is designed according to Chinese and international lifting standards. It is suitable for single-girder cranes, double-girder beams, monorail systems, and customized lifting setups. The following table shows the standard specifications:

Note: The MD1 hoist features dual lifting speeds—standard and low speed—ideal for precise positioning during heavy-duty or delicate assembly tasks.

2. Detailed comparison between CD1 and MD1 models

To help users select the right model, here's a side-by-side comparison of the key differences:

Summary:

CD1 is suitable for standard lifting tasks that require simplicity and cost-effectiveness.

MD1 is the ideal choice for precise operations where speed control and safety are crucial.

3. Recommended use cases

When selecting between the CD1 and MD1 Electric Wire Rope Hoists, understanding your actual application environment is crucial. Each model offers unique advantages tailored to specific industries, lifting requirements, and operational expectations.

 Choose CD1 Electric Hoist if:

• You need a standard-speed lifting solution with consistent performance.
• Your operations involve general material handling with no demand for speed variation.
• You are working in warehouses, logistics centers, or basic workshops with a limited budget.
• You prioritize cost-efficiency, simplicity, and long-term durability.
• Your workflow can tolerate the typical single lifting speed.

 Choose MD1 Electric Hoist if:

• Your application requires higher precision, such as assembly lines, mechanical workshops, or sensitive load handling.
• You need dual-speed functionality to switch between fast and slow lifting modes for safety and positioning accuracy.
• You operate in environments where delicate or irregular-shaped loads need to be lifted carefully.
• You want more control during load positioning to avoid shocks or damage.
• Your project involves installation work, maintenance, or modular construction where smooth lifting is critical.

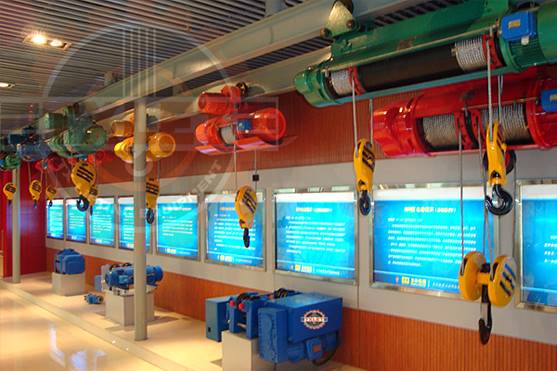

Wire Rope Hoist Display at TXLET Showroom

III. Operating principle of CD1 & MD1 Electric Wire Rope Hoists

Both CD1 and MD1 Electric Wire Rope Hoists operate using a similar lifting mechanism that ensures stable, vertical movement of heavy loads. Their construction includes a drum, steel wire rope, electric motor, reduction gearbox, and lifting hook—each working in synergy for efficient load handling.

Working process overview:

Motor activation: The hoist is powered by an electric motor, which drives the drum through a gearbox system.

CD1 hoist: single-speed motor.

MD1 hoist: dual-speed motor (high and low speed modes).

Drum & rope winding: As the motor turns the drum, the steel wire rope is wound or unwound, lifting or lowering the hook accordingly. The rope maintains tension to ensure safe and precise motion.

Hook Movement: The hook, attached to the rope end, moves vertically to lift or lower the load. The MD1 hoist allows smoother control during delicate operations due to its slow-speed mode.

Braking System: A built-in electromagnetic or mechanical brake ensures the load stays securely in position when the hoist stops.

Key differences in operation:

✅ Note: The dual-speed function of the MD1 hoist is especially useful when lowering loads that require careful placement or fine adjustments.

IV. Advantages & Applications of CD1/MD1 Electric Wire Rope Hoist

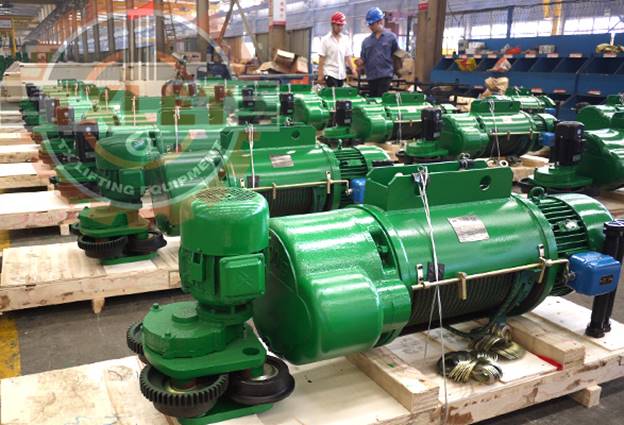

Assembly Line – Industrial-Grade Hoist Production

1. Outstanding advantages of the CD1/MD1 model:

Reliable and stable performance: The CD1/MD1 electric hoist is renowned for its long-term durability and consistent lifting performance, even under intensive working conditions.

Compact design – Easy to install: Its compact, space-saving structure makes it ideal for small to medium-sized workshops or areas with limited headroom.

Versatile speed options (Single/Double): The MD1 model offers dual lifting speeds (fast and slow), which provides better control over delicate operations, while the CD1 model features single-speed lifting for standard tasks.

High lifting capacity – Wide range: Available in a variety of lifting capacities (0.5–20 tons) and lifting heights (up to 30 meters), suitable for both light-duty and heavy-duty applications.

Low maintenance – High efficiency: Simple structure, high transmission efficiency, and easily replaceable components reduce maintenance costs over time.

Flexible mounting: Can be mounted on single-girder cranes, straight or curved I-beams, and used in conjunction with suspension cranes or fixed supports.

2. Practical applications of CD1/MD1 Electric Wire Rope Hoist

With its flexible lifting capabilities, compact design, and stable performance, the CD1/MD1 Electric Wire Rope Hoist proves to be a reliable solution across a wide range of industries—from manufacturing and mechanical workshops to construction, logistics, and marine sectors.

 Manufacturing & Assembly plants

✔️Lifts machinery, molds, and components in production lines

✔️Transfers finished or semi-finished products between workstations

✔️Commonly used in mechanical factories, electronics assembly, and industrial equipment production

 Construction projects

✔️Handles lifting of steel beams, scaffolding, mechanical parts, and construction materials

✔️Ideal for residential, infrastructure, and steel-frame building projects

✔️Optimized when paired with mini gantry cranes or single-girder movable beams

 Mechanical – Welding – Machining workshops

✔️Hoists heavy machine parts such as shafts, gears, and steel plates

✔️Integrates well with jib cranes, column-mounted hoists, or I-beam trolleys

✔️Increases productivity, reduces manual labor, and improves workplace safety

 Warehousing & Logistics

✔️Efficiently loads and unloads cargo, pallets, and machinery

✔️Operates effectively in multi-story warehouses, logistics hubs, and cold storage

✔️ Installed on monorails, long single girders, or semi-gantry cranes

 Energy, Mining & Metallurgy

✔️Transfers heavy equipment, generators, and power storage modules

✔️Lifts materials in mines, engine rooms, and electromechanical workshops

✔️Performs reliably in harsh conditions thanks to IP44/IP54 protection ratings

 Shipbuilding & Port facilities

✔️Utilized in shipyards, engine maintenance areas, and onboard lifting operations

✔️Lifts marine components, compressors, containers, or vessel modules

✔️Perfect for tight spaces or fixed overhead beam systems

 Whether you’re operating in a production facility, logistics warehouse, or outdoor construction site, the CD1/MD1 Electric Wire Rope Hoist delivers a safe, adaptable, and cost-effective lifting solution!

V. Maintenance & Safe Operation Guide for CD1/MD1 Electric Wire Rope Hoists

1. Safe operation guidelines

Pre-operation inspection: Before each shift, operators should inspect the wire rope, lifting hook, brake system, limit switches, control pendant, power supply, and the surrounding work area. Do not operate the hoist if any faults or irregularities are detected.

Never exceed the rated load: Each CD1/MD1 model is rated for loads ranging from 0.5 tons to 20 tons. Do not exceed this capacity to prevent equipment failure or serious accidents.

Use correct lifting techniques: Loads must be evenly balanced. The wire rope should not be twisted, tangled, or misaligned with the drum. Avoid side pulling, jerking movements, or using the hoist as a horizontal towing device.

Maintain a safe distance: Personnel must keep a safe distance from the lifting area and never stand under a suspended load. Emergency stop functions should be accessible to immediately cut power if needed.

Operate only by trained personnel: The CD1/MD1 hoist should be operated by individuals who have received proper training in material handling and hoisting equipment. Unqualified personnel must not be allowed to operate the hoist.

2. Regular maintenance instructions

Lubricate moving parts regularly: Apply lubricants to wire ropes, drums, gears, and bearings as per the manufacturer’s recommended schedule. This helps reduce friction, prevent wear, and extend the service life of the hoist.

Keep the hoist clean: After each work shift, wipe down the hoist to remove dust, grease, or debris. Check for foreign objects that may have entered the transmission components.

Inspect wire ropes periodically: Conduct regular inspections for signs of wear, corrosion, fraying, or deformation. Replace the rope immediately if any damage is found to avoid failure during lifting.

Maintain the brake system: Brakes are a critical safety feature. Inspect the brake pads for wear, check the responsiveness, and ensure the braking force is consistent to maintain safe operation.

Check electrical connections and contact points: Regularly inspect wiring, pushbuttons, limit switches, and electrical terminals. Repair or replace any loose, burnt, or damaged parts promptly.

Keep a maintenance log: Businesses should maintain a detailed logbook of operating hours, maintenance activities, and inspections to ensure timely servicing and avoid unexpected downtime.

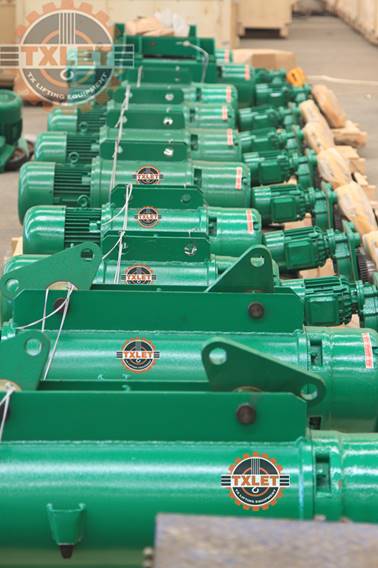

Electric Hoists Ready for Shipment

VII. Additional Information: About TXLET, FAQs, and Consultation Support

1. About TXLET – Your Trusted Lifting Equipment Partner

TXLET (Henan TX Lifting Equipment Co., Ltd.) is a reputable manufacturer with over a decade of experience in the design, manufacturing, and export of lifting equipment and mechanical transmission systems. We specialize in providing efficient, customized, and safe solutions for industrial lifting applications across various sectors.

Our key product lines include:

    Double Girder Overhead Crane – For high-capacity operations

    Electric Hydraulic Grab Bucket – Port & waste-handling solutions

    K Series Gearbox – Durable & efficient for power transmission

    SWL Screw Jack – Precise height control and heavy-duty support

With a commitment to international standards and customer satisfaction, TXLET continues to deliver innovative solutions to clients worldwide.

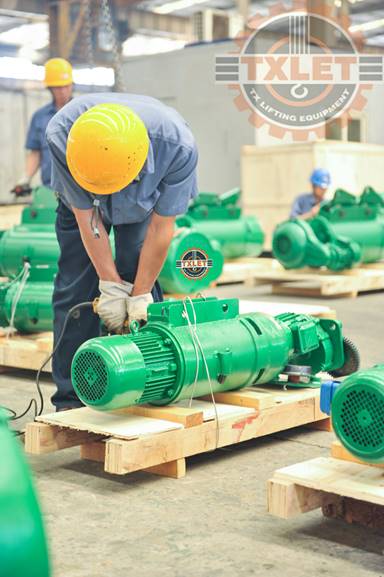

Final Inspection by TXLET Technicians

2. Frequently Asked Questions (FAQs)

Q1: How do I choose the right wire rope electric hoist for my application?

You need to consider parameters such as rated load capacity, lifting height, working class (duty cycle), voltage, mounting type, and specific working conditions. Our technical team can provide tailored advice based on your needs.

Q2: Do you offer installation or after-sales support?

Yes. TXLET provides installation guidance, operation manuals, and prompt technical support. Long-term spare parts supply and maintenance consultation are also available.

Q3: Can TXLET customize equipment based on project requirements?

Absolutely. We specialize in customized hoists, cranes, and lifting solutions based on customer drawings, specifications, and working conditions.

3. Contact TXLET for Tailored Lifting Solutions

Whether you're upgrading your factory, designing a new lifting system, or replacing outdated equipment, TXLET is ready to assist.

 Get in touch today to receive:

• Personalized recommendations
• Competitive quotations
• Technical drawings and datasheets
• Ongoing customer service

 Contact us now, and let's build a safer and smarter lifting system together!
