| Capacity | 16~50 Ton |
| Height | 6~30 m |
| Working class | M3, M4 |
| Ambient temperature | -20℃~45℃ |
| Application | Workshop, warehouse, steel market, port, and dock. |

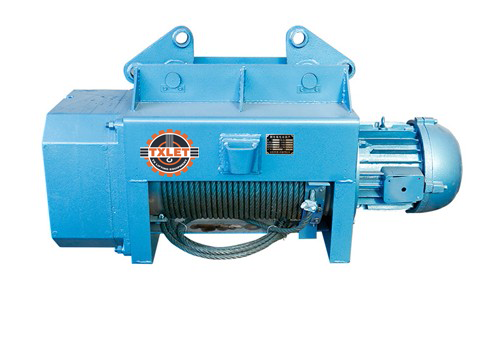

HC HM Type Large-Tonne Wire Rope Electric Hoist
The HC/HM electric wire rope hoist is a specialized lifting device engineered to handle large loads in demanding industrial environments. This product line includes two main models, offering flexibility and high efficiency for all production activities.
HC: Equipped with a single lifting speed, suitable for standard, continuous lifting operations.
HM: Features a dual-speed lifting with a 10:1 speed ratio, allowing operators to switch between fast lifting and slow, precise positioning.
With a lifting capacity ranging from 16 to 100 tons and a lifting height between 6 and 30 meters, the HC/HM hoists meet the operational requirements of factories, warehouses, and large-scale production facilities. The system consists of:
Wire rope hoisting mechanism: Uses high-strength steel wire rope, driven by a precision-machined drum and gearbox.
Traveling trolley mechanism: Integrates wheels and a drive motor for smooth horizontal movement along an I-beam or crane structure.
The hoist can be mounted independently on monorail beams or integrated into various crane systems, such as double-girder overhead cranes, gantry cranes, and cantilever cranes. Operators can choose between a wired pendant control and a wireless remote control for optimal flexibility and safety during operation.
In the era of Industry 4.0, where speed, performance, precision, and safety are prioritized, traditional lifting methods no longer meet the growing demands of industrial operations. Heavy-duty electric wire rope hoists, especially the HC/HM series, have become key solutions for modernizing factories and optimizing production processes.
The key benefits and roles of these hoists include:
Improved operational efficiency: Their ability to handle large, heavy loads quickly helps accelerate material handling and increase overall productivity.
Enhanced worker safety: Replacing manual lifting with remote-controlled equipment significantly reduces accident risks, especially when handling bulky or oversized items in harsh environments like ports or steel yards.
Professional and modernized operations: Implementing advanced hoisting systems like the HC/HM series reflects a company's technical capabilities and level of automation. This is an important factor in enhancing a company's reputation and attracting business partnerships.
Versatile application across industries: Thanks to their flexible design and customizable configurations, HC/HM hoists are suitable for various sectors, such as heavy machinery manufacturing, steel processing, container handling, and structural maintenance. For example, in the steel industry, these hoists safely and quickly move heavy steel coils, while in ports, they are used for efficient container loading and unloading.
In summary, the HC/HM electric wire rope hoist is not just a lifting device—it is a strategic investment that strengthens industrial capacity, ensures operational safety, and enhances long-term competitiveness.
The HC/HM heavy-duty electric wire rope hoists are engineered to meet the rigorous lifting requirements of heavy industries. With customizable load capacities, lifting heights, control systems, and mounting options, these hoists offer high flexibility, durability, and superior performance compared to standard lifting devices.
| Specification | Value / Options |
| Model code | HC (single speed) / HM (dual speed – 10:1 ratio) |
| Lifting capacity | 16 – 50 tons (expandable up to 100 tons) |
| Lifting height | 6 – 30 meters (customizable) |
| Duty class | M3 / M4 (based on usage frequency) |
| Ambient temperature | -20°C to +45°C |
| Control method | Pendant push-button / Wireless remote control |
| Mounting options | Single girder, double girder crane, gantry crane, jib crane |
| Travel mechanism | Integrated trolley for horizontal movement |
| Wire rope type | High-strength steel wire rope |
Selecting the correct duty class ensures long-term efficiency and optimal product lifespan.
These hoists can be installed on various structures, such as:
The integrated trolley enables smooth and accurate horizontal movement along the beam or rail.
Designed to perform reliably in ambient temperatures from -20°C to +45°C, suitable for:
| Criteria | HC/HM (Heavy-Duty Rope Hoist) | CD1/MD1 (Standard Wire Rope Hoist) | Electric Chain Hoist |
| Lifting capacity | 16 – 100 tons | 0.5 – 10 tons | 0.5 – 5 tons |
| Lifting height | 6 – 30 m (customizable) | 6 – 20 m | 3 – 12 m |
| Lifting speed | Single speed (HC) or dual (HM) | Single (CD1) or dual (MD1) | Slower speed, limited options |
| Duty class | M3 / M4 | M3 | M2 / M3 |
| Hoisting mechanism | Steel wire rope + drum | Steel wire rope + drum | Steel chain + sprocket |
| Application | Heavy industry, ports, steel yards | General workshops, light-duty lifting | Repair work, maintenance, and light use |
| Installation flexibility | Wide: cranes, gantries, custom setups | Moderate: monorails, light-duty cranes | Fixed point or light monorail |
| Cost level | Higher – aligned with performance | Moderate | Lower – limited to light loads |
[ With superior advantages in heavy lifting capacity (16-100 tons), high durability (M3/M4 duty class), and installation flexibility, the HC/HM series is the ideal choice for companies looking for a reliable, high-performance lifting solution that meets the most demanding requirements of heavy industry.

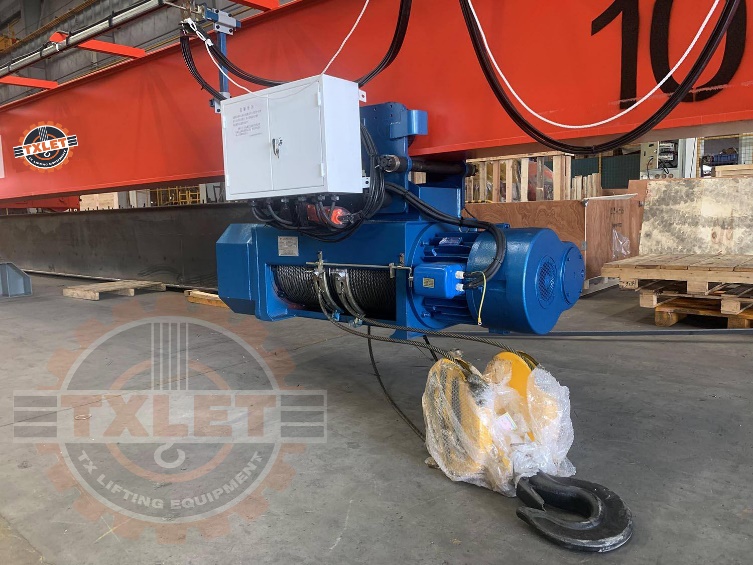

Details of the robust motor and gearbox for heavy-duty lifting
The HC/HM wire rope electric hoist is comprised of the following key components:
Lifting mechanism: Includes the electric motor, gearbox, wire rope drum, wire rope, and hook block. This is the primary system responsible for lifting and lowering loads.
Traveling mechanism (Trolley): Consists of wheels, a traveling motor, and a frame, allowing the hoist to move horizontally along the beam or rail.
Control system: Operated via a wired pendant push-button or a wireless remote control.
Safety devices: Features include limit switches, an electromagnetic brake, and overload protection sensors to ensure safe operation.
The operational sequence of the HC/HM hoist is as follows:
Command reception: Control signals are sent from the pendant or remote control to the main control unit.
Lifting activation: The lifting motor receives the command, transmitting power through the gearbox to generate a high lifting force at the required speed.
Load movement: The wire rope drum rotates, winding or unwinding the rope to move the hook block up or down.
Horizontal travel: Simultaneously, the traveling motor operates to move the entire hoist along the beam, transporting the material to the desired position.
Braking system: When the operator stops the action or in the event of a power failure, the braking system automatically engages, securely holding the load in place.
The operating principle of the HC/HM hoist is optimized for heavy industry, with the following key advantages:
High Load capacity: The motor and gearbox are specifically designed to handle high rope tension, ensuring stable and safe lifting of heavy loads.
Dual-speed option (HM model): Allows for flexible switching between high and low lifting speeds, meeting the need for high-precision load positioning.
Continuous operation: Optimized cooling and lubrication systems ensure the equipment performs reliably in high-intensity industrial environments.
Superior safety: Limit switches, automatic braking, and overload sensors work in tandem to provide comprehensive protection for both the equipment and the operator.

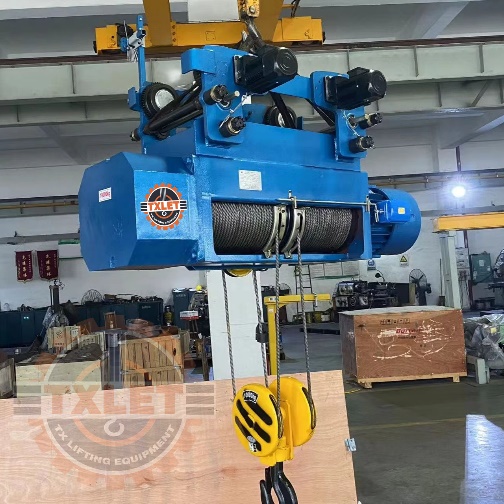

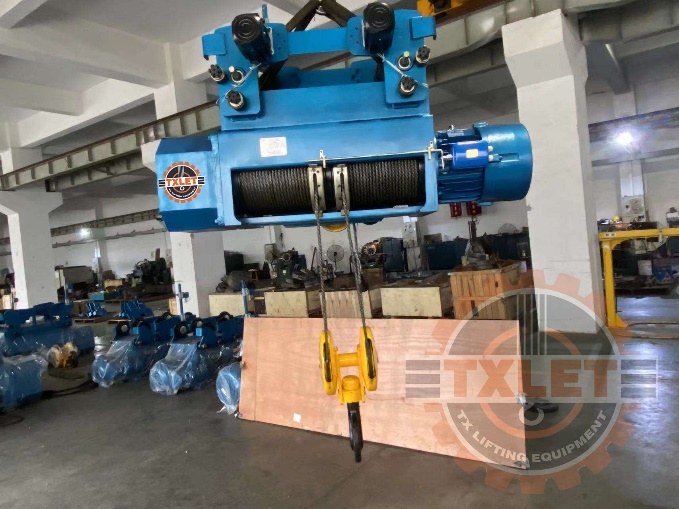

HC HM hoist demonstrating its high lifting capacity in a factory
The HC/HM series is a strategic asset for any heavy-duty operation, offering a clear competitive edge with the following features:
Ultra-high Lifting capacity: Capable of handling loads from 16 tons to 100 tons, this hoist is a go-to solution for the most demanding industrial lifting tasks.
Flexible and precise operation: The HM model's dual-speed lifting allows for rapid movement of unloaded hooks and offers fine-tuned control when positioning heavy loads, minimizing the risk of accidents and damage.
Robust and durable construction: Built from high-quality alloy steel, these hoists are designed to withstand continuous heavy loads and operate reliably in harsh working environments.
Versatile installation: The HC/HM hoist's design allows it to be seamlessly integrated into a wide range of systems, including double-girder cranes, gantry cranes, semi-gantry cranes, and jib cranes, ensuring adaptability to any facility layout.
Comprehensive safety system: Equipped with electromagnetic brakes, limit switches, and optional overload protection, the hoist provides a robust safety net, protecting both your equipment and your personnel.
The HC/HM type large-tonne wire rope electric hoist is a crucial tool across various sectors, significantly boosting efficiency and safety. Its real-world applications include:
Steel & metallurgy: Used to move heavy steel coils, billets, and molds, which helps to optimize production and ensure worker safety in high-risk areas.
Ports & docks: Essential for loading and unloading oversized cargo, special containers, and large machinery, which helps streamline logistics and reduce turnaround times.
Warehousing & logistics: Handles heavy goods that are too large or heavy for standard forklifts or smaller lifting equipment, which makes it central to modern, efficient material handling.
Mechanical & machine manufacturing: Facilitates the assembly and movement of large equipment and structural components with high precision, which is critical for quality and speed.
Energy sector: Transports heavy turbine equipment, generators, and large-scale power infrastructure components during construction and maintenance.
Choosing the HC/HM hoist is a strategic investment that not only improves operational efficiency but also lowers maintenance costs and reduces project timelines for large-scale operations where safety and precision are critical.

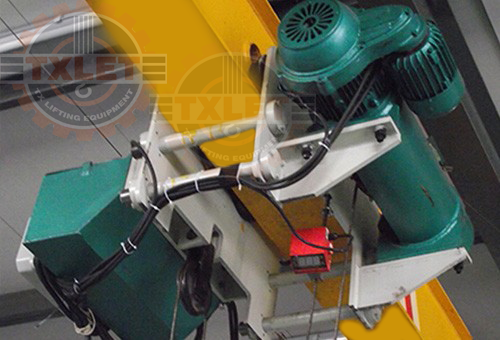

The hoist's integrated trolley system for horizontal movement on a double-girder crane
To make an informed and effective investment decision, consider the following key factors:
Load and speed: Precisely measure the typical and maximum load you need to lift. For jobs requiring high precision and flexibility, choose the HM model (dual speed). If you only need continuous lifting at a single speed, the HC model is a cost-effective and efficient choice.
Lifting height: Ensure the lifting height of the hoist is a perfect match for your workspace. Selecting an excessively high range can lead to unnecessary energy consumption and higher investment costs.
Wireless remote control: This is ideal for hazardous environments, long-distance operation, or when maintaining a safe distance is critical.
Pendant control: This is convenient for close-range operation and allows the operator to directly observe the load.
For humid, dusty, or extreme-temperature conditions, prioritize versions with corrosion-resistant, dustproof, and waterproof features, along with a high IP protection rating.
Choose a reputable manufacturer to ensure product quality, durability, and reliable performance.
A good warranty and maintenance service will help maintain stable performance and reduce the risk of downtime, ensuring a long-term return on your investment.
Pro Tip: Always consult with technical experts before purchasing to ensure the hoist is fully compatible with your existing crane or lifting system.
Q1: What's the main difference between the HC and HM models?
HC: This model has a single lifting speed, making it ideal for standard, continuous lifting jobs where speed isn't a primary concern.
HM: This model features a dual lifting speed with a 10:1 ratio, which is perfect for tasks that require both quick lifting and precise, slow positioning of heavy loads.
Q2: Can I lift more than the rated capacity?
No, you should never lift more than the rated capacity. Overloading the hoist creates serious safety risks, can cause permanent damage to the equipment, and will void your warranty.
Q3: Can this hoist be installed on my existing crane?
Yes, it's possible. However, a qualified technician must first inspect your current crane system to check for compatibility with the rail dimensions, power supply, and structural integrity.
Q4: Is this hoist suitable for outdoor use?
Yes, but we recommend choosing a weather-resistant and anti-corrosion version to ensure long-term durability and reliable performance in outdoor environments.
Q5: How often does the hoist need maintenance?
For optimal performance and safety, the hoist should be maintained at least once or twice a year. More frequent inspections are necessary for hoists used continuously or in harsh working conditions.
