Revolutionizing Material Handling: A Deep Dive into the MW5 Series Round Lifting Electromagnet

I. General introduction

1. Industrial context and demands

For decades, the steel, metallurgy, and manufacturing industries have been pillars of the global economy. This comes with the constant need to handle, load, and transport massive volumes of ferrous materials, such as steel plates, billets, beams, iron ingots, and scrap metal.

In a modern steel mill, hundreds of tons of raw materials and semi-finished products must be moved continuously between different production stages every day. At a scrap yard, collecting and sorting tens of tons of metal requires equipment that can work non-stop, ensuring both speed and safety. Meanwhile, at seaports and warehouses, loading and unloading steel coils, plates, or containers filled with ferrous materials demands highly efficient solutions that can operate quickly.

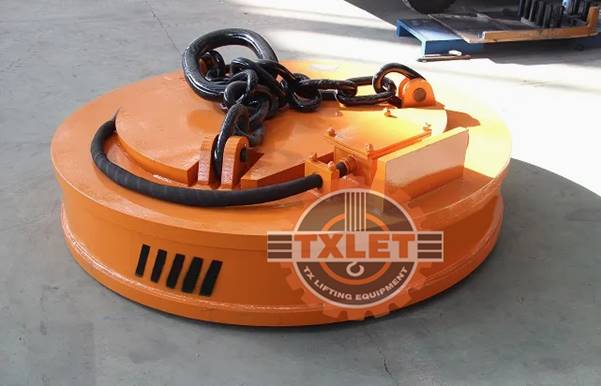

MW5 Series Round Lifting Electromagnet features a robust, magnetically sealed design, ensuring maximum safety and performance.

Relying on traditional mechanical equipment like grabs or clamps often presents businesses with several limitations:

• High labor costs due to slow, less automated operations.

• Expensive maintenance as mechanical parts are prone to wear and tear.

• Low safety levels, with a high risk of material spillage during lifting.

• Sub-optimal production efficiency makes it difficult to meet the speed requirements of modern production lines.

Therefore, the inevitable trend for industrial companies is to switch to electromagnetic lifting solutions—a new technology that offers superior efficiency, cost savings, and enhanced safety.

2. Introducing the MW5 Series Round Lifting Electromagnet

Among the current range of electromagnetic lifting magnets, the MW5 Series Round Lifting Electromagnet is recognized as one of the most popular and reliable choices. The device operates on the principle of a magnetic field: when an electric current flows through its coil, the magnet generates a powerful attractive force, allowing it to securely lift and hold ferrous materials. When the power is turned off, the material is released quickly and precisely.

Key features of this product series include:

• Optimal round design, which easily adapts to various types of materials.

• Wide range of diameters: from 500 mm to 3000 mm, suitable for both compact and heavy industrial applications.

• High lifting capacity: capable of lifting to 28,000 kg, meeting the needs for handling large volumes of steel.

• High-temperature option: a specialized version can work with red-hot steel at temperatures up to 700°C—perfect for steel mills and foundries.

• Durable, sealed, and welded construction ensures high durability and stable operation in harsh environments.

• Low maintenance costs due to a lack of moving mechanical parts, reducing the risk of failure.

With its combination of powerful performance, flexibility, and outstanding durability, the MW5 is more than just a lifting device; it is a strategic solution that helps businesses boost productivity, save on labor, and optimize operational costs.

II. Key features & advantages

1. Main features of the MW5 Series Round Lifting Electromagnet

The MW5 Series is engineered to meet the demands of heavy industrial environments. Its key technical specifications include:

• Flexible operating voltage:

  • DC 220V (Standard).

  • DC 290V/200V (Strong excitation, for enhanced lifting force).

  • DC 350V/290V/200V (Over-excitation mode, boosts lifting capacity by ~10%).

• Wide diameter range: From φ500 mm to φ3000 mm, suitable for both small-scale applications and large-volume steel handling.

• Working duty cycle: 60% or 75%, ensuring continuous operation in high-output environments.

• Rated current: Ranging from 15A to 226A, depending on the magnet size.

• Maximum lifting capacity: Can reach up to 28,000 kg (28 tons).

• Coil material: Choice of copper or aluminum, depending on performance and cost requirements.

• Cooling system: Designed for cool operation, preventing overheating during prolonged use.

• Flexible installation: Can be used with overhead cranes, gantry cranes, or mounted on excavators.

These specifications demonstrate that the MW5 is a versatile and powerful magnet capable of handling a wide range of harsh working conditions.

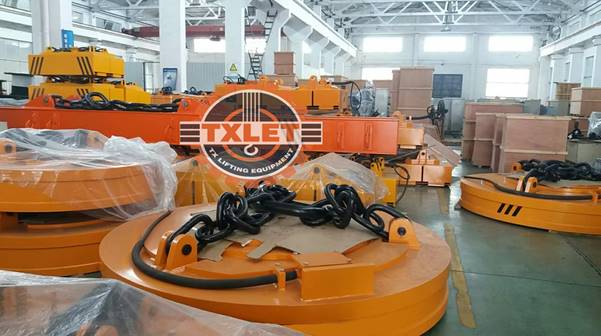

With a wide range of models readily available in stock, TXLET guarantees quick delivery to meet our clients' electromagnetic lifting magnet needs.

2. Outstanding advantages of the MW5 Series

a. Robust construction – high durability

The MW5 is constructed from high-quality alloy steel, fully sealed and welded to be vibration- and crack-resistant. This ensures stable operation even with continuous use in high-impact environments.

b. Exceptional heat resistance

• Class H insulation allows the device to withstand high temperatures.

• A specialized heat-resistant version can lift hot steel to 700°C, making it ideal for steel mills and foundries.

c. Deep magnetic field – strong suction force

The deep magnetic field design allows the magnet to penetrate deep into material piles, lifting even uneven scrap (steel shavings, fragments, short billets). This minimizes material waste and maximizes operational efficiency.

d. Saves time & effort

Compared to traditional mechanical grabs, the MW5 can collect, lift, and release materials quickly with a simple on/off switch. This helps businesses significantly save time, labor, and operational costs.

e. Low maintenance – cost-effective

With few moving mechanical parts, the MW5 reduces the risk of breakdowns. It also features a quick-release connector, allowing for rapid replacement and maintenance when needed.

f. Versatile design – adapts to various conditions

In addition to the round shape, the MW5 series also comes in square and rectangular variants, suitable for different types of materials and workspaces. The device is also designed to withstand a wide range of climates, from hot and humid to dry and cold, ensuring long-term stability.

[ With its combination of modern technical features and outstanding operational advantages, the MW5 Series Round Lifting Electromagnet stands as one of the most efficient, durable, and cost-effective lifting devices available today. It not only meets the material handling needs of standard production environments but also proves superior in demanding settings like steel mills, high-capacity scrap yards, and busy seaports.

III. Technical specifications & comparison

1. Basic technical specifications of the MW5 Series

[ This table shows that the MW5 series offers a wide variety of sizes and lifting capacities, from a compact 700 mm model to a large-scale 3000 mm model, meeting almost all needs in steel mills, scrap yards, and ports.

2. Comparing the MW5 Series with other lifting magnets

Conclusion: The MW5 clearly surpasses other options in terms of lifting capacity, durability, collection efficiency, and application flexibility. Mechanical grabs remain suitable for outdoor construction where non-ferrous materials like wood and stone need to be handled.

IV. Applications of the Round Lifting Electromagnet – MW5 Series

1. Steel mills and metallurgy

The MW5 Series is widely used in steel mills to lift and move scrap steel, steel plates, billets, or iron ingots. Thanks to its powerful magnetic force, the device significantly shortens loading and unloading times while minimizing the risk of material damage compared to traditional mechanical methods.

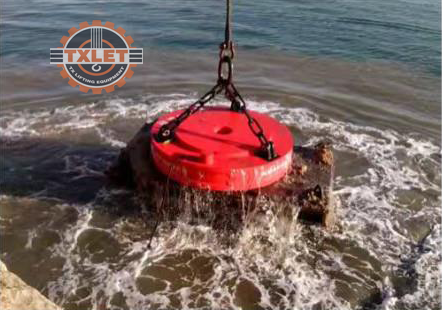

The MW5 Series operates reliably in all harsh conditions, including wet and saltwater environments, thanks to its sealed construction and superior material quality.

2. Scrap yards and metal recycling

In scrap yards, the sorting and transportation of ferrous metal occur continuously. The MW5 allows for the rapid collection of large quantities of steel scrap, iron balls, metal shavings, or filings in a single lift, providing maximum support for the recycling process.

3. Seaports and warehouses

In port and warehouse handling areas, the MW5 lifting magnet helps manage heavy-duty steel plates, coils, and metal billets in large volumes. The device can be mounted directly onto overhead cranes, gantry cranes, or excavators, ensuring flexible operation in a wide space.

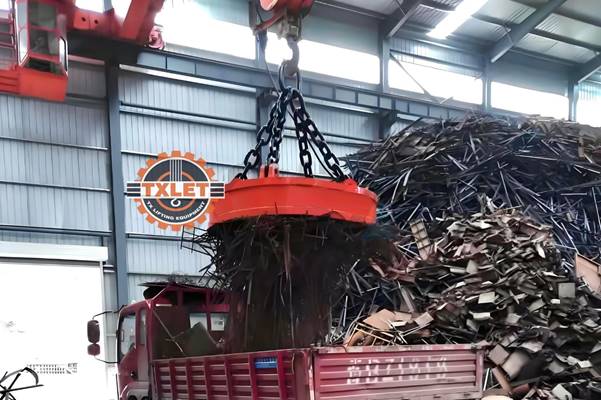

Accelerate scrap collection with the MW5, lifting a large volume in a single operation to optimize operational efficiency and cut costs.

4. Mechanical manufacturing and metal processing

In manufacturing workshops, the lifting magnet facilitates the organization and movement of heavy steel materials, thereby reducing manual labor and enhancing safety. Its easy-to-install design allows the MW5 to be integrated into many modern production lines.

5. High-temperature environments

With heat-resistant versions capable of withstanding temperatures up to 700°C, the MW5 Series is a perfect fit for the metallurgical industry, where metal materials are often in a red-hot state after heating or hot rolling processes. This feature ensures continuous operation without compromising the device's lifespan.

[ The MW5 Series Round Lifting Electromagnet is a versatile device suitable for a wide range of working environments, including steel mills, scrap yards, seaports, and manufacturing workshops, providing optimal flexibility and efficiency for businesses.

V. Why choose the Round Lifting Electromagnet – MW5 Series?

1. Outstanding advantages

• Powerful, stable lifting force: Thanks to its deep magnetic field design, the MW5 can lift 28 tons of metal in a single operation.

• Versatile in size & voltage: With diameters from 500 mm to 3000 mm and multiple voltage levels (DC 220V, 290V/200V, 350V/290V/200V), it's compatible with various cranes and excavators.

• Durable construction: The entire exterior is fully sealed, pressure-resistant, and prevents magnetic leakage, ensuring a long service life.

• High heat resistance: The heat-resistant version operates effectively in environments up to 700°C, meeting the demanding requirements of the metallurgical industry.

• Convenient maintenance: Designed with a quick-disconnect lead wire, it's easy to detach and re-attach, saving repair time.

• Flexible application: It can be mounted on overhead cranes, gantry cranes, excavators, or other lifting equipment.

2. Benefits of using the MW5 Series

• Reduced operating costs: Decreases labor needs and accelerates the speed of material handling.

• Safety & reliability: Minimizes material spillage and reduces workplace accidents.

• Enhanced production efficiency: Optimizes the metal processing workflow and boosts business productivity.

• Adaptable to harsh environments: The MW5 operates reliably in challenging environments like seaports, steel mills, and scrap yards.

Frequently Asked Questions (FAQs)

1. What types of materials can the MW5 Series lift?

→ It's specialized for lifting magnetic ferrous materials: steel plates, billets, iron balls, scrap steel, iron ingots, and hot-rolled steel.

2. Can the MW5 be installed on an excavator?

→ Yes. The MW5 can be installed on excavators, overhead cranes, and gantry cranes with the appropriate power supply unit.

3. What is the average lifespan of an MW5 lifting magnet?

→ When operated correctly, the average lifespan can be up to 8–10 years.

4. What is the maximum temperature the MW5 can withstand?

→ The standard version handles typical industrial ambient temperatures, while the special heat-resistant version can work in environments up to 700°C.

5. Should I choose a copper or an aluminum coil?

→ Copper: Offers higher performance and a longer lifespan.

→ Aluminum: Is lighter and more cost-effective.

Why Choose TXLET as Your MW5 Series Supplier?

• Official Distributor: TXLET provides the MW5 Series with full CO and CQ certificates.

• In-depth Technical Consultation: Our team of engineers has a deep understanding of lifting equipment and can help you find the optimal solution.

• Diverse & Readily Available Stock: We can quickly meet the needs of factories, scrap yards, and seaports.

• Professional After-Sales Service: We offer on-site installation, maintenance, and warranty support.

[ With TXLET, you don't just buy a product; you get a complete solution that helps you improve operational efficiency and reduce long-term costs.

If you are looking for an efficient, safe, and durable ferrous material handling device, the MW5 Series Round Lifting Electromagnet is the ideal choice.
