KPJ Electric Transport Cart – The Ultimate Rail Transfer Solution for Heavy-Duty Applications

I. Introducing the KPJ Electric Transport Cart

1. Product overview

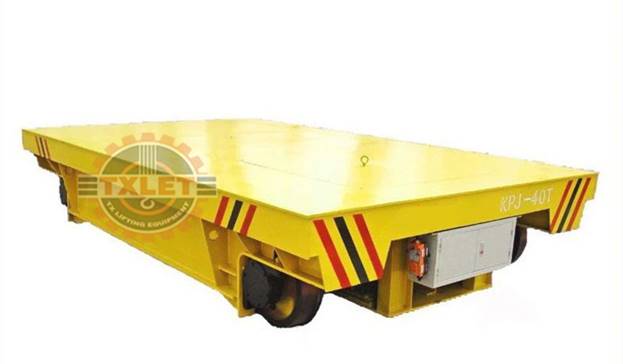

Standard KPJ transfer cart design, simple yet effective

The KPJ Electric Transport Cart is a specialized vehicle designed for moving hefty materials on fixed rail systems. Powered directly by a cable drum (380V AC), the KPJ is engineered to handle loads from 2 to 150 tons. Featuring a sturdy welded steel frame and a combination of an industrial motor and a reducer, the cart operates smoothly, reliably, and is built to last.

What truly distinguishes the KPJ series from other rail transfer carts, such as those powered by batteries or busbars, is its remarkable simplicity and cost-effectiveness. The KPJ's straightforward design translates to a lower initial investment, reduced maintenance requirements, and the ability to perform reliably in harsh settings such as metallurgy and heavy machinery manufacturing, where a clean, open power source is not always feasible.

2. Significance & applications

In the modern industrial landscape, automating internal material handling is critical for reducing manual labor, boosting workplace safety, and optimizing production efficiency. The KPJ Electric Transport Cart is a key player in this transformation, providing a dependable, cost-effective, and long-lasting solution for moving massive loads along fixed railway lines.

With its exceptional load-bearing capacity, stable performance, and accessible price point, the KPJ series has become the go-to solution for heavy industries, including steel plants, metalworks, mold handling, foundry workshops, energy facilities, and large-scale warehouses.

II. Structure & working principle of the KPJ Electric Transport Cart

1. Main components

The KPJ transport cart is designed with the following core components, ensuring superior performance and reliability:

• Cable drum (380V AC): This magnetic-coupled drum automatically winds and unwinds the cable as the cart moves to provide a continuous power supply. For cable lengths over 50 meters, the system includes an automatic cable arrangement mechanism to prevent tangling and extend the cable's lifespan.

• Industrial motor & reducer: A robust industrial-grade motor provides a powerful, consistent drive. This is paired with a precision-engineered reducer to deliver strong traction, stable power transmission, and an incredibly smooth, vibration-free operation.

• Heavy-duty welded steel frame: The chassis is fabricated from high-grade steel, using advanced welding techniques to create a rigid structure. This frame is engineered to withstand loads exceeding 1.25 times its rated capacity, ensuring maximum durability and excellent impact resistance even in harsh working conditions.

• Rail-mounted wheels: The wheels are forged from high-strength steel, a material selected for its exceptional durability and resistance to wear. The wheels' profile is machined to match the rail track precisely, ensuring the cart moves with flawless accuracy and stability.

• Control system: The cart can be operated safely and flexibly using either a user-friendly push-button control panel mounted directly on the vehicle or a convenient remote control.

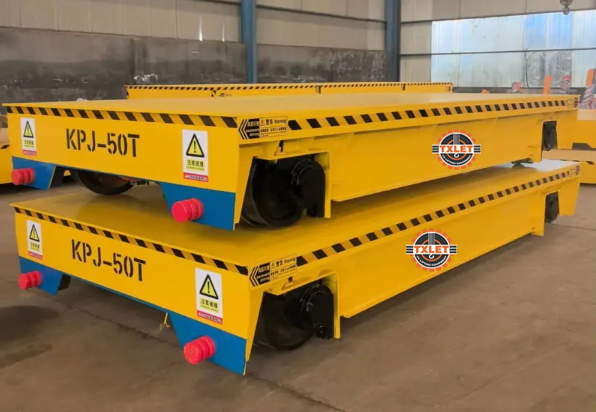

Two KPJ-50T carts are ready for shipment, showcasing consistency and quality.

2. Working principle

• The operation of the KPJ Electric Transport Cart is based on the continuous power supply from the cable drum to the drive motor:

• 380V AC power is delivered from the power grid to the cable drum.

• The drum automatically releases or retracts the cable as the cart moves along the rail.

• Electrical energy is transmitted to the motor and reducer, which converts it into traction force to drive the wheels and move the cart.

• For travel distances over 50m, the system automatically arranges the cable to prevent twisting or tangling.

• The operator can control the cart conveniently via the control panel or remote, ensuring complete safety.

Operational limitation: Since the KPJ cart relies on a power cable to operate, its effective running distance is limited to a range of ≤ 200 meters. This is the key difference when compared to battery-powered (KPX) or busbar-powered (KPC) transfer carts.

III. Key features, advantages & applications of the KPJ Electric Transport Cart

1. Key features

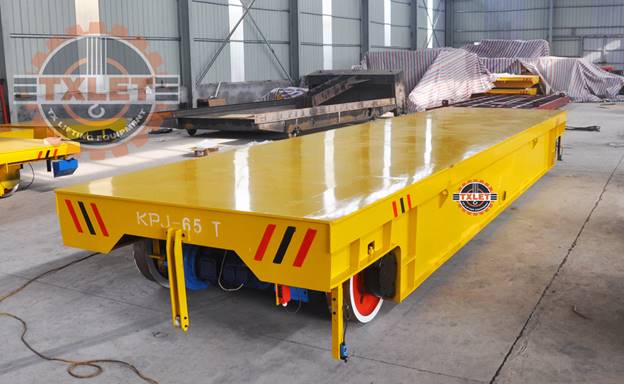

A KPJ-65T heavy-duty cart, designed for transporting long and bulky materials in workshops

The KPJ cart is equipped with advanced features that effectively meet all heavy transport requirements:

• Flexible load capacity: The cart is available with a wide capacity range, from a minimum of 2 tons to a maximum of 150 tons. This versatility makes it suitable for a diverse range of applications, from medium-duty to super heavy-duty handling.

• Rail-mounted operation: Engineered to run on fixed tracks, the cart provides precise, predictable movement. This makes it an ideal solution for repetitive transport tasks where accuracy and consistency are paramount.

• Cable drum power supply (380V AC): The cart’s 380V AC cable drum power supply ensures uninterrupted operation. This system eliminates the need for battery charging, preventing downtime and maintaining a continuous workflow.

• Automatic cable arrangement: For longer travel distances, the built-in mechanism prevents cable entanglement, which drastically reduces wear and tear and extends the cable's lifespan.

• Heavy-duty steel frame: The rigid, welded structure can handle loads exceeding 1.25 times its rated capacity, providing superior impact resistance.

• Control options: Operators have the flexibility to control the cart using either a wired push-button control panel or a convenient remote control, offering enhanced safety and mobility.

• Travel distance: Optimized for short to medium routes, with a limit of ≤ 200m due to the nature of its power supply.

2. Outstanding advantages

These benefits make the KPJ cart a leading solution in heavy industry:

• Stable and smooth operation: Thanks to the industrial motor and reducer, the cart moves smoothly with minimal vibration.

• High durability and long lifespan: The robust design ensures the cart operates effectively for an extended period, even in harsh environments.

• Low maintenance costs: A simple structure, along with convenient inspection holes and lifting hooks, makes maintenance easy and cost-effective.

• Economical solution: It offers a lower initial investment and significantly reduced long-term maintenance costs compared to other cart types.

• Safe and reliable: A continuous power supply from the cable drum eliminates the risk of downtime associated with battery charging.

• Trusted in heavy industries: Its performance has been proven in metallurgy plants, casting workshops, and large-scale manufacturing facilities.

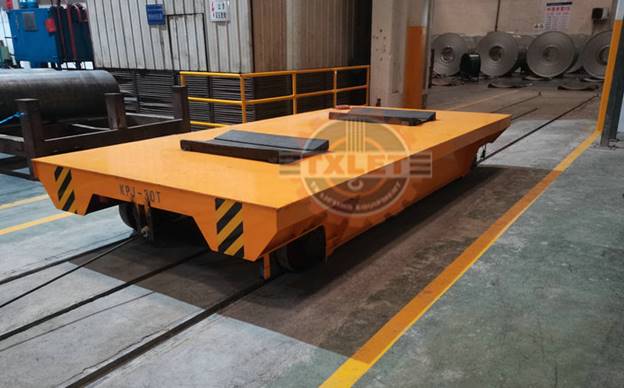

KPJ cart in operation on rails, ideal for factories and warehouses

3. Practical applications

The KPJ Electric Transport Cart has a wide range of applications, enabling the safe and efficient transport of heavy loads:

• Metallurgy & steel industry: In steel plants, the KPJ is a workhorse for moving steel billets, coils, ingots, and even containers of molten metal. Its robust design and ability to operate in high-temperature environments make it an essential part of the production line.

• Casting & mold industry: This cart is crucial for moving massive molds and heavy cast parts between different work areas. It provides a safer alternative to overhead cranes for lateral movement, minimizing the risk of accidents.

• Heavy machinery manufacturing: In factories that produce large mechanical components, the KPJ is used to transport oversized parts and complex machinery from one assembly station to the next, streamlining the manufacturing process.

• Energy sector: Power plants, hydroelectric facilities, and wind farms often need to move heavy transformers, turbines, and other large equipment. The KPJ provides a safe and stable solution for these critical transport tasks within the facility.

• Workshops & warehouses: For large workshops and warehouses with fixed production lines, the KPJ is the ideal solution for repetitive transfers of heavy goods, raw materials, or finished products, helping to optimize workflow and labor efficiency.

IV. Technical specifications & comparative analysis

1. Technical specifications of the KPJ Transport Cart

Engineered to meet heavy-duty transportation needs, here is an overview of the KPJ's standard technical parameters:

2. Comparison: KPJ vs. other Transfer Cart series

To help customers choose the most suitable solution, the following comparison analyzes the strengths and limitations of the KPJ cart against other common models on the market:

Conclusion & selection guide

Based on the comparison above, you can draw a clear conclusion to help customers visualize their best option:

• KPJ is the perfect choice for short- to medium-distance heavy-load transport at the lowest cost.

• KPX is recommended when flexibility and long-distance travel are required.

• KPT is mostly used for light-duty, short-distance applications due to its limitations.

• KPC is the most advanced solution for continuous heavy-duty operations, though it comes with a higher initial setup cost.

V. Why choose the KPJ Electric Transport Cart?

When selecting heavy-duty material handling equipment, businesses prioritize safety, reliability, and cost-effectiveness. The KPJ Electric Transport Cart delivers on all these fronts, making it a leading choice for a wide range of industries.

1. Key reasons to choose KPJ:

• Flexible load capacity: Capable of transporting from 2t to 150t, it's suitable for both medium and large-scale industrial applications.

• Rugged & durable design: Featuring a welded steel frame that’s 1.25 times stronger than its rated capacity, the cart can withstand heavy impacts and operate in harsh conditions.

• Stable power supply: Powered by a magnetic-coupled cable reel (380V AC), it ensures a continuous power source and eliminates downtime for battery charging.

• Low maintenance, easy handling: The design includes inspection holes and lifting hooks, making maintenance simple and reducing operational costs.

• Proven industrial application: Widely trusted in the metallurgy, machinery, shipbuilding, and manufacturing sectors for its reliable transport performance.

2. Frequently Asked Questions (FAQs)

1. What is the maximum travel distance of the KPJ Electric Transport Cart?

The recommended effective travel distance is ≤ 200 meters, limited by the cable length.

2. Can the cart be customized for specific requirements?

Yes. The load capacity, rail size, speed, and control mode (push-button or remote) can all be customized to fit your project.

3. How is it different from a battery-powered cart?

The KPJ cart uses a cable reel for a continuous, uninterrupted power supply. In contrast, battery carts require regular charging, which can lead to downtime and maintenance associated with battery replacement.

4. Is it suitable for outdoor operations?

It can operate outdoors if properly protected, but it is primarily designed for indoor or semi-covered environments.

5. Which industries benefit most from KPJ carts?

Industries that handle large volumes of heavy materials, such as steel plants, warehouses, and manufacturing workshops, benefit most from this solution.

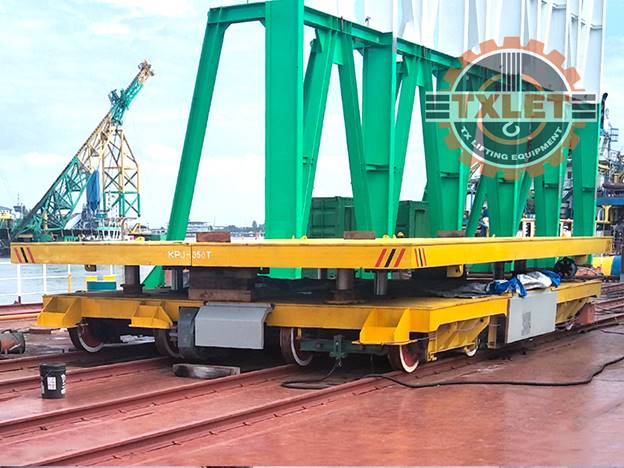

KPJ-350T super heavy-duty cart, effectively used at seaports and specialized environments
