The MW19 Series: A Safer, More Efficient Solution for Lifting Wire Rod Coils

I. Introduction & overview of the MW19 Series

1. The need for lifting disc-shaped steel coils in industry

In the demanding world of steel production and logistics, the process of lifting and moving wire rod coils presents significant operational challenges. These disc-shaped bundles of steel, with their substantial weight, unique geometry, and often extremely high temperatures straight from the rolling mill, pose a real risk to conventional lifting methods.

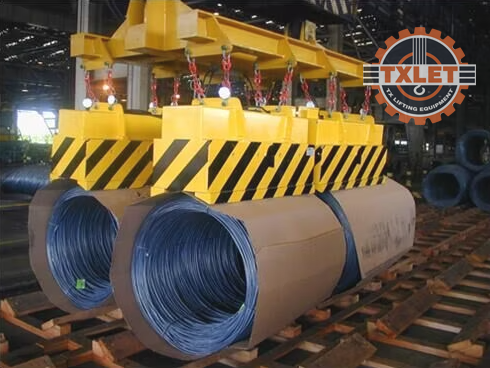

A multi-unit MW19 Series configuration lifting multiple wire rod coils simultaneously, highlighting the system's efficiency and ability to handle large volumes in steel warehouses and logistics centers.

Traditional equipment, such as mechanical hooks, slings, or clamps, often falls short:

• Compromised safety: These methods are inherently prone to slipping, which can lead to catastrophic accidents, material damage, and serious safety hazards for personnel. The risk is compounded when dealing with the high temperatures of freshly-rolled coils, where contact is a major concern.

• Poor efficiency & productivity: Manual handling with hooks is a slow, tedious process that struggles to keep up with the high-volume output of modern steel mills. The time spent on hooking, unhooking, and precise placement significantly reduces overall operational efficiency.

• Lack of control: Placing loads with precision is difficult, leading to wasted time and potential damage to the coils or surrounding equipment. This is a critical drawback in automated or high-density storage facilities.

As the industry pushes for greater productivity and safety, the need for a more advanced, reliable lifting solution has become paramount. This is where the Lifting Electromagnet emerges as the optimal answer, providing a fast, secure, and highly controlled method for handling steel coils, thereby minimizing risk and dramatically improving a facility's overall output.

2. What is the MW19 Series?

The MW19 Series Lifting Electromagnet is a specialized line of electromagnets used for lifting disc-shaped steel coils, also known as high-speed wire coils. It's a significant improvement over the previously popular MW22-54 series.

Unlike the MW22-54, which uses a three-pole single-coil design that is prone to air gaps and unstable lifting, the MW19 Series is designed with:

• Double-coil, double-pole magnetic field superposition structure: This creates a superimposed magnetic field that penetrates deeper and generates a stronger lifting force.

• Two-point full cambered contact design: This increases the contact area, preventing off-center loads and unsafe lifting.

• Wide temperature resistance: Operates reliably from 150°C to 600°C and can even work stably at temperatures above 600°C.

• Flexible operation: Allows multiple units to be installed and controlled independently, suitable for both vertical and horizontal lifting of steel coils.

Thanks to these advantages, the MW19 Series is a safe, efficient, and durable solution that completely replaces older products, delivering superior lifting performance in harsh industrial environments.

II. Key features & technical specifications

1. Key features of the MW19 Series

The MW19 Series Lifting Electromagnet is the product of meticulous engineering, designed to offer unparalleled performance:

• Enhanced Safety and Efficiency: The combination of its powerful double-pole, double-coil design and full-cambered contact surface ensures a firm, uniform grip. This strategic design dramatically minimizes the risk of load shifting, poor contact, or accidental drops, protecting both your materials and your workforce.

• Powerful and Deep Magnetic Penetration: The dual-coil magnetic field superposition is the secret to the MW19's exceptional strength. The overlapping magnetic field is far more effective at penetrating through a coil's layers, providing a powerful, stable lift, even when dealing with heavy or unevenly wound bundles.

• Flexible and Adaptable Operation: Whether you need to move a single coil or an entire stack, the MW19's multi-unit capability offers unmatched flexibility. Each unit can be controlled independently, allowing for precise and coordinated movements. This adaptability is particularly valuable in dynamic environments like busy ports or complex logistics centers.

• Superior Temperature Resistance: This is where the MW19 truly shines. Its ability to operate reliably at temperatures up to 600°C and beyond makes it a crucial tool for hot rolling mills, eliminating the need for cooling periods and significantly speeding up the production and handling process.

• A Significant Upgrade from the MW22-54 Series: The MW19 is a direct response to the limitations of its predecessor. It systematically overcomes the stability issues and reduced magnetic force that plagued the MW22-54, offering a more reliable, safer, and ultimately more cost-effective solution for modern industrial needs.

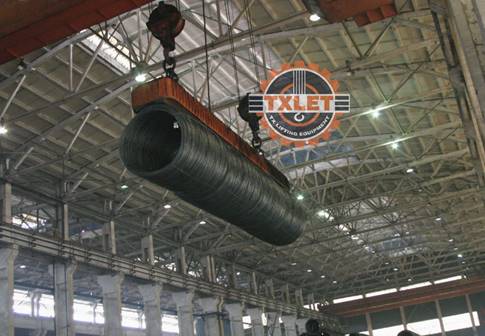

The MW19 Series electromagnet in action, demonstrating its powerful vertical lifting capability for wire rod coils, crucial for efficient material handling in various industrial settings.

2. Technical specifications

3. Comparison: MW19 Series vs. MW22-54 (Old)

[ The MW19 Series is a comprehensive upgrade that replaces the MW22-54 in most practical applications, particularly in hot rolling mills, ports, and high-volume warehouses.

III. Applications & Advantages

1. Applications of the MW19 Series

The MW19 Series Lifting Electromagnet is specifically designed for lifting disc-shaped steel coils (wire rod coils), making it an essential component in almost every stage of the modern steel industry:

Hot steel rolling mills

After high-speed wire rolling, the products are typically coiled into disc-shaped bundles for easy transport. In high-temperature environments, using lifting hooks or mechanical clamps is not only inefficient but also carries the potential risk of breakage or load slippage. The MW19 Series, with its heat resistance of over 600°C, has become the ideal choice for this crucial stage.

Steel warehouses & logistics centers

In high-volume warehouses, the continuous flow of incoming and outgoing steel coils demands rapid, precise handling. The MW19's powerful grip allows for efficient stacking and de-stacking, maximizing storage density and significantly reducing turnaround times, which directly translates to lower operational costs.

Ports & docks

Steel shipments are often transported by ships or barges. Loading and unloading require speed, precision, and absolute safety. The MW19 allows for the installation of multiple independently controlled units, enabling rapid and safe handling.

Steel distribution hubs

For sorting and delivering coils to various processing plants or construction sites, the MW19 provides unmatched flexibility. Its ability to lift coils both vertically and horizontally accommodates a wide range of logistics and transportation requirements, ensuring every shipment is handled with care and precision.

[ In summary, the MW19 is not just a lifting device; it's a solution that optimizes the entire steel coil logistics chain, from production to storage, transportation, and distribution.

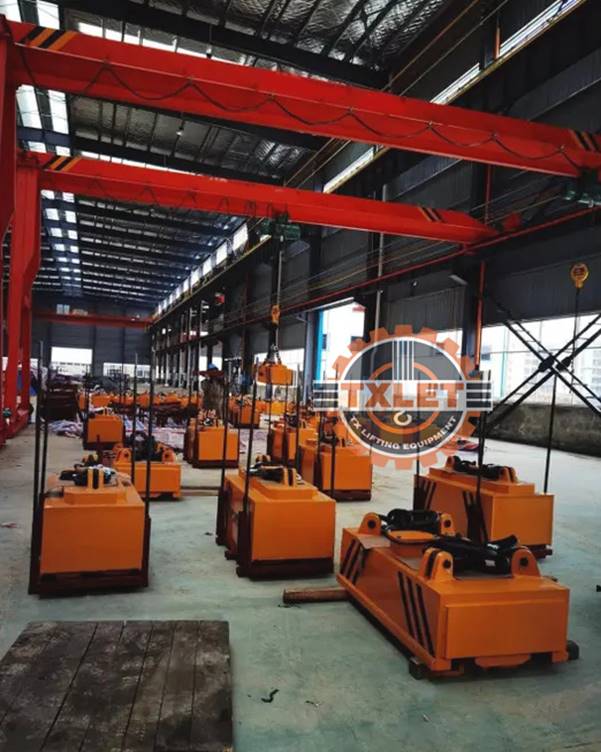

A range of MW19 Series Lifting Electromagnets is ready for deployment, showcasing TXLET's commitment to providing a variety of solutions for different lifting needs.

2. Advantages of using the MW19 Series

The increasing adoption of the MW19 by numerous businesses stems from the significant advantages it offers compared to traditional lifting methods:

Superior safety

The double-coil, double-pole design, along with the full cambered contact surface, ensures that steel coils are held securely, minimizing the occurrence of off-center loads or slippage – a common issue when using lifting hooks or mechanical clamps.

Enhanced lifting efficiency

With its strong magnetic force and deep penetration, the MW19 can handle even large, heavy, or irregularly shaped steel coils. This significantly increases loading and unloading speeds in factories or ports.

Durability in harsh environments

High temperatures, steel dust, and harsh production environments typically reduce the lifespan of many mechanical devices. The MW19 is designed to operate stably from 150°C to 600°C, and even above 600°C, ensuring long-term durability and high reliability.

Time & labor savings

Compared to requiring multiple workers to operate hooks, chains, or mechanical clamps, the MW19 can be operated remotely by a single person. This reduces labor costs, increases productivity, and lowers overall operating expenses.

High flexibility

The MW19 allows for the installation of multiple modules, each operating independently. This enables businesses to customize the system according to their scale, load requirements, and workspace.

Direct replacement for the MW22-54 Series

Considered a "comprehensive upgrade," the MW19 effectively addresses the limitations of the older series in terms of magnetic force, stability, and safety. This allows businesses to transition to the new equipment easily without needing to overhaul their existing crane systems.

[ Thanks to these advantages, the MW19 Series has become a strategic choice for steel companies, ports, and logistics centers looking to optimize their steel coil lifting processes while ensuring long-term safety and economic efficiency.

IV. Why choose Us - FAQs

1. Why choose TXLET for the MW19 Series?

When selecting the MW19 Series Lifting Electromagnet, the supplier is just as important as the product itself. TXLET is proud to be a reputable provider of industrial lifting equipment, offering our customers these key advantages:

• Experience & Expertise: TXLET has years of experience in the lifting equipment field, especially with electromagnetic solutions for the steel industry.

• Genuine Products: All our equipment is imported and undergoes strict quality control, ensuring durability, safety, and performance.

• Dedicated Technical Consulting: Our team of engineers provides on-site surveys, installation advice, and system configuration to perfectly match your specific needs.

• After-Sales Service & Warranty: We guarantee a full warranty and fast access to replacement parts, giving you peace of mind throughout the product's lifecycle.

• Comprehensive Solutions: We don't just sell equipment; we partner with your business to design optimal lifting solutions that save costs and boost productivity.

2. FAQs – Frequently Asked Questions

Q1: What temperature can the MW19 Series operate at?

The MW19 is engineered to work reliably in a wide range of temperatures, from 150°C to 600°C. It's even built to maintain stable performance at temperatures exceeding 600°C, making it a perfect fit for hot rolling mills and other high-temperature applications.

Q2: What's the biggest difference between the MW19 and the MW22-54?

The MW22-54 uses a three-pole single-coil design that is prone to air gaps and unstable lifting. In contrast, the MW19 uses a double-coil, double-pole design, resulting in a stronger, safer, and more flexible magnetic force.

Q3: Can multiple MW19 units be installed to operate at the same time?

Yes. The MW19 is designed for flexibility. It supports a multi-unit setup with independent control for each electromagnet, allowing you to lift multiple steel coils simultaneously or adjust their configuration to meet specific lifting requirements.

Q4: What is the delivery and warranty period?

TXLET is committed to fast delivery, depending on the quantity and configuration of your order. We provide a full manufacturer's warranty and comprehensive after-sales service to ensure your complete satisfaction.

3. About TXLET

TXLET is a company specializing in providing industrial lifting equipment, precision electro-mechanical systems, and automation solutions for various sectors, including steel, ports, warehousing, construction, and energy. Guided by our motto, “Quality – Safety – Efficiency,” TXLET has become a trusted partner to hundreds of businesses, both domestically and internationally.

Our Capabilities

• Diverse product portfolio: From overhead cranes, electric hoists, and gearboxes to couplings, cable reels, and specialized lifting electromagnets like the MW19 Series.

• Highly skilled engineering team: Our engineers possess extensive experience in implementing projects for steel mills, cement factories, seaports, warehouses, and other large-scale industrial ventures.

• Cost-optimizing solutions: TXLET doesn't just supply products; we help design comprehensive, end-to-end solutions that save energy and boost production efficiency.

Our Commitment

• Genuine products of international quality

• Dedicated warranty and maintenance services

• Expert technical consulting and operational training

• Long-term partnership with our clients

With many years of experience in the industry, TXLET is confident in providing customers with the safest, most efficient, and most sustainable lifting solutions available.

Discover Our Related Lifting Solutions

• Electric Hydraulic Grab Bucket: The perfect solution for port and waste-handling.

• K Series Gearbox: Offers durable and efficient power transmission.

• SWL Screw Jack: Provides precise height adjustment and robust support.

If your business is looking for a professional lifting solution for wire rod coils, let TXLET be your partner.

Contact us today for a free technical consultation and a detailed quote for the MW19 Series.
