| Lifting capacity | 5～50t |
| Span | 18～35m |
| Lifting height | 10～12m |
| Lifting weight | 5-20t |
| Working temperature is -20°C to 40°C |
The MH Single-Girder Gantry Crane with Electric Hoist is a leading and highly trusted piece of lifting equipment across numerous industries. Built with a robust single-girder steel frame, this gantry crane moves on ground rails and is paired with a CD1 or MD1 electric hoist for precise and efficient lifting, lowering, and horizontal movement of goods.
Designed for simplicity and durability, the MH Gantry Crane is easy to install, operate, and maintain. It offers a wide range of specifications to suit various operational needs, including lifting capacities from 5 to 50 tons, spans from 18 to 35 meters, and lifting heights from 10 to 12 meters.
Beyond its powerful material handling performance, this crane is equipped with essential safety features like overload protection and low-voltage protection. Operators benefit from flexible control options, including a ground pendant or wireless remote control, ensuring safe and seamless operation.
In today's global economy, businesses need fast, precise, and cost-effective material handling solutions to stay competitive. The MH Gantry Crane is an indispensable asset for this purpose, offering several key advantages:
Optimized production and logistics: It streamlines the movement of goods, drastically reduces downtime, and boosts overall operational efficiency.
Reduced labor costs: By replacing manual tasks with mechanized handling, it significantly lowers the workload on employees and cuts labor expenses.
Enhanced workplace safety: Built-in safety systems minimize operational risks, protecting both personnel and valuable inventory.
Versatile applications: This crane is the ideal industrial lifting solution for warehouses, factories, fabrication workshops, seaports, and construction sites.
As industries push towards greater automation and modernization, the MH Single-Girder Gantry Crane has become a strategic choice for businesses aiming to increase productivity, lower costs, and ensure long-term operational safety.

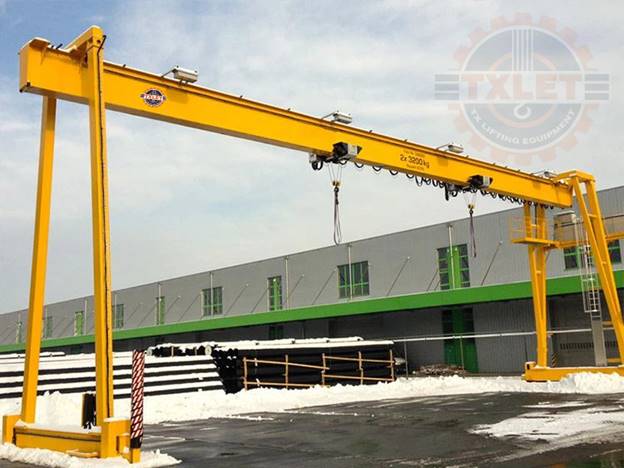

The MH Gantry Crane is performing reliably in a cold environment, a testament to its durable construction and ability to withstand extreme temperatures.
The MH Single-Girder Gantry Crane is engineered for durability, safety, and high-performance operation. Its comprehensive specifications ensure it can meet the demanding requirements of any industrial environment.
| Specification | Value | Description & Significance |
|
Lifting capacity |
5 – 50 tons (customizable up to 80 tons) |
Handles a wide range of loads, offering maximum flexibility for diverse tasks. |
|
Span |
18 – 35 m |
Provides extensive coverage of the workspace, reducing the need for multiple cranes. |
|
Lifting height |
10 – 12 m (customizable) |
Accommodates various lifting needs, making it ideal for warehouses and ports. |
|
Lifting speed |
8 m/min (CD1) or 8 & 0.8 m/min (MD1) |
The dual-speed MD1 hoist allows for both fast lifting and precise handling of fragile goods. |
|
Crane traveling speed |
20 – 30 m/min |
Smooth movement, powered by geared motors and VFDs, minimizes vibration and enhances safety. |
|
Trolley traveling speed |
20 – 30 m/min |
Synchronized with the crane's speed to optimize handling time and efficiency. |
|
Working temperature |
-20°C to 40°C |
Ensures reliable performance in a variety of challenging weather conditions. |
|
Hoist type |
CD1 or MD1 |
Durable electric wire rope hoists are known for their efficiency and long service life. |
|
Control mode |
Pendant control or remote control |
Provides flexible and safe operation, allowing the operator to work from a secure position. |
|
Power supply |
Cable drag or cable drum reel |
Multiple options for a stable power supply, simplifying installation and ensuring reliability. |
Lifting power and reach: The crane's wide range of lifting capacities and large span not only accommodates various types of goods but also maximizes the use of your workspace. This smart design choice helps reduce overall investment costs while significantly boosting operational efficiency.
Precision and control: The standard lifting height meets most industrial needs, but the dual-speed functionality of the MD1 hoist is a standout feature. It allows for fast lifting of standard loads and slow, precise handling of fragile or delicate items, preventing damage and ensuring safety.
Smooth and stable movement: Equipped with advanced geared motors and VFDs (variable frequency drives), both the crane and its trolley move smoothly, minimizing vibrations. This not only enhances safety for workers and materials but also improves overall handling efficiency.
Flexible and safe operation: The availability of both pendant and wireless remote control options gives operators the flexibility to choose the safest and most efficient working position. Additionally, the diverse power supply systems simplify installation and guarantee reliable, continuous operation.
The MH Gantry Crane's seamless operation is a result of the perfect integration between its mechanical components and advanced control systems, ensuring quick, safe, and precise material handling.
The electric hoist serves as the core of the lifting system. As the electric motor engages, high-quality wire ropes are precisely wound or unwound through a pulley and sheave system. This mechanism generates a stable and smooth lifting force, minimizing vibration and impact on the load.
The crane moves along its rails using a geared motor and sturdy cast steel wheels. An intelligent inverter system adjusts the travel speed, allowing for smooth acceleration and deceleration, which prevents sudden jolts. This not only protects the load and equipment but also provides operators with precise control over positioning, thereby maximizing work efficiency.
Operators have flexible control options with either a ground-based pendant control or a wireless remote control. The remote control option is particularly valuable as it allows the operator to work from the best vantage point, significantly reducing accident risks.
To guarantee absolute safety, the MH Gantry Crane is equipped with multiple layers of protection, including overload sensors, lifting limit switches, and undervoltage protection. When any abnormal conditions are detected, the system automatically shuts down, protecting the equipment and, most importantly, the operators.
The MH Single-Girder Gantry Crane is not just a piece of equipment; it's a strategic investment that delivers powerful advantages and versatile applications across various sectors.
|
Advantage |
Detailed description |
|
Robust & cost-effective design |
The simple A-frame or single-girder structure optimizes weight while ensuring high load capacity. This design reduces both structural costs and installation time, making it ideal for projects with tight deadlines. |
|
High operational efficiency |
Working seamlessly with CD1 or MD1 electric hoists, the crane ensures smooth, stable lifting and travel. Its adjustable lifting speeds cater to both light-duty and heavy-duty applications, maximizing productivity. |
|
Flexible control options |
Equipped with both ground-based pendant control and wireless remote control, this crane allows operators to choose the safest and most convenient operating position based on site conditions. |
|
Advanced safety system |
Integrated with crucial safety devices such as overload protection, low-voltage protection, and lifting limit switches, the crane guarantees maximum safety for both operators and equipment, ensuring peace of mind. |
|
High customization capability |
Key specifications like span, lifting height, wheel type, and power supply system (cable trolley or cable drum) can be tailored to meet unique customer needs, making it adaptable to any site or application. |
|
Durability & longevity |
Constructed from high-quality alloy steel with a multi-layer anti-rust surface treatment and equipped with industrial-grade components, the crane delivers stable, long-lasting performance even in harsh environments with a working temperature range of -20°C to 40°C. |

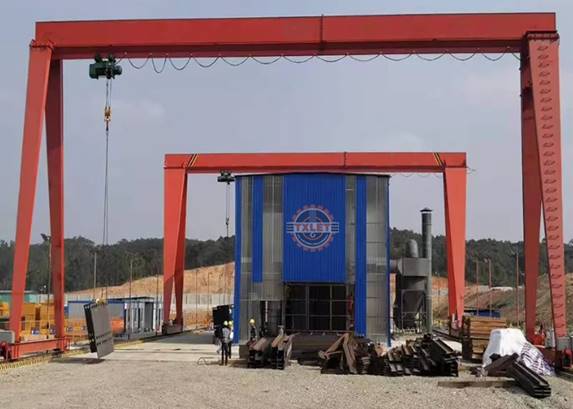

A robust MH Gantry Crane at a construction site, demonstrating its power and reliability in heavy-duty lifting tasks
The MH Gantry Crane's versatility and robust performance make it an indispensable asset in a wide range of industries.
Warehousing & logistics: Essential for loading, unloading, and moving goods in outdoor storage yards, container depots, and large-scale workshops, streamlining logistical operations.
Civil & industrial construction: The go-to solution for lifting heavy steel structures, precast concrete components, and construction materials, particularly in bridge, road, and pre-engineered building projects.

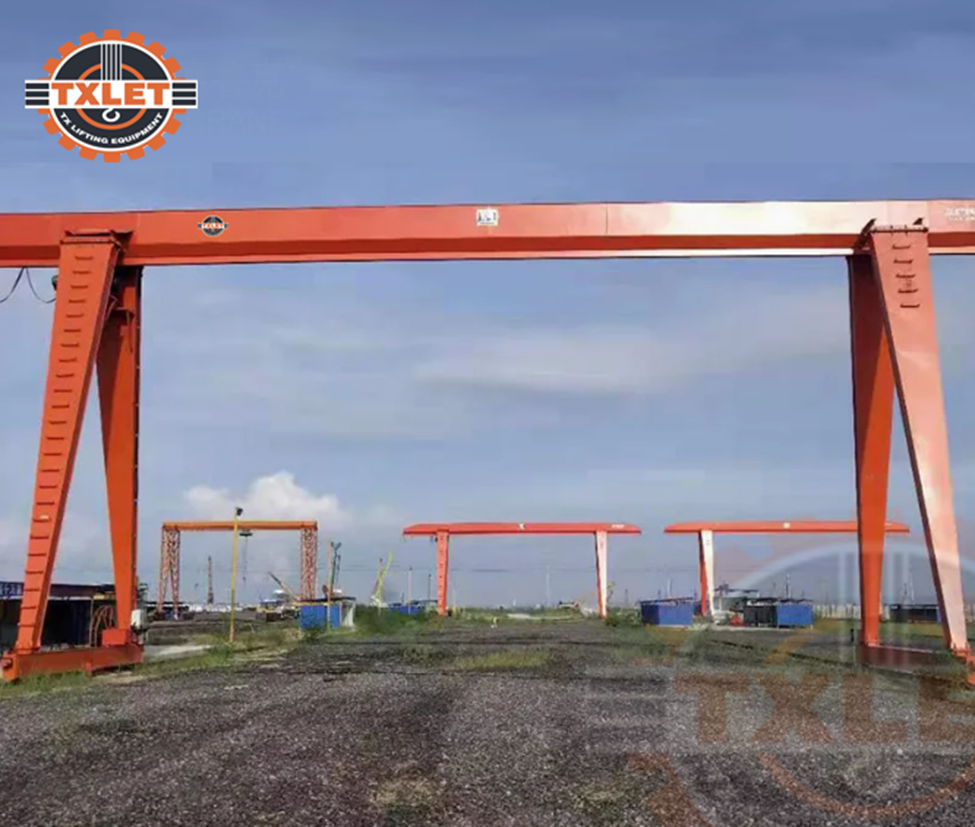

MH Gantry Cranes are efficiently managing material flow in a large outdoor storage yard, proving their versatility and wide-span capability.
Mechanical manufacturing & heavy industry: Facilitates the precise movement and assembly of large mechanical parts, steel frames, and oversized fabricated products, enhancing efficiency and safety.
Wood processing & container handling: Expertly handles the lifting and stacking of heavy wooden packages, pallets, and both empty and loaded containers.
Ports & docks: Play a crucial role in loading and unloading bulk cargo, containers, and machinery from ships to shore and vice versa, optimizing port operations.
Steel & metallurgy industry: Safely lifts and transports steel coils, plates, beams, and other finished or semi-finished steel products, improving material flow.
Energy & equipment sector: Used for the installation and transportation of heavy components like wind turbines, generators, and transformers, supporting critical infrastructure projects.
Choosing the right MH Gantry Crane is a critical decision that impacts work efficiency, safety, and operational costs. Our expert guide helps you make the best choice, while our key advantages provide a compelling case for your investment.
|
Criteria |
Selection Guide |
|
Lifting capacity |
Accurately determine your maximum load requirement. Choosing a capacity that is too high increases costs, while a capacity that is too low can lead to dangerous overloading. |
|
Span width |
Select a span that perfectly matches your workspace (typically 18–35m). An oversized span is more expensive, while an undersized one restricts movement. |
|
Lifting height |
Base this on your facility's or container's height. A 12m lifting height offers greater flexibility for taller goods compared to a 10m standard. |
|
Working environment |
For outdoor use, opt for robust corrosion-resistant finishes like powder coating or hot-dip galvanization to protect against weather and temperature extremes (-20°C to 40°C). |
|
Power supply |
For long travel distances and frequent operation, a sliding cable system offers flexibility. For shorter runs, a cable drum reel is a more cost-effective choice. |
|
Control method |
Remote control is ideal for large or hazardous areas, offering superior safety. Pendant controls are economical and well-suited for confined spaces. |
|
Lifting & Traveling Speed |
Choose speeds that balance efficiency and safety. The right speeds prevent load swinging, ensuring safer and more controlled material handling. |
|
Customization |
Work with a manufacturer that can customize key specifications like load capacity, span, speed, and paint color to perfectly align with your unique requirements. |
Investing in an MH Gantry Crane provides a wide range of benefits that go far beyond standard lifting performance.
Unmatched performance: Engineered for stability, it ensures smooth and precise cargo handling with minimal load swinging, boosting productivity and safety.
Superior Cost-effectiveness: It offers a significantly lower initial investment compared to double-girder gantry cranes or indoor bridge cranes while delivering high lifting efficiency.
Enhanced safety: A comprehensive safety system, including overload protection, travel limit switches, and low-voltage protection, is installed to prevent workplace accidents.
Versatile applications: This crane is a powerful, multi-purpose tool, excelling in warehouses, ports, construction sites, manufacturing plants, and various assembly areas.
Easy & low-cost maintenance: Its simple, robust structure and widely available spare parts make routine maintenance and repairs straightforward, minimizing downtime.
Built to last: Constructed from high-quality steel with an anti-corrosion finish, it is designed for durability and a long service life in even the most demanding industrial settings.
Flexible installation: The crane's design allows for easy relocation and installation in different areas without requiring major foundation changes, offering greater operational flexibility.
Fully customizable design: Everything from paint color and speed to span and control configuration can be tailored to meet your exact operational needs, ensuring a perfect fit for your business.
As a trusted manufacturer with years of expertise in lifting equipment and mechanical power transmission systems, TXLET (Henan TX Lifting Equipment Co., Ltd.) has become a go-to supplier for industrial factories, warehouses, and logistics centers worldwide.
We provide end-to-end solutions, from expert consultation and custom design to manufacturing and on-site installation. Our comprehensive product range includes:
European-Standard Wire Rope Electric Hoists
Overhead Cranes (Bridge, Suspension, and Custom Designs)
Gantry Cranes (A-Frame, L-Type, and Mobile Gantries)
Gearboxes (K/F/S/R series) for high-efficiency power transmission
SWL Screw Jacks & Lifting Columns for precision lifting
AGBS Drum Couplings for smooth torque transfer
Crane Accessories (hooks, cable reels, control cabinets, and more)
All TXLET products are manufactured to stringent ISO, FEM, and CE standards and undergo strict quality inspections to ensure they meet your project’s exact technical requirements.

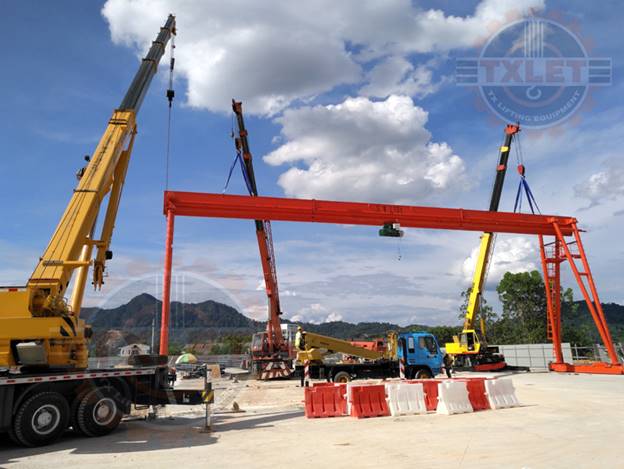

Our professional team is expertly installing an MH Gantry Crane, highlighting TXLET’s commitment to providing comprehensive on-site support.
We follow a clear, professional workflow to ensure a smooth and transparent customer experience from start to finish:
Consultation & needs analysis: Our experts assess your specific load capacity, lifting height, and working environment to recommend the perfect solution.
Technical planning: We provide detailed CAD drawings, integration plans, and technical proposals tailored to your facility.
Manufacturing & Testing: Your equipment is built to ISO standards, with comprehensive mechanical, load, and electrical testing to guarantee quality.
Delivery & Installation: We offer nationwide delivery and on-site setup by our certified team to ensure a seamless launch.
Warranty & Support: We stand by our products with genuine spare parts, fast service, and long-term technical assistance.
Electric Hydraulic Grab Bucket: The perfect solution for port and waste-handling.
K Series Gearbox: Offers durable and efficient power transmission.
SWL Screw Jack: Provides precise height adjustment and robust support.
AGBS Drum Coupling: Ensures smooth and reliable torque transfer in hoisting systems.
Whether you're upgrading an existing crane or building a new facility, TXLET is your trusted partner for reliable, efficient, and safe lifting solutions.
Contact TXLET now to lift smarter, safer, and further!!!
