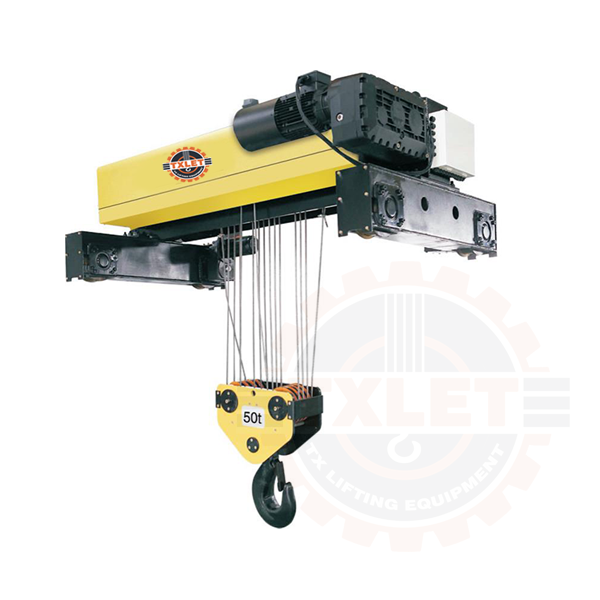

European Double-Girder Wire Rope Electric Hoist – The European-Standard Solution for Heavy-Duty Lifting

I. Product overview

European single-girder wire rope electric hoist – compact structure and efficient lifting performance

 1. What is a European Double-Girder Wire Rope Electric Hoist?

A European Double-Girder Wire Rope Electric Hoist is a type of electric hoist using wire rope, specifically designed to be installed on double-girder overhead cranes. It is a fully electric lifting device that operates via a motor–gearbox–drum system, capable of lifting loads from 2 to 100 tons with precision, safety, and stability.

This hoist is built to FEM standards – one of the most recognized benchmarks for industrial lifting equipment. With a high-performance motor, durable drive system, and advanced structural design, the hoist is ideal for heavy-duty industrial applications that demand continuous operation and high safety standards.

Compared to single-girder hoists, the double-girder type offers:

• Greater load capacity and stability
• Smooth travel across two main girders
• Reduced deflection and vibration under heavy loads

This hoist is essential for professional lifting systems such as double-girder overhead cranes, gantry cranes, industrial workshops, manufacturing plants, warehouses, and seaports.

 2. Why is this equipment important in modern industry?

In today’s era of rapid industrialization and automation, businesses across the manufacturing, logistics, and construction sectors face mounting pressure to enhance productivity while minimizing operational costs and safety risks. As a result, the demand for reliable lifting equipment that delivers energy efficiency, durability, and cost-effective performance has never been higher.

The European standard double-girder wire rope electric hoist addresses these exact needs, providing a robust and high-performance solution for modern industrial applications. This hoist system offers:

    High load-bearing capacity, making it ideal for heavy-duty lifting tasks in production facilities, warehouses, and steel plants

   Maximum safety for both operators and assets, thanks to advanced overload protection, anti-fall mechanisms, and intelligent limit switches

     Low maintenance requirements, helping businesses reduce downtime and extend the life cycle of their equipment

     Seamless integration with existing crane systems, including bridge cranes and gantry cranes

     Energy-saving motors and optimized gearboxes that reduce power consumption over time

Beyond just lifting materials, this double-girder electric hoist plays a strategic role in improving workflow efficiency, accelerating cycle times, and enhancing plant competitiveness. For businesses aiming to modernize their lifting operations, this hoist is not merely a tool—it’s a long-term investment that supports sustainable growth and operational excellence.

II. Technical Specifications

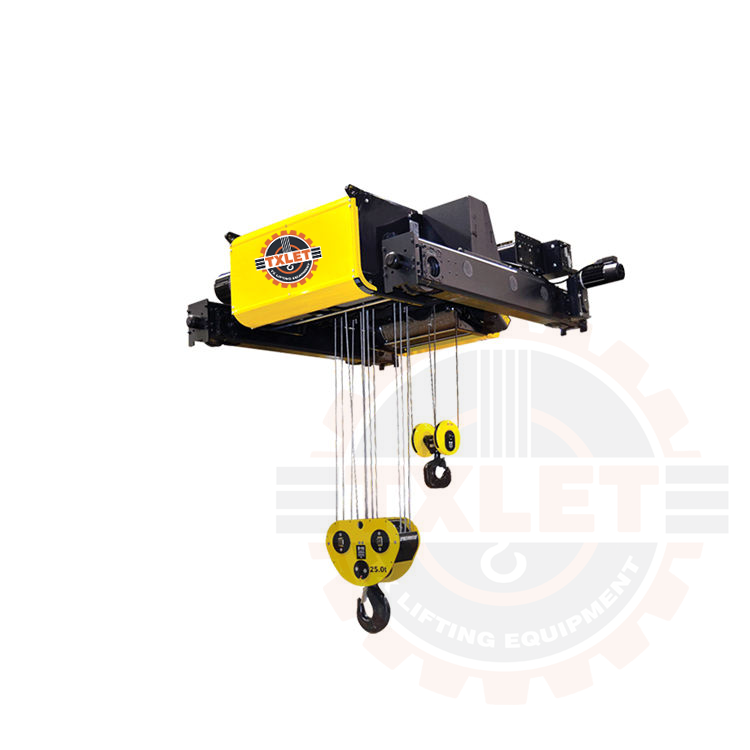

High-quality wire rope and hook mechanism ensure safety and durability in lifting operations

1. Key specifications of the product

The European Double-Girder Wire Rope Electric Hoist is a high-performance industrial hoist engineered for heavy-duty material handling tasks in demanding environments such as factories, logistics centers, and manufacturing plants.

Core technical specifications include:

2. Comparison with other hoist types

When evaluating lifting equipment, it's important to understand how the European double-girder hoist compares to other common types such as single-girder hoists and electric chain hoists.

Overall, the European-style wire rope hoist stands out as the ideal choice for industries requiring high load capacity, precision, and long-lasting performance.

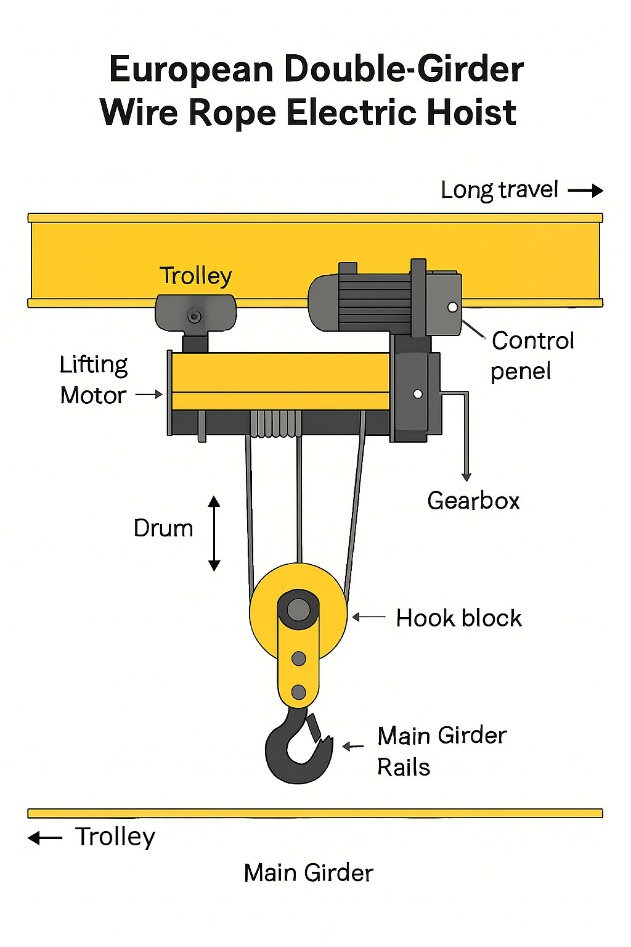

III. Operating principle

The European Double-Girder Wire Rope Electric Hoist operates through a synchronized mechanical and electrical system composed of an electric motor, gearbox, wire rope drum, and guiding mechanism, all controlled via an electrical panel using either a wired pendant control or wireless remote.

1. Basic operation process:

a. Start-up and control: The operator uses a pendant or remote control to command lifting, lowering, or horizontal movement.

b. Motor transmission: The electric motor receives the signal and transfers rotational force to the gearbox, which adjusts the output speed accordingly.

c. Wire rope drum operation: The gearbox rotates the drum, winding or unwinding the wire rope to lift or lower the load. The drum is designed to prevent slippage and ensure even, secure rope winding.

d. Horizontal travel and guidance: The hoist moves laterally along rails mounted on the double girders. This allows precise positioning of heavy loads across the work area.

e. Limit switches and safety mechanisms: The system includes lifting/lowering limit switches, overload protection, and emergency stop functions to ensure safe operation at all times.

2. Additional systems & operational advantages:

a.  Electromagnetic braking system: Once the hoist stops, the electromagnetic brake automatically engages, securely holding the load in place and preventing unwanted movement.

b. Thermal and overload protection: Equipped with thermal sensors and current limiters to shut down the system when overheating or overloading occurs, protecting the motor and extending equipment lifespan.

c. Optional smart sensors and PLC integration: Advanced models support load sensors and PLC-based intelligent control, allowing real-time monitoring, error alerts, and predictive maintenance.

d. Full synchronization with crane system: When mounted on a double-girder overhead crane, the hoist moves in three directions (vertical, lateral, and longitudinal) with high precision and smooth control—ideal for complex industrial workflows.

IV. Technical features & Operational advantages

1. European-standard design – Stable and long-lasting operation

Feature: Manufactured according to FEM/ISO international standards, ensuring high mechanical precision and reliability.

Benefit: Ensures consistent performance, smooth integration with overhead crane systems, and full compliance with modern industrial requirements.

2. High-power motor – Superior dust and heat resistance

Feature: Equipped with a 3-phase motor featuring IP55 protection and Class H insulation, along with a sealed gearbox and chromium alloy gears.

Benefit: Operates reliably in dusty, humid, or high-temperature environments. Minimizes wear and extends service life by 5–10 times compared to conventional hoists.

3. Automatic electromagnetic brake – Maximum safety assurance

Feature: Electromagnetic braking system activates automatically when the hoist stops.

Benefit: Prevents load slippage and holds cargo securely in place, enhancing safety during emergency stops or power outages.

4. Smooth operation – Ultra-low noise

Feature: Optimized transmission system with minimal vibration and noise.

Benefit: Creates a quiet, comfortable workspace, ideal for enclosed workshops or noise-sensitive environments.

5. Dual-speed lifting – Precision control for heavy loads

Feature: Supports two lifting speeds (fast/slow) depending on load and operation requirements.

Benefit: Improves control accuracy, reduces swing or impact, and ensures safe handling during sensitive lifting tasks.

6. Compact structure – Space-saving design

Feature: Low overall height, suitable for installations with limited overhead clearance.

Benefit: Maximizes effective lifting height and improves workspace layout efficiency, especially in tight installation spaces.

7. High cost-efficiency – Low maintenance demands

Feature: Durable construction, long-life lubrication, and minimal component wear.

Benefit: Reduces downtime, lowers repair and maintenance expenses, and enhances long-term investment returns.

V. Pro Insights: Industry uses & Selection guide

1. Real-World Applications of the European Double-Girder Wire Rope Electric Hoist

Thanks to its robust structure, high lifting capacity, and reliable operation in harsh industrial environments, the European Double-Girder Wire Rope Electric Hoist is widely used across many industries:

➤ Seaports, bonded warehouses, and logistics centers

Ideal for loading and unloading containers, machinery, and heavy materials at ports or distribution hubs.

Meets high demands for continuous operation, precise positioning, and high-speed lifting.

➤ Steel mills, metalworking, and heavy manufacturing

Used to move steel coils, large molds, or heavy-duty equipment between workstations.

Ensures operational safety during repeated heavy lifting across multiple shifts.

➤ Shipbuilding and large-scale assembly workshops

Perfect for lifting large components like ship hulls, structural frames, or marine engines during assembly.

The hoist’s stability and capacity (10–100 tons) make it ideal for demanding marine environments.

➤ Industrial warehouses and distribution centers

Supports vertical storage, shelf stacking, and material handling in large-scale logistics operations.

Integrated with overhead cranes to streamline loading/unloading processes.

➤ Energy sector, power plants, and industrial construction

Lifts turbines, transformers, and other heavy electrical equipment during installation or maintenance.

Commonly used in hydropower stations, substations, and factory infrastructure projects.

2. Why Choose the European Double-Girder Hoist by TXLET

Engineered for Demanding Operations: Built according to European FEM standards with high-grade chromium alloy gears and long-life components.

Reliable & Safe: Features advanced safety tech: overload protection, limit switches, low-voltage controls, and stable braking systems.

Efficient & Cost-Effective: Low maintenance, minimal downtime, and modular construction help reduce long-term operating costs.

Flexible Integration: Compatible with various crane systems; configurable for different industries and environments.

Trusted by Global Clients: Proven performance in 60+ countries across manufacturing, logistics, and energy sectors.

3. How to Choose the Right Electric Hoist for Your Needs

Selecting the right hoist depends on your specific working conditions and project requirements. Here are five key factors to consider:

✅Lifting capacity: Determine the maximum load weight. Choose a model between 2 to 100 tons. Avoid selecting a capacity too close to the actual load to extend the hoist’s lifespan and safety.

✅ Lifting height: Measure the required lifting height from ground level to the highest lifting point. Our hoists support lifting heights from 6 to 18 meters (customizable upon request).

✅ Usage frequency: For continuous operation or multi-shift work, choose hoists with a duty class M5 (2m) or higher. For occasional use, M3–M4 may be sufficient and more cost-effective.

✅ Installation environment & crane structure: Double-girder hoists require strong overhead beams and ample space for operation. Low-headroom design allows for use in workshops with limited ceiling height.

✅ Working conditions: For dusty, humid, or high-temperature environments, opt for motors with IP55 protection and Class H insulation. Optional features include waterproof covers, dust filters, and smart sensors.

 4. FAQs -Frequently asked questions

❓ Can the hoist be used outdoors?

→ Yes. We provide optional weatherproof enclosures and protection for outdoor use.

❓ Can I adjust the lifting speed or add a frequency inverter?

→ Absolutely. The hoist can be configured for variable speeds using frequency inverters or dual-speed motors.

❓ Is the product available from stock?

→ Common capacities are available in stock. Custom configurations or large capacities may require a lead time.

❓ Is it compatible with existing overhead cranes?

→ Yes. Designed to European standards, the hoist easily integrates with most double-girder overhead crane systems.

❓ What is the warranty period? Is on-site technical support available?

→ Standard warranty is 12–18 months. TXLET offers both remote and on-site technical assistance as needed.

We provide end-to-end solutions, from consultation and design to manufacturing and on-site installation, covering:

European-Standard Wire Rope Electric Hoists (Single & Double Girder Models)

Overhead Cranes (Bridge, Suspension, and Custom-Built Designs)

Gantry Cranes (A-Frame, L-Type, and Custom Mobile Gantries)

Gearboxes (K/F/S/R series) – High-efficiency mechanical power transmission

SWL Screw Jacks & Lifting Columns – Precision lifting and support mechanisms

AGBS Drum Couplings – Smooth and reliable torque transfer

Crane Accessories – Hooks, cable reels, sheaves, control cabinets, pendant controls, and more

All TXLET products are manufactured to ISO, FEM, and CE standards, undergo rigorous quality testing, and are custom-configured to match your project’s exact technical requirements.

Streamlined Order & Delivery Process

To ensure a smooth and professional customer experience, TXLET offers a streamlined and transparent project workflow from start to finish:

1. Consultation & needs analysis: Experts assess your project and recommend the right hoist based on load, height, and environment.

2. Technical planning: Detailed CAD drawings, integration plans, and technical proposals.

3. Manufacturing & testing: Built to ISO standards with full mechanical, load, and electrical testing.

4. Delivery & installation: Nationwide delivery and on-site setup by our certified team.

5. Warranty & support: Genuine parts, fast service, and long-term technical assistance.
