YWZ5 Electro-Hydraulic Drum Brake – Reliable Fail-Safe Braking for Cranes, Hoists, and Heavy-Duty Machinery

I. Overview

 1. What is the YWZ5 Electro-Hydraulic Drum Brake?

The YWZ5 Series Electro-Hydraulic Drum Brake is a modern, heavy-duty braking system engineered for industrial lifting and conveying equipment. Unlike conventional brakes, the YWZ5 operates on a crucial fail-safe principle: powerful springs apply the braking force, while an electro-hydraulic thruster releases the brake for operation. This design ensures the brake automatically engages in the event of a power loss or system failure, guaranteeing maximum safety for both equipment and personnel.

Built for high-frequency use, the YWZ5 delivers smooth, responsive braking and a long service life. With a wide braking torque range from 80 to 12,500 Nm and support for wheel diameters up to 800 mm, it is highly adaptable, fitting a vast array of applications—from small lifting devices to massive port cranes.

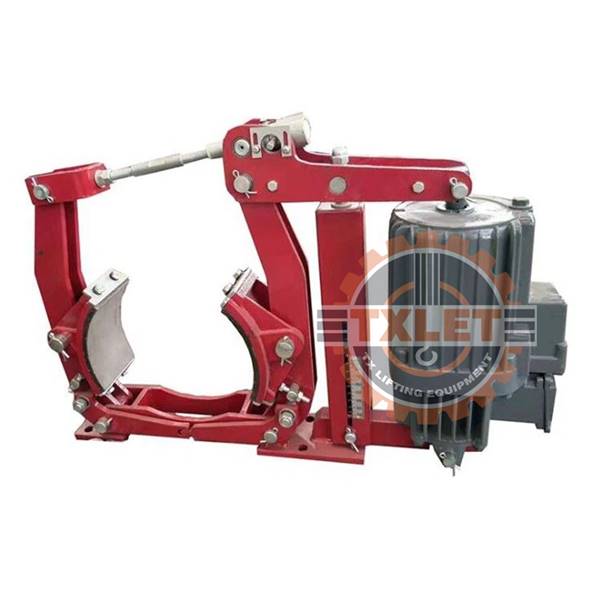

The YWZ5: Your ultimate fail-safe braking solution for industrial lifting equipment.

2. Role and importance in modern industry

In today’s industrial landscape, where heavy machinery operates under extreme loads and in harsh environments, a reliable braking system is critical for both safety and productivity. The YWZ5 Electro-Hydraulic Drum Brake plays a central role by:

• Ensuring ultimate safety: By automatically engaging during an emergency, the brake prevents uncontrolled movement of cranes, hoists, and conveyors, drastically minimizing the risk of accidents and equipment damage.

• Maximizing uptime: Its robust design and self-lubricating components reduce downtime and lower maintenance costs—a key advantage for 24/7 operations.

• Adapting to demanding environments: Whether in metallurgy, mining, construction, or port handling, the YWZ5 consistently delivers reliable performance in diverse and challenging conditions.

• Meeting global safety standards: As industries worldwide adopt stricter safety regulations, fail-safe solutions like the YWZ5 are essential for compliance and effective risk management.

The value of the YWZ5 Series extends beyond its mechanical strength. It seamlessly integrates into complex systems, offering a perfect balance of safety, efficiency, and durability, making it one of the most trusted choices for engineers and equipment manufacturers globally.

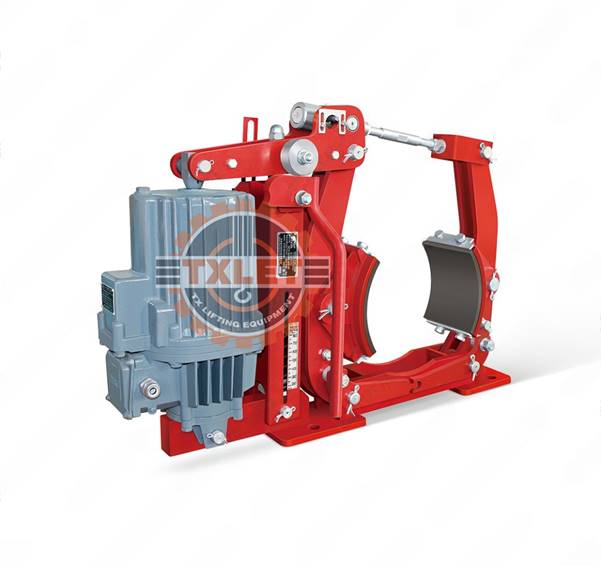

Precision and power combined in one system—the YWZ5 drum brake.

II. Key specifications

1. Technical specifications of the YWZ5 Electro-Hydraulic Drum Brake

The YWZ5 brake is built to meet the rigorous demands of industrial environments. Its key technical specifications are as follows:

These specifications highlight the robustness and wide adaptability of the YWZ5 brake, making it suitable for both standard and heavy-duty operations.

2. Why the YWZ5 stands out: a comparison with other industrial brakes

The YWZ5's unique design offers a superior combination of safety and performance when compared to other industrial braking systems.

As the comparison shows, the YWZ5 Series Electro-Hydraulic Drum Brake offers a unique and preferred solution for lifting machinery and heavy-duty applications. It combines the fail-safe safety mechanism (a significant advantage over magnetic brakes) with a high torque capacity (which outperforms disc brakes), all while remaining less sophisticated than full hydraulic systems. This makes the YWZ5 a top choice where safety and performance are paramount.

III. How it works: the fail-safe mechanism

The YWZ5 Electro-Hydraulic Drum Brake operates on the fundamental principle of spring-applied braking and electro-hydraulic thruster release. This intelligent design ensures a fail-safe performance, meaning the brake automatically engages the moment power is lost, guaranteeing maximum safety.

1. Basic working principle

Normal Operation (Releasing the Brake): When electrical power is supplied, the Ed series electro-hydraulic thruster is activated. It generates hydraulic pressure that pushes a piston upward. This action compresses a powerful spring, which in turn lifts the brake shoes away from the drum. With the brake released, the machinery—such as a crane, hoist, or conveyor—is free to move.

Braking Action (Applying the Brake): When power is intentionally cut off (to stop the machine) or unexpectedly lost due to a power failure, the hydraulic pressure in the thruster immediately drops. The preloaded spring force is then released, automatically pushing the brake shoes against the drum. This creates powerful friction, bringing the rotating machinery to a smooth, controlled stop. This fail-safe action ensures the brake always defaults to a safe, engaged position whenever electrical energy is not present.

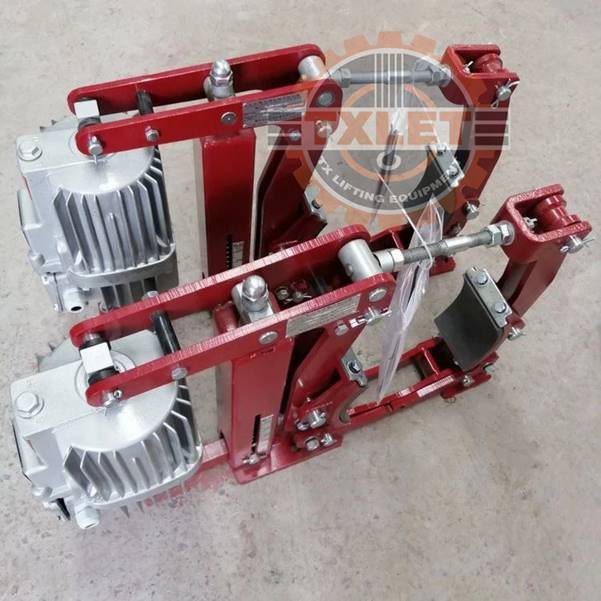

Dual brakes for maximum safety: YWZ5 systems are ready for installation and demanding operations.

2. Key functional components and their roles

The effectiveness of the YWZ5 brake comes from the synergy of its core components:

• Electro-hydraulic thruster (Ed Series): This is the "brain" of the system. It converts electrical energy into a mechanical lifting force, providing the power to release the brake smoothly and precisely.

• Spring mechanism: The heart of the fail-safe design. It stores mechanical energy and is the primary force for applying the brake, ensuring reliable stopping power even without electricity.

• Brake shoes & drum: These are the critical friction surfaces. Their design and material quality directly influence the braking torque and heat dissipation, ensuring consistent performance under heavy loads.

• Clearance equalization system: A key feature that automatically adjusts the brake shoes to ensure they make even contact with the drum. This prevents uneven wear, extends the life of the brake linings, and maintains consistent braking force.

• Self-lubricating bearings: Designed for long-term use with minimal maintenance, these bearings reduce friction and wear, ensuring smooth operation and high reliability.

3. Why is this mechanism a game-changer?

The working mechanism of the YWZ5 offers significant advantages that make it a top choice for industrial applications:

• Unmatched fail-safe reliability: The spring-applied principle guarantees that the brake will always stop the machinery in an emergency or power outage, unlike systems that depend entirely on active power.

• Smooth and consistent braking: The hydraulic actuation provides a smooth, progressive braking action, eliminating the harsh jerks and shocks often associated with other systems.

• High-frequency performance: Its design is specifically suited for repetitive, demanding operations, preventing overheating and excessive wear even with frequent starts and stops.

• Simplified maintenance: Features like the automatic clearance equalization and quick-change linings significantly reduce service time and lower overall maintenance costs.

This robust and intelligent mechanism is why the YWZ5 has become a preferred solution in the lifting and conveying industry, especially in environments where absolute safety and continuous performance are non-negotiable.

IV. Features, benefits & applications

The YWZ5 Electro-Hydraulic Drum Brake is a comprehensive solution, engineered to deliver not only performance but also safety, efficiency, and durability in a single package.

1. Key features: engineered for performance and durability

The YWZ5 Series combines advanced mechanical design with precision electro-hydraulics, offering a robust braking solution with a host of standout features:

• Fail-safe mechanism: This is the core of its safety. Braking force is applied by powerful springs, while the Ed series thruster handles the release. This design guarantees the brake automatically engages in the event of a power failure, ensuring complete safety under all conditions.

• Powered by Ed series thrusters: The trusted Ed series electro-hydraulic thruster provides stable, vibration-free release. This ensures a smooth braking experience, making the YWZ5 ideal for high-frequency operations.

• Self-lubricating bearings: All hinge points are fitted with self-lubricating bearings, which drastically reduce wear and eliminate the need for frequent re-greasing. This design significantly lowers maintenance costs and extends service intervals.

• Automatic shoe clearance adjustment: A built-in system ensures both brake shoes maintain equal clearance and balance. This feature prevents uneven lining wear, prolonging the life of the drum and maintaining consistent braking performance.

• Quick-change linings: The brake linings feature a clamped, integral forming structure, allowing operators to replace them quickly without disassembling the entire brake. This minimizes downtime and boosts operational efficiency.

• Spring protection: Springs are shielded within protective tubes to prevent contamination from dust, debris, and harsh environmental factors, making the YWZ5 perfect for use in demanding industries like mining and steel production.

• Flexible duty cycles: Designed to handle both S1 (continuous duty) and S3 (intermittent duty), the YWZ5 is a versatile solution for both occasional and 24/7 continuous processes.

• Customizable options: The brake is available in explosion-proof versions for hazardous environments, normally open configurations, and can be customized to meet specific industrial requirements.

2. Benefits: Why the YWZ5 delivers real value

Every feature of the YWZ5 Electro-Hydraulic Drum Brake is engineered to provide tangible benefits for your operations and bottom line:

• Enhanced safety: The fail-safe design guarantees your machinery stops instantly in an emergency or power outage, protecting both personnel and valuable assets.

• Unmatched reliability: The combination of spring action and hydraulic release ensures smooth and consistent braking performance, even under heavy-duty and repetitive cycles.

• Lower total cost of ownership: With features like self-lubricating bearings, auto-alignment, and quick-change linings, the YWZ5 requires less maintenance, reduces the frequency of part replacements, and saves you money on labor and spare parts over its long service life.

• Increased uptime and efficiency: Quick-change linings and durable components minimize downtime, while smooth engagement and release reduce stress on mechanical parts, improving overall system efficiency.

• Operational flexibility: The wide torque range allows the YWZ5 to be used across a broad range of machine sizes, from compact lifting devices to massive port cranes.

• Compliance: The YWZ5 is built to meet modern industrial safety regulations, making it a reliable choice for manufacturers and project owners worldwide who prioritize compliance and risk management.

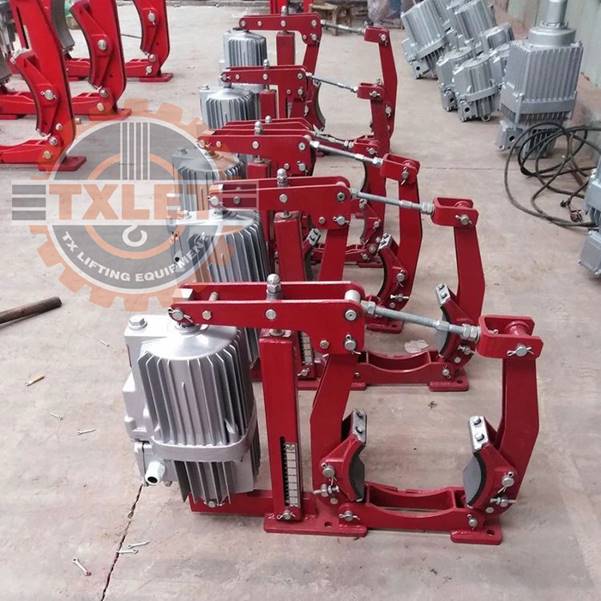

Quantity and quality: A batch of YWZ5 brakes is undergoing final inspection before being shipped.

3. Applications: A versatile solution for diverse industries

The YWZ5 Electro-Hydraulic Drum Brake is not limited to a single sector. Its robust design, fail-safe function, and adaptability make it a go-to solution for numerous industrial environments:

• Cranes and hoisting: Provides reliable braking for overhead cranes, gantry cranes, tower cranes, and hoists, ensuring the safe lifting and lowering of heavy loads.

• Winches and Conveyors: Stabilize material transport systems and ensure precise load handling in conveyor belts and cable winches, especially in high-capacity operations.

• Metallurgy and steel production: Reliably operates under extreme temperatures and heavy cycles in steel mills and foundries.

• Mining and quarrying: Performs dependably in dusty, vibration-prone environments, supporting conveyor belts, hoists, and excavation machinery.

• Ports and shipyards: Ensures smooth, safe, and efficient cargo operations for container cranes, grab buckets, and ship-loading systems.

• Construction and infrastructure: Secures tower cranes, construction hoists, and lifting platforms where safety and reliability are paramount.

The YWZ5 is an essential component in any heavy-duty application where safety, efficiency, and durability are non-negotiable.

V. Why choose the YWZ5 Electro-Hydraulic Drum Brake?

The YWZ5 Electro-Hydraulic Drum Brake has earned its reputation as a leading braking solution for one simple reason: it delivers an unmatched combination of fail-safe design, robust performance, and minimal maintenance. It's not just a component—it's an investment in the long-term safety and efficiency of your operations.

Here are the key reasons to choose YWZ5:

• Unmatched fail-safe reliability: The spring-applied mechanism guarantees that the brake engages automatically in a power failure, providing maximum operational safety for both personnel and equipment.

• Superior braking capacity: With a wide torque range from 80–12,500 Nm, the YWZ5 is versatile enough to handle everything from light conveyors to the heaviest industrial cranes.

• Low maintenance, high uptime: Features like quick-change linings, self-lubricating bearings, and an auto-alignment system significantly reduce service time and costs, maximizing your operational uptime.

• Exceptional adaptability: Designed for both continuous (S1) and intermittent (S3) duty cycles, the YWZ5 is ready for any challenge, with available options for explosion-proof and custom designs.

• Proven reliability: Trusted and deployed globally across critical industries such as metallurgy, mining, ports, and construction, the YWZ5 has a proven track record of performance in the most demanding environments.

About our company: TXLET

At TXLET, we are committed to delivering world-class lifting and braking solutions that power modern industry. Our comprehensive product portfolio includes cranes, hoists, gearboxes, couplings, and, of course, our flagship braking systems.

We are dedicated to providing:

• Certified quality: Our products meet stringent international standards, giving you peace of mind and guaranteed performance.

• Technical expertise: Our team of experts is ready to guide you in selecting the perfect equipment for your specific needs.

• Customized solutions: We specialize in tailor-made designs for specialized and hazardous environments.

• Global support: With our extensive service network, you can count on reliable delivery and dedicated after-sales support, no matter where you are.

Our mission is straightforward: to help you enhance safety, productivity, and operational reliability with innovative and durable equipment.

FAQs about the YWZ5 Electro-Hydraulic Drum Brake

Q1: Is the YWZ5 brake suitable for continuous heavy-duty operations?

Yes. It's engineered for both S1 continuous and S3 intermittent duty cycles, making it a versatile and reliable choice for a wide range of applications.

Q2: How does the fail-safe function work?

The brake is spring-applied and thruster-released. When power is lost, the spring automatically engages the brake, ensuring a fail-safe stop.

Q3: What industries typically use this brake?

YWZ5 brakes are a go-to solution for cranes, hoists, conveyors, winches, and equipment in steel mills, ports, construction, and mining.

Q4: Can the brake be customized for hazardous environments?

Absolutely. We offer explosion-proof versions and special configurations tailored to meet specific requirements.

Q5: What are the maintenance requirements?

Thanks to self-lubricating bearings, auto-alignment, and quick-change linings, the YWZ5 brake requires minimal maintenance, helping you minimize downtime.
