JW Series Worm Screw Lift: The Ultimate Linear Actuator for Industrial Applications

I. An introduction to the JW Series Worm Screw Lift

1. What is a Worm Screw Lift?

A Worm Screw Lift (also known as a screw jack or linear actuator) is a mechanical drive mechanism designed to convert rotary motion into linear motion, either vertically or horizontally. By combining a worm gear and a screw, this system can lift heavy loads, provide precise positioning, and generate a stable pressing force. Compared to hydraulic or pneumatic solutions, the Worm Screw Lift stands out for its simple structure, enhanced safety, low maintenance, and zero oil leakage. This is why it has become increasingly popular in manufacturing and industrial automation.

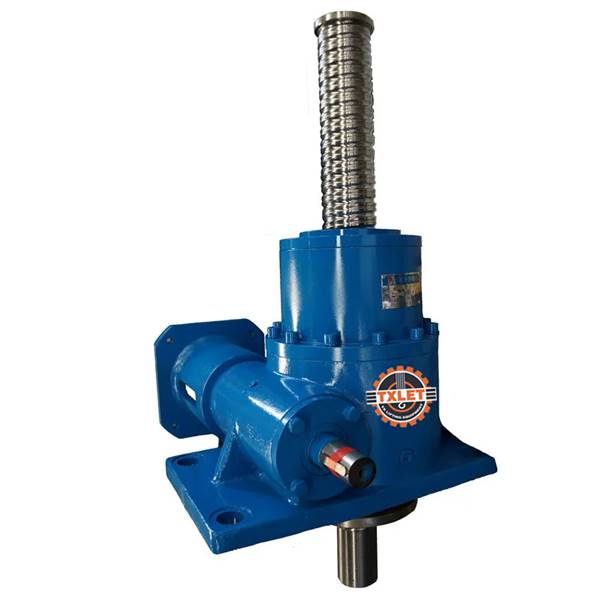

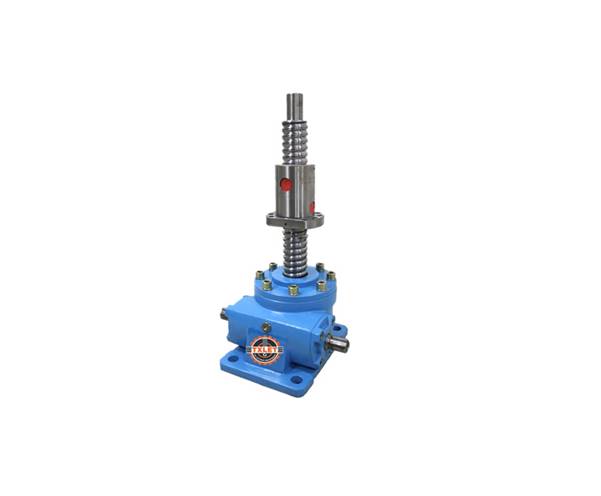

JW Series Worm Screw Lift – Compact ball screw type with flange head, designed for precise positioning and efficient lifting.

2. Introducing the JW Series (JWM & JWB)

Among the various screw jacks available on the market, the JW Series Worm Screw Lift is a comprehensive solution that meets diverse customer needs. The series is divided into two main types:

• JWM Series: Features a trapezoidal screw combined with a worm gear drive. This configuration is suitable for heavy-duty applications, slow speeds, and low-frequency operation, offering exceptional durability and cost-effectiveness.

• JWB Series: Utilizes a ball screw combined with a worm gear drive, providing faster operation, higher efficiency, and lower friction. It is the ideal choice for systems requiring high speeds, continuous duty cycles, and a long service life.

Thanks to its flexible configuration and design, the JW Series can be easily integrated into a wide range of machinery and systems.

3. Why is the Worm Screw Lift widely used in industry?

The Worm Screw Lift is increasingly applied across various industries due to its outstanding advantages:

• High load capacity and safe operation: The worm-and-screw drive design enables a self-locking feature, preventing the load from free-falling when the system is stopped, thus ensuring absolute safety.

• High precision and stability: It allows for precise adjustment of load positions, making it suitable for applications that require accurate positioning or the synchronization of multiple lifting points.

• High flexibility: Multiple screw jacks can be easily linked together via a transmission shaft or a motor to create a synchronized lifting system, which saves space and reduces costs.

• Cost-effective and low maintenance: Unlike hydraulic solutions, the Worm Screw Lift does not require hydraulic lines or fluid, significantly reducing maintenance costs and extending equipment life.

These benefits make the JW Series Worm Screw Lift a leading choice for applications such as platform lifts, solar energy systems, automated production lines, industrial machinery, and modern construction structures.

II. Classification & Key Technical Specifications

1. Classification within the JW Series

The JW Series Worm Screw Lift is divided into two main types, each with unique advantages that make it suitable for specific working environments and operational requirements.

2. Screw head options

To increase versatility and integration with various machines, the JW Series offers three primary screw head options:

• Cylindrical shaft: The standard option, easy to connect with shafts or couplings.

• Flange: Convenient for fixed installations or direct mounting to a machine's flange.

• Flat-head hole: Suitable for applications requiring screw or bolt attachment, providing a secure and stable installation.

These options enable customers to select the ideal configuration for their specific system, ranging from simple machines to complex industrial equipment.

3. Basic technical specifications

When choosing a JW Series Worm Screw Lift, consider the following crucial specifications:

• Load capacity: Ranges from a few kilonewtons (kN) to hundreds of kN, accommodating both light and burdensome lifting requirements.

• Stroke length: Highly flexible and customizable to meet the specific design needs of your application.

• Lifting speed: Depends on the screw pitch and input rotational speed. The JWM is designed for slower speeds and heavy loads, while the JWB is ideal for high-speed, continuous operation.

• Drive efficiency: The JWM has moderate efficiency due to sliding friction, whereas the JWB boasts higher efficiency due to rolling friction.

• Positioning accuracy: Both series offer good positioning capabilities, but the JWB excels in applications demanding higher precision.

• Design life: Measured by the number of operational cycles. The JWB typically has a longer service life due to reduced friction and wear.

4. JWM vs. JWB: A comparison table

This summary table provides a clear overview of the key differences between the two series.

III. Operating Principles of the JW Series Worm Screw Lift

1. Basic Structure

The JW Series Worm Screw Lift (including both JWM and JWB) is comprised of several key components that work in harmony to produce precise linear motion. These components are:

• Worm gear set: Serves as the primary drive mechanism, transferring power from the motor to the screw.

• Screw: The component that generates the linear movement. This can be a trapezoidal screw in the JWM or a ball screw in the JWB.

• Nut: Connected to the load or lifting table, it converts the screw’s rotational motion into linear motion.

• Housing: Protects the internal drive system and adds stability to the entire unit.

• Input shaft: Receives rotational motion from an external power source, such as an electric motor, servo motor, or handwheel.

Heavy-duty JWM Worm Screw Jack – Trapezoidal screw design for stable load lifting in industrial applications.

2. Drive mechanism – from rotary to linear motion

The operational principle of the JW Series Worm Screw Lift is based on the close interaction between the worm gear and the screw:

• Input power: When a motor or handwheel provides rotational motion to the input shaft.

• Power transfer: The worm gear rotates, causing the screw to move.

• Conversion to linear motion:

  • With the JWM (trapezoidal screw): The screw rotates within the nut, and the sliding friction between the screw threads and the nut creates the lifting/lowering force.

  • With the JWB (ball screw): Rolling balls move between the screw threads and the nut, significantly reducing friction and enabling much smoother and more efficient motion.

• Load movement: The nut, which is directly attached to the load, moves up or down along the screw’s linear path.

3. Self-locking mechanism

A key feature of the JWM Series is its self-locking capability. When the input power is cut off, the high friction between the trapezoidal screw and the nut is sufficient to hold the load in place, preventing it from free-falling. This ensures absolute operational safety.

In contrast, due to its extremely low friction, the JWB Series has poor self-locking ability. Therefore, to ensure safety, this system typically requires an additional brake or other supplemental load-holding mechanisms.

4. Synchronized operation of multiple Screw Jacks

A major advantage of the JW Series is its ability to synchronize multiple lifting points. By connecting several screw jacks via a drive shaft, a gearbox, or a shared motor, the system can:

• Lift or lower cumbersome loads across multiple support points.

• Ensure uniform and precise movement among all points, enhancing stability.

This makes it an ideal solution for applications such as lifting large machine bases, industrial work platforms, or large structural frames.

[ Summary of operating principles

• JWM Series: Sliding friction principle → Low speed, heavy-duty, self-locking.

• JWB Series: Rolling friction principle → High speed, high efficiency, requires an external brake.

Both product lines share the same core principle: converting input rotary motion into a precise linear motion for lifting and positioning loads.

IV. Features – Advantages – Practical Applications

1. Key features of the JW Series

The JW Series Worm Screw Lift (including both JWM and JWB) boasts several critical technical features that make it a leading choice for lifting and positioning systems.

• Compact, space-saving design: Its small overall size makes it easy to integrate into machinery, production lines, and industrial structures without taking up much space.

• Quiet and smooth operation: The precision-engineered worm gear and screw structure minimize vibration and noise, making it suitable for environments that require low noise levels.

• Diverse options: Offers multiple choices for the screw type (trapezoidal or ball screw) and head options (cylindrical, flange, flat-head hole), allowing for flexible customization for various applications.

• High reliability: With a sturdy housing and efficient lubrication, the unit is designed for durable, long-term operation with minimal maintenance.

• Flexible integration: It can be used as a standalone unit or connected with multiple screw jacks via a drive shaft or gearbox to create a powerful, synchronized lifting system.

2. Advantages and Benefits

Advantages of each series:

JWM Series (Trapezoidal Screw):

• • Excellent heavy-duty load capacity, ideal for high-force applications.

  • Features a self-locking mechanism for enhanced safety when operation is stopped.

  • Lower initial investment and easy to maintain.

JWB Series (Ball Screw):

• • Higher mechanical efficiency, leading to significant energy savings.

  • Provides fast, smooth, and highly precise operation.

  • Longer design life due to reduced friction and wear.

General benefits of the JW Series:

• Versatility: Can be used for lifting, precise positioning, and generating pressing force.

• Economic: More cost-effective in terms of both initial investment and maintenance compared to complex hydraulic or pneumatic systems.

• Safety: Prevents the risk of uncontrolled load drops, especially with the self-locking JWM Series.

• Customizable: Stroke length, speed, and screw type can all be tailored to specific customer needs.

3. Practical applications in industry

Thanks to its versatile design and durable performance, the JW Series Worm Screw Lift is widely used across numerous industries, including:

• Mechanical and machine manufacturing: Used for lifting work tables, positioning machinery, or adjusting the height of production lines.

• Solar tracking systems: Integrated into solar trackers to adjust the angle of solar panels, optimizing energy absorption.

• Industrial automation: Supports robots, conveyors, and packaging machines for precise, automated positioning and lifting.

• Construction and steel structures: Used to lift structures, workshops, canopies, mobile floors, and cranes.

• Logistics and warehousing: Applied in lifting platforms, loading/unloading systems, and other material handling equipment.

• Synchronized lifting systems: Multiple screw jacks are combined to lift extremely heavy loads, such as machine bases, stamping dies, or heavy structural components.

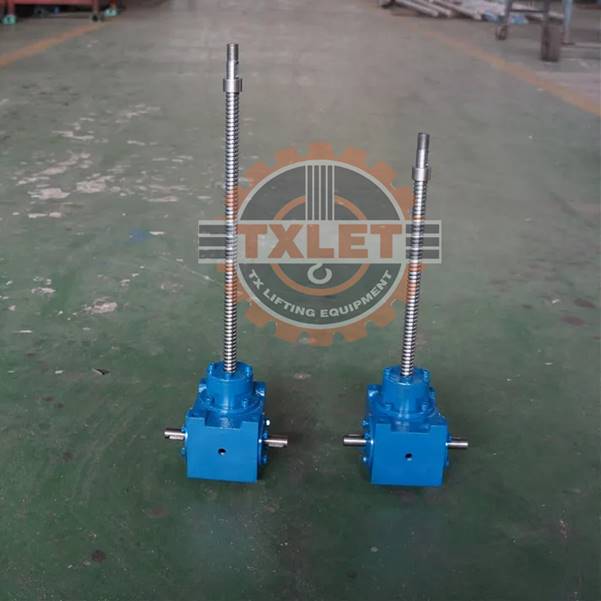

Pair of JW Worm Screw Lifts working in parallel, ideal for synchronized load handling in automation systems.

V. Comprehensive solutions for Businesses

1. JW Series Worm Screw Lift – The Durable and Flexible Mechanical Solution

In the modern industrial world, where precision, safety, and efficiency are paramount, the JW Series Worm Screw Lift (JWM/JWB) has proven its essential role. This product line is not just a simple lifting device but a powerful positioning and force-generating system.

• JWM Series: The perfect choice for heavy-duty, intermittent, and low-speed applications, ensuring high safety with its self-locking capability.

• JWB Series: The optimal solution for high-speed, high-frequency, and long-life applications, delivering superior performance and long-term reliability.

Thanks to its intelligent design, high durability, and diverse applications, the JW Series has become an indispensable tool across almost all mechanical industries—from lifting steel structures and conveyor systems to solar tracking platforms and modern automation lines.

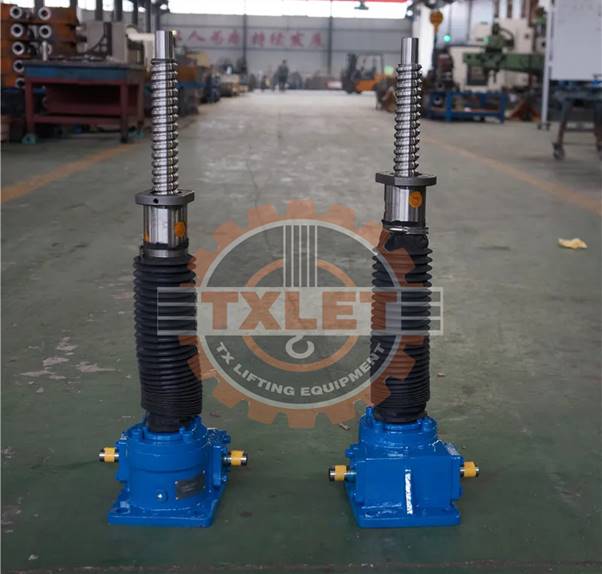

JW Series Screw Lifts with protective bellows cover – Enhanced durability and protection in harsh industrial environments.

2. Why Choose the JW Series?

Choosing the JW Series provides significant benefits, meeting the most demanding requirements of industrial production:

• Exceptional flexibility: With diverse configuration options and screw heads, the device can be easily integrated into existing machinery, optimizing your design.

• Absolute reliability: Operates smoothly, requires minimal maintenance, and has a long service life, ensuring continuous and uninterrupted production.

• Economic efficiency: Minimizes the risk of failure, boosts productivity, and provides a lasting return on investment compared to traditional solutions.

• Maximum safety: Ensures stability and safety for the load in all working environments, especially with the self-locking feature of the JWM series.

3. Synchronized solutions & related products

To maximize efficiency and create a comprehensive drive system, the JW Series Worm Screw Lift can be seamlessly integrated with the following products:

• RV/WP Worm Gear Reducer: Optimizes input speed and torque.

• K Series Helical Bevel Gearbox: Provides a high-efficiency right-angle drive solution.

• F Series Parallel Shaft Gearbox: Enhances transmission efficiency in confined spaces.

• Electric Wire Rope Hoist: Supports the lifting of extremely heavy loads with enhanced safety.

This combination not only optimizes performance but also provides a unified, comprehensive mechanical solution for your business.
