I. General introduction to the Four-rope Clamshell Grab Bucket

1. What is a Four-rope Clamshell Grab Bucket?

The Four-rope Clamshell Grab Bucket is a specialized mechanical device designed for handling bulk materials in industrial and logistics operations. Unlike conventional grabs, this type operates using a unique four-rope system:

• 2 Holding ropes: Used for lifting and lowering the grab and maintaining its stability throughout the operation.

• 2 Closing ropes: Used to control the opening and closing mechanism, allowing the grab to securely clamp materials for lifting and release them for unloading.

This mechanism ensures fast, precise, and safe operation, especially in environments that require handling large volumes of material.

This product is typically installed on overhead cranes, gantry cranes, or portal cranes—types of cranes equipped with two independent winch mechanisms. The applications of the Four-rope Clamshell Grab Bucket are extensive and include:

• Seaports & terminals: Handling coal, clinker, ore, sand, gravel, and bulk cement.

• Thermal power plants & smelting factories: Transporting coal, slag, and ore.

• Warehouses & construction sites: Handling gravel, sand, fertilizers, grains, and other loose materials.

With its durable construction, adjustable capacity, and flexible customization, the Four-rope Clamshell Grab Bucket has become a leading choice for businesses seeking an efficient and long-lasting lifting solution.

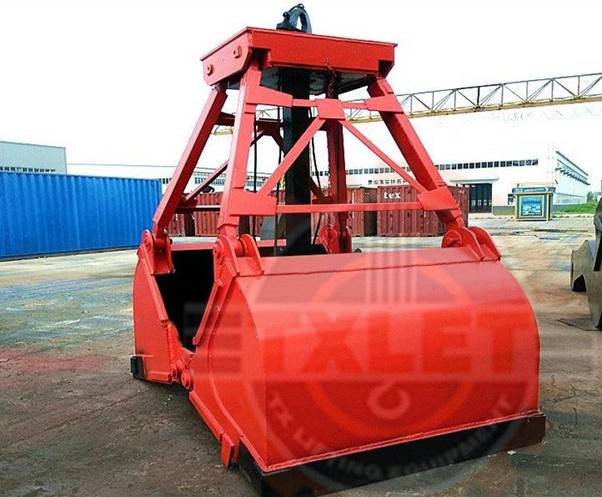

A Four-rope Clamshell Grab Bucket with a robust and durable structure, ready for bulk material handling.

2. Its role in bulk material handling

In bulk material handling operations at ports, factories, or construction sites, the core requirements are always:

• High processing speed: To increase loading/unloading productivity and reduce waiting times for ships or vehicles.

• Versatility: The ability to handle a wide range of materials, from fine particles like cement and grains to heavy and coarse materials like coal, clinker, or ore.

• High durability and safety: To ensure stable operation in harsh, continuous-use environments.

The Four-rope Clamshell Grab Bucket was developed to directly address these needs. Since it operates entirely mechanically without the need for additional hydraulic or electrical systems, it offers significant advantages:

• Reduced breakdowns and maintenance costs: It has fewer components and a simpler design compared to more complex grab types, leading to fewer frequent issues.

• Increased equipment lifespan: The equipment performs effectively even in harsh, dusty, or corrosive working environments.

• Enhanced safety: The secure clamping mechanism and high stability ensure maximum safety during the lifting and lowering process.

Because of its role, the Four-rope Clamshell Grab Bucket not only helps businesses optimize their handling processes but also provides long-term economic efficiency by saving on operational and maintenance costs.

II. Structure & operating principle of the Four-rope Clamshell Grab Bucket

1. The 4-Rope System – The Heart of the Grab

The most distinctive feature of the Four-rope Clamshell Grab Bucket is its four-rope configuration, which provides exceptional control and stability:

• 2 Holding ropes: These are responsible for lifting and lowering the grab and keeping it stable during the entire operation.

• 2 Closing ropes: These control the opening and closing mechanism, enabling the grab to quickly scoop up material and release it with ease.

Compared to two-rope grabs, the four-rope system offers greater stability and a much stronger clamping force. This is particularly beneficial when handling heavy materials or working in windy environments, such as at seaports.

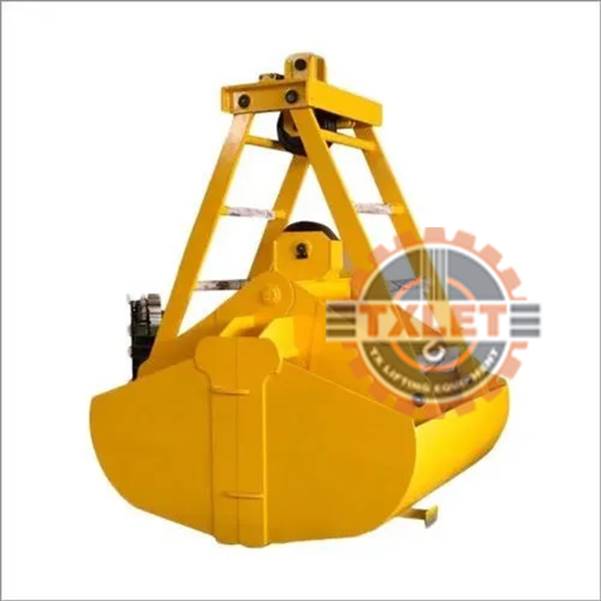

A Four-rope Clamshell Grab Bucket with a robust and durable structure, ready for bulk material handling.

2. Construction materials – durability for harsh environments

The entire grab is manufactured from high-strength, wear-resistant steel to withstand continuous operation with solid, abrasive, or impact-prone materials.

• Frame: The frame is reinforced to handle heavy loads and resist deformation.

• Shafts and joints: Integrated sealed bearings are used to increase the lifespan and reduce maintenance requirements.

• Shell: The grab's shell can be designed as an open or closed type, depending on the material and the need for dust control.

Thanks to these durable materials, the grab can be used for many years while maintaining performance, even in dusty or corrosive conditions involving coal, ore, or fertilizers.

3. Shell type – adaptable for each material

The Four-rope Clamshell Grab Bucket is typically available with two shell configurations:

• Open shell: Ideal for large, coarse materials like gravel, coal, rocks, or slag, where dust control is not a primary concern.

• Closed shell: Perfect for fine materials like cement, fertilizers, or grains, as it helps contain dust, ensuring a safer and cleaner working environment.

Optional kick plates can be added to adjust the grab's capacity, optimizing productivity based on the specific density of each material.

4. Operating principle – purely mechanical, highly efficient

Unlike hydraulic or electric grabs, the Four-rope Clamshell Grab Bucket operates entirely mechanically through the two winch mechanisms on the crane:

• When the closing ropes are released, the grab opens, ready to collect material.

• When the closing ropes are wound in, the shells close, securely gripping and holding the material inside.

• Once the grab is lifted and the closing ropes are rereleased, the material is automatically discharged at the desired location.

This mechanism ensures:

• Simple operation with fewer breakdowns.

• No need for auxiliary hydraulic or electrical systems.

• Fast operating speed, suitable for high-intensity work.

5. Special options – versatility for diverse applications

To meet various needs, the Four-rope Clamshell Grab Bucket can be equipped with additional options:

• Toothed shells: These increase grip and improve handling of cohesive or hard materials.

• Underwater version: Designed for dredging and unloading operations in seaports or rivers.

• Parallel or perpendicular beam configuration: Customized to fit the crane's design and operational conditions.

These options make the grab highly adaptable for various environments, ranging from dusty seaports and grain warehouses that require dust control to underwater dredging operations.

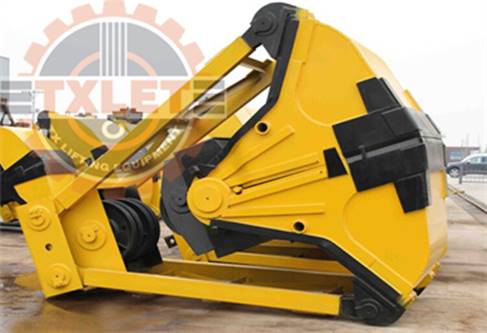

A detailed view of the grab's components, showcasing its reinforced shafts and joints built for a long lifespan.

III. Key technical specifications & comparison with Other Grab Types

1. Basic specifications

The Four-rope Clamshell Grab Bucket is engineered to high technical standards, ensuring durable, flexible, and adaptable performance for handling a wide range of materials. Key specifications include:

• Compatible cranes: Double girder overhead cranes, gantry cranes, and portal cranes. The equipment requires a crane with two independent winch mechanisms to operate.

• Rope system: A 4-rope system (2 holding ropes + 2 closing ropes).

• Shell type: Primarily available as either an open shell or a closed shell. Kick plates can be added to adjust capacity for different materials.

• Materials handled: Versatile, including coal, sand, clinker, gravel, slag, fertilizers, grains, and other bulk materials.

• Operating principle: Purely mechanical, requiring no auxiliary hydraulic or electrical systems.

• Construction material: High-strength, wear-resistant steel, reinforced to withstand heavy loads and harsh environments.

• Special options: Includes toothed shells, a special version for underwater dredging, and parallel or perpendicular beam configurations.

2. Specification table

3. Comparison with other Grab types

IV. Applications & operational benefits of the Four-rope Clamshell Grab Bucket

1. Real-world applications

The Four-rope Clamshell Grab Bucket is considered one of the most efficient solutions for handling bulk materials today. Thanks to its robust design and flexible operating mechanism, this type of grab can be used across various industries:

Seaports & terminals:

• Used for loading and unloading bulk cargo such as coal, clinker, ore, sand, crushed stone, and grains.

• Often paired with tower cranes, jib cranes, or ship cranes to speed up unloading from ships to storage yards.

• Helps reduce vessel turnaround time, saving logistics costs for ship owners.

Thermal power plants & heavy industries:

• Transports coal, iron ore, and clinker from storage yards to feeding hoppers.

• Meets the demands of continuous, high-intensity work, minimizing production downtime.

Cement & metallurgy industries:

• The closed shell grab is ideal for transporting fine materials like clinker, sand, or cement without spillage.

• The open shell grab is well-suited for ore, limestone, and other large-sized materials.

Agriculture & logistics:

• Used for loading and unloading grains, fertilizers, and animal feed from silos or transport vessels.

• Helps minimize product loss and spillage during transportation.

Special applications:

• Special versions of the sealed or leak-proof grab can be used for underwater work, such as dredging mud and sand, or maintaining ports and channels.

• The design can be customized to suit the specific needs of particular materials.

Ultimately, a single four-rope grab can replace multiple specialized devices, optimizing a company's initial investment costs.

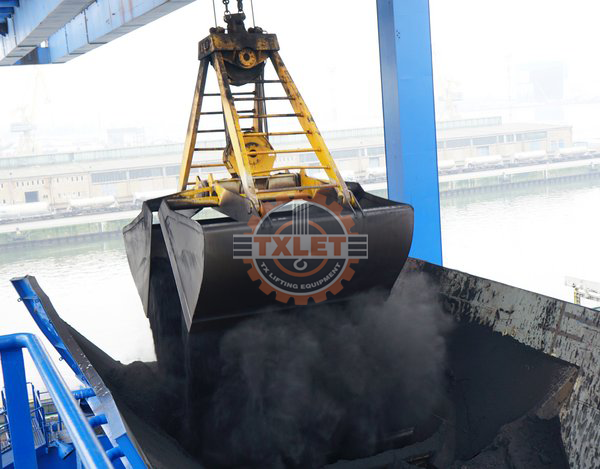

The grab efficiently unloads coal at a seaport, demonstrating high performance and effective material handling.

2. Technical advantages & operational benefits

Compared to other types of grabs, the Four-rope Clamshell Grab Bucket offers several outstanding benefits:

High work efficiency:

• The independent two-winch mechanism (one for lifting, one for opening/closing) allows for fast and precise operation.

• It achieves a faster loading/unloading speed than two-rope or hydraulic grabs, especially in ports with high cargo traffic.

Versatile material handling:

• It can easily grip and securely hold everything from light materials like grains to heavy ones like coal, clinker, or ore.

• The closed shell grab is particularly effective for fine goods, preventing spillage and dust dispersion.

High durability and lifespan:

• The robust mechanical structure has fewer complex parts and does not rely on hydraulic or electronic systems.

• The grab is made from high-strength, wear-resistant alloy steel, which resists corrosion in damp or saline environments.

Low maintenance costs:

• It doesn't require complex systems like oil pipes, cylinders, or electronic control modules.

• Maintenance is simple, and component replacement is quick, reducing machine downtime.

Flexible & customizable:

• Can be manufactured in various sizes and capacities (from a few m³ to tens of m³).

• The shell type can be customized (open/closed) to fit the specific characteristics of different cargo.

Enhanced operational safety:

• The stable structure reduces the risk of material slipping or falling.

• This is especially critical in industries with strict safety requirements, such as seaports and power plants.

Environmentally friendly:

• The closed grab design minimizes dust dispersion during handling, reducing air pollution.

• Helps companies meet international environmental safety standards.

[With these advantages, the Four-rope Clamshell Grab Bucket is more than just a lifting device; it's a comprehensive solution that helps businesses improve productivity, reduce operational costs, and protect the environment.

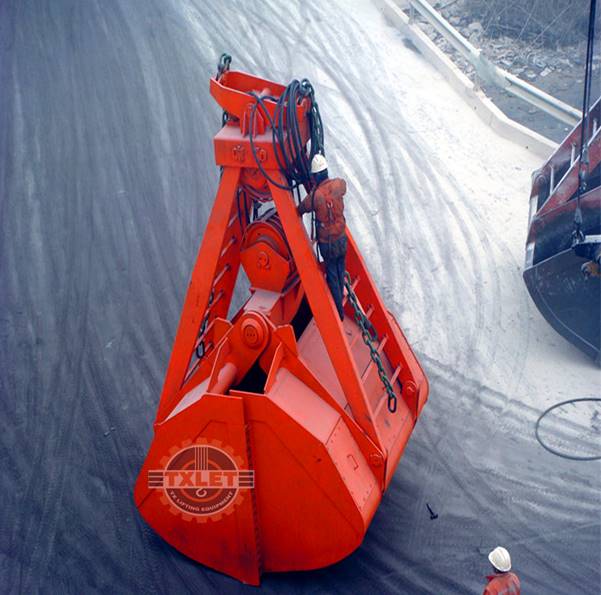

The grab in action inside a ship's hold, optimizing space and unloading speed.

V. How to choose the right Four-rope Clamshell Grab Bucket

1. Criteria for choosing the right Grab Bucket

When selecting a Four-rope Clamshell Grab Bucket, clients should consider these key factors to ensure efficiency and optimize operational costs:

Type of material to be handled:

• For coal, ore, clinker, gravel, and sand, a closed shell design is recommended to minimize dust and spillage.

• For agricultural products, fertilizers, and grains, an open shell can be used to increase the unloading speed.

• For cohesive materials, toothed shells should be used to improve digging and gripping capability.

Grab capacity:

• This depends on the material’s bulk density (tons/m³) and the crane's lifting capacity.

• TXLET can calculate and design the optimal grab capacity to maximize productivity without overloading the crane.

Working environment:

• For ship holds or enclosed warehouses, a dust-proof design with air vents is a priority.

• For underwater or muddy environments, the grab must be made from high-strength, wear- and corrosion-resistant steel.

Flexibility & durability:

• Customers should choose a grab with a robust structure, high-strength steel, and sealed bearings to ensure a long lifespan.
• Customization should be an option to fit specific project needs.

2. Why choose a Four-rope Clamshell Grab Bucket from TXLET?

TXLET is a reputable provider of industrial lifting equipment. By choosing a mechanical Four-rope Grab Bucket from TXLET, clients get:

• Optimal Design Solutions: TXLET offers a diverse range of grabs in various capacities and shell types (open/closed), with customization options to meet specific requirements.

• High-Quality Materials: All grabs are made from wear-resistant steel, which extends their lifespan and reduces replacement costs.

• Superior Features: Lubricated and sealed bearings minimize breakdowns. Options include toothed shells, auxiliary plates, and dust-proof closed shells.

• Professional Technical Services: TXLET provides comprehensive support, from consultation and capacity calculation to installation and maintenance.

• Competitive & Transparent Pricing: We are committed to delivering high-quality products at a reasonable cost.

VI. About TXLET – FAQs

1. About TXLET

TXLET is a specialized provider of industrial lifting equipment, including:

• Electric wire rope hoists and chain hoists.

• Rail transfer carts (AGV, Rail Transfer Cart).

• Mechanical and hydraulic grab buckets, as well as other bulk material handling solutions.

• Single and double girder overhead cranes, gantry cranes, and semi-gantry cranes.

With years of experience, TXLET is proud to offer comprehensive, integrated, and reliable solutions for seaports, warehouses, heavy industries, and energy projects.

2. Frequently Asked Questions (FAQs)

Q1: Can the Four-rope Clamshell Grab Bucket be used with all crane types?

No. The four-rope mechanical grab is only compatible with cranes that have two independent winches (double drum hoists), which are commonly found on double girder cranes, gantry cranes, or port cranes.

Q2: Can the grab operate underwater?

Yes. TXLET provides a version of the grab made with corrosion- and wear-resistant steel, suitable for dredging sand, mud, and other underwater materials.

Q3: What is the standard grab capacity?

Capacities typically range from 1m³ to 30m³, but can be customized for larger volumes based on requirements and the crane's lifting capacity.

Q4: Does the grab require frequent maintenance?

No, maintenance is not complex. The main tasks are inspecting the ropes, lubricating the bearings, and checking the welds. The simple mechanical structure keeps maintenance costs low.

Looking for a durable, cost-effective Four-rope Clamshell Grab Bucket that perfectly fits your current crane?

Contact TXLET today for a free consultation and a detailed quote!
