The Double Girder Semi-Gantry Crane is a powerful and space-saving lifting solution.

I. General overview

1. What is a Double Girder Semi-Gantry Crane?

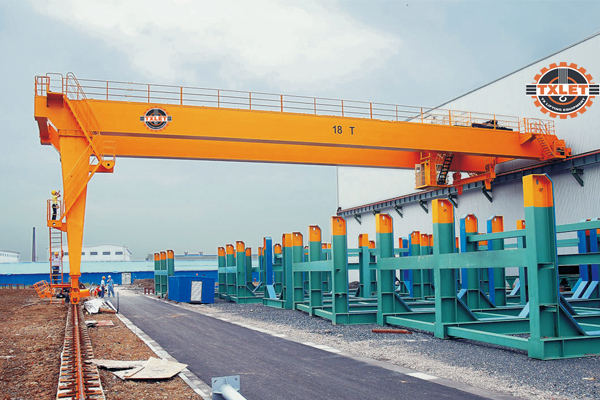

Semi-Gantry Crane at a construction site.

A Double Girder Semi-Gantry Crane is a specialized industrial lifting device that combines the advantages of both gantry and overhead cranes. Its key structural difference lies in its unique support system: one side is supported by an A-frame leg that travels on a ground rail, while the other side is directly attached to the building's existing structure or wall.

The double-girder design significantly increases lifting capacity and ensures stability when handling heavy loads. This configuration is an ideal solution for workplaces with limited space or for projects where cost optimization is a priority.

With a lifting capacity ranging from 5 to 200 tons, a span of 18m to 36m, and a customizable lifting height of 6m to 33m, the Double Girder Semi-Gantry Crane can meet diverse lifting requirements in factories, warehouses, ports, construction sites, and various other industrial environments.

2. The importance of Double Girder Semi-Gantry Cranes in modern industry

As modern production trends shift toward automation and process optimization, businesses are increasingly seeking powerful, flexible, and cost-effective lifting solutions. The Double Girder Semi-Gantry Crane meets all these needs thanks to its unique design and operational advantages:

• Space-saving: It requires only a single support leg system, using the building's structure for the other side, which maximizes available workspace.

• Reduced initial investment: It offers lower material and construction costs compared to a full gantry crane.

• Versatile and durable: It operates efficiently both indoors and outdoors, even in harsh weather conditions.

• Increased productivity: It handles heavy loads continuously, accelerates material flow, and minimizes manual labor needs.

Due to these superior benefits, Double Girder Semi-Gantry Cranes have become a top choice across multiple sectors, including construction, heavy machinery manufacturing, steel production, logistics, energy, and the maritime industry.

II. Structure & operating principle

1. Structure of a Double Girder Semi-Gantry Crane

The Double Girder Semi-Gantry Crane is engineered with a robust structure to ensure stable and safe operation under all working conditions. The main components include:

• Main Girders: Consists of two primary steel girders that support the entire load of the goods and the trolley. These girders are made from high-quality steel, reinforced to prevent bending and torsion when lifting heavy loads.

• A-frame leg: Only one side of the crane uses an A-frame leg, which runs on a ground-level rail.

• Wall/Workshop connection structure: The other side of the main girders is fixed to a rail system mounted on the wall or existing building columns, which helps save space and reduces construction costs.

• Trolley & hoisting mechanism: This is the part that directly performs the lifting and lowering of goods. It includes the hoisting motor, gearbox, rope drum, hook, and a steel cable system.

• Crane traveling mechanism: This system uses an electric motor combined with heavy-duty steel wheels, allowing the entire crane to move along the rails.

• Control system: Can be operated using a pendant control, a wireless remote control, or from a cabin.

• Safety systems: Includes travel limit switches, anti-collision devices, overload limiters, and an emergency stop system to ensure maximum safety.

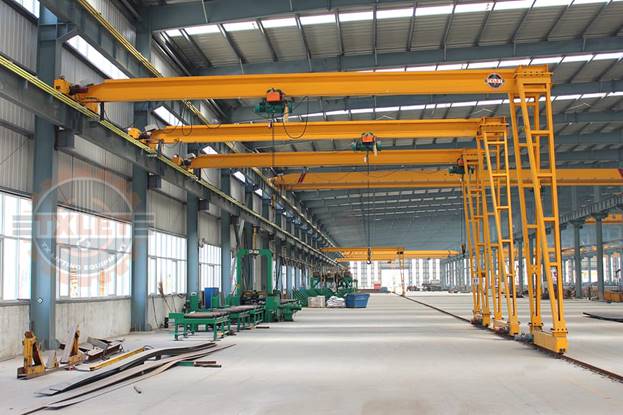

Semi-Gantry Crane inside a workshop.

2. Operating principle of the Double Girder Semi-Gantry Crane

The operating principle of the Double Girder Semi-Gantry Crane is a combination of three basic movements, all controlled and monitored by an intelligent safety system:

• Lifting and lowering: The hoisting mechanism (motor, gearbox, rope drum) precisely lifts or lowers the goods.

• Horizontal travel: The trolley moves along the main girders, positioning the hook exactly where it's needed.

• Longitudinal travel: The entire crane travels on two parallel rail systems, allowing goods to be transported across various areas of the workshop.

This unique Semi-Gantry design maximizes available space, while a continuous safety system monitors the load capacity and travel limits, ensuring both maximum performance and safety.

III. Technical specifications & comparison with other Cranes

1. Detailed technical specifications

The Double Girder Semi-Gantry Crane is engineered to meet the most demanding lifting requirements of heavy industry. Below is a table of standard technical specifications, highlighting the powerful capabilities of this equipment:

These specifications confirm the crane's ability to handle super-heavy, oversized goods and equipment. Its high lifting capacity, wide span, and flexible lifting height allow it to operate efficiently in large factories, warehouses, and construction sites. The work duty class from A3 to A6 signifies that the equipment can handle everything from light, infrequent tasks to continuous, heavy-duty industrial environments.

2. Comparison with other Crane types

To help our customers make an informed decision, we have compiled a detailed comparison table of the Double Girder Semi-Gantry Crane with other common crane types. This table highlights the competitive advantages of our product.

Overall assessment:

• The Double Girder Semi-Gantry Crane is the optimal choice for businesses that need a high lifting capacity solution while saving space and reducing initial investment costs.

• The full gantry crane is the preferred option for outdoor projects that require super-heavy lifting, but it demands higher costs and a larger installation area.

• The Single Girder Overhead Crane is an economical solution for light-duty needs, though it is limited in terms of load capacity and operating range.

IV. Key advantages & practical applications of the Double Girder Semi-Gantry Crane

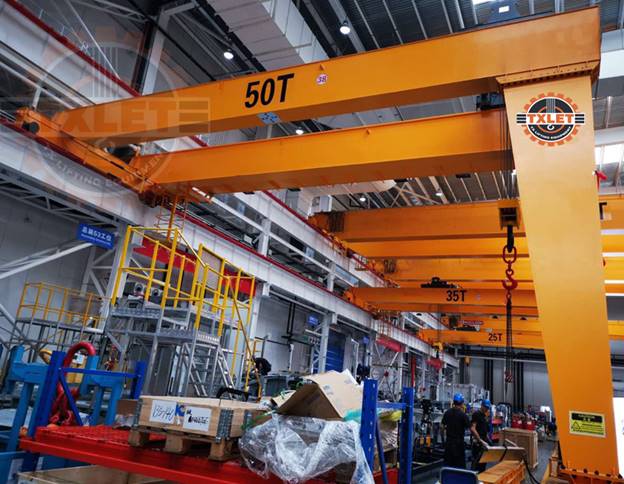

50-ton Semi-Gantry Crane.

1. Key advantages

The Double Girder Semi-Gantry Crane offers exceptional benefits for businesses, helping to optimize lifting efficiency and reduce operational costs:

• Double Girder Structure for enhanced load capacity: With two robust main girders, the crane's structure ensures a significantly higher lifting capacity and a longer span compared to a single-girder design. This is particularly useful for moving bulky or heavy goods weighing tens of tons in heavy industries.

• Flexible Semi-Gantry Design for space-saving: One side of the crane runs on an elevated rail like a traditional overhead crane, while the other side travels on a ground-level rail. This design maximizes workshop floor space and substantially reduces construction costs compared to a full gantry crane.

• Stable and highly durable operation: The main components are manufactured from high-strength alloy steel, precisely machined, and treated with anti-corrosion coatings. As a result, the equipment maintains stable performance and a long lifespan, even in harsh working environments such as seaports, steel warehouses, or outdoor factories.

• High customization capability: The crane can be equipped with various types of wire rope electric hoists or specialized trolleys, and can be controlled via a pendant, wireless remote, or an operator's cabin, depending on the customer's specific needs.

• Easy maintenance: The open structure allows for easy access to critical components, making inspection, maintenance, and part replacement quick and efficient, which minimizes machine downtime.

2. Practical applications

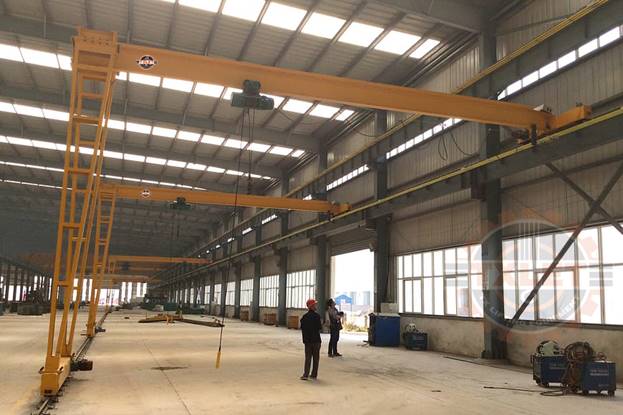

Semi-Gantry Crane inside a workshop.

Thanks to its high lifting capacity, flexible operating range, and long service life, the Double Girder Semi-Gantry Crane is widely applied in many key sectors:

• Steel production & heavy engineering: In steel mills, the crane plays a crucial role in lifting and moving massive steel coils, steel beams, or other heavy metal structures from one production area to another. In engineering workshops, it facilitates the movement of large machine components, industrial engines, or bulky parts during the assembly process.

• Shipbuilding & seaports: At shipyards, this crane is used to lift and move ship sections, hulls, or other heavy assembly parts. At seaports, it provides strong support for loading and unloading oversized or overweight cargo, construction materials, and special containers that are difficult for other cranes to handle.

• Warehousing & logistics: For large warehouses, especially those storing heavy materials, the double girder semi-gantry crane helps in organizing and stacking heavy palletized goods efficiently, optimizing vertical storage space without requiring an extensive rail system. It allows for quick material transfer between areas, speeding up the overall goods turnover.

• Power plants (hydroelectric, thermal): During the construction or maintenance of power plants, the crane is used to move and install heavy equipment such as turbines, generators, transformers, or large structural elements, ensuring absolute precision and safety.

• Industrial manufacturing & assembly: Workshops specializing in the production and assembly of heavy industrial equipment, such as presses, stamping machines, or large production lines, use this crane to lift and position heavy components, reducing manual labor and shortening assembly time, thereby increasing overall productivity.

V. Operating instructions & frequently asked questions (FAQs)

1. Operation & maintenance guidelines

To ensure your Double Girder Semi-Gantry Crane operates reliably, safely, and efficiently, operators must follow these guidelines:

Pre-operation checklist:

• Ensure there are no obstructions on the crane's or trolley's travel path.

• Carefully inspect the wire ropes, hook, brakes, and all safety latches.

• Confirm that the power supply and control system are functioning correctly.

Safe operation rules:

• Never lift a load exceeding the crane's rated capacity.

• Avoid dragging loads or lifting them off-center, as this can cause instability and danger.

• Always observe and follow safety signals from the signaler (if applicable).

Routine maintenance:

• Lubricate moving parts, bearings, and gears according to the schedule.

• Inspect and replace the wire ropes promptly if there are signs of wear, fraying, or damage.

• Conduct a comprehensive inspection of the brakes, motors, and control panel every 3–6 months to ensure safety.

2. FAQs – Frequently asked questions

Q1: Can the Double Girder Semi-Gantry Crane be used outdoors?

Yes, it can. The crane is designed to operate effectively in various environments. However, for maximum durability and safety, we recommend installing a cover or a protective system against rain and dust.

Q2: What is the average delivery and installation time?

The delivery time depends on the customer's configuration and customization requirements, typically ranging from 15–30 business days. Installation time will be determined after a site survey.

Q3: Can I order a customized crane?

We specialize in designing and manufacturing cranes according to your specific needs for lifting capacity, span, lifting height, and operating speed, ensuring the best possible solution for your production needs.

Q4: Is the crane difficult to maintain?

No. The main components of the crane are designed for easy access, making inspection and replacement straightforward. We also provide professional documentation and periodic maintenance services to support our customers.
