The capacity upgrade project at the steel plant presented major challenges in terms of heavy load, extreme temperature, and safety requirements. TXLET delivered a 300T metallurgical overhead crane with an optimized design, ensuring stable, efficient, and reliable operation. The successful implementation not only enhanced the customer’s production efficiency but also reinforced TXLET’s reputation in the global steel industry.

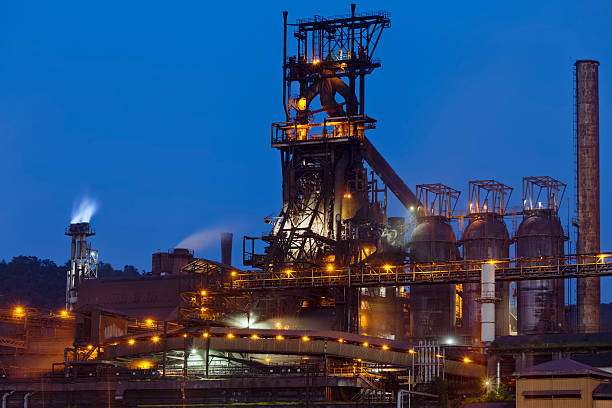

In a major metallurgical line upgrade project at a leading, high-capacity steel conglomerate, the client set exceptionally high and stringent requirements for the lifting equipment. Their entire core production process – from receiving and transporting molten iron at the blast furnace, moving molten steel to the converter, to the precise pouring and handling of ingots – demanded the support of an ultra-heavy-duty overhead crane.
This is an Ultra-severe Operating Environment where temperatures exceeding 1000°C, loads in excess of 300 tons, and continuous 24/7 operation are inseparable elements. The client required a crane solution that was not only mechanically robust but also guaranteed absolute safety in accordance with international standards, delivered uninterrupted operational stability, and optimized the limited installation space within the steel mill.
Against this backdrop, TXLET – a global leader in industrial lifting solutions – was selected as the trusted partner to provide the 300T Foundry Overhead Crane solution. This equipment was custom-engineered to meet the most demanding standards of the modern steel industry and ensure strategic reliability in the global supply chain.
The project posed a series of complex technical and operational challenges, requiring a breakthrough solution:
Each heat can involve hundreds of tons of molten iron or steel. This necessitated a crane with the capacity for sustained, absolutely stable load bearing and micrometric precision during every lift and pour, preventing any sway or misalignment that could lead to a catastrophic molten metal leak incident.
The furnace area consistently maintains temperatures in the thousands of degrees Celsius. This extreme heat creates enormous thermal stress and deformation pressure on the main and secondary mechanical structures, electrical systems, and sensors. The equipment needed thermal deformation resistance, material fatigue resistance, and sustained performance over long periods.
Even a minor error during the lifting of hot metal could lead to serious accidents. Therefore, the requirement for Redundancy Design and European-level safety standards (FEM) was paramount, maximizing the protection of human life and assets.
The metallurgical cycle is uninterrupted. This means that the crane must operate steadily and without interruption, even during crises or regular short-term preventative maintenance.
The plant aimed to maximize floor space. The crane required a compact design with optimized lifting height while still ensuring robust operation and structural durability with a 300-ton load capacity.
Beyond the initial investment, the client was particularly concerned with reducing routine maintenance costs, increasing component lifespan, and ensuring easy, quick replacement of critical parts.
These challenges demanded a crane solution that was not only technically compliant but also strategically and economically viable in the long term, enabling the client to ensure absolute safety, optimize productivity, and achieve superior cost efficiency compared to competitors.
Following an in-depth on-site survey and detailed analysis of the client's needs, TXLET delivered a comprehensive and exclusive solution: the 300T Foundry Overhead Crane, specifically designed for high-intensity steel production environments, achieving FEM Working Classification T8. This solution converges precision mechanical power, triple-layer safety assurance, advanced electrical control technology, and long-term sustainability.

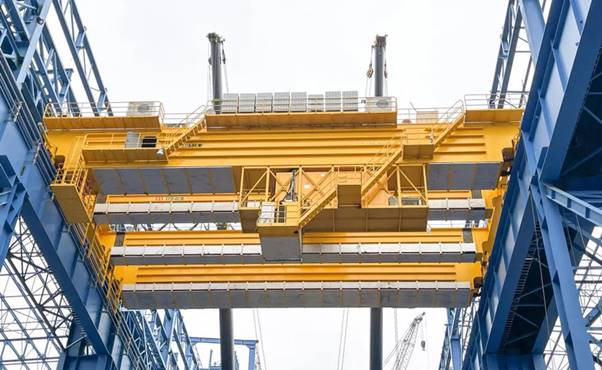

This is the mandatory specialized configuration for super-heavy cranes, ensuring even load distribution, reducing stress concentration, and maximizing absolute stability when lifting massive molten metal loads, significantly mitigating sway during pouring.
All load-bearing girders and frames are fabricated from high-grade alloy steel and undergo a complex thermal treatment process to eliminate residual stress and prevent physical deformation during prolonged high-temperature operation.
All critical load-bearing welds are 100% inspected using industrial Ultrasonic Testing, combined with precision CNC machining to guarantee the concentricity and parallelism of the rails and drives. This ensures smooth crane operation, minimizes friction, reduces vibration, and suppresses noise.
This is a key innovation. Instead of replacing the entire pricey hook assembly when worn, the client only needs to replace the protective liner made of a special wear-resistant material. This solution doubles the hook’s lifespan, significantly reduces maintenance costs, and minimizes Downtime.
Selection of special heat-resistant materials capable of withstanding high-temperature environments and large dynamic loads, ensuring sustained performance without overheating.
The entire metal surface is treated with multiple coats of industrial-grade paint, providing resistance against oxidation and corrosion caused by hot vapor and chemical dust in the steel mill.
A main transformer supplies power to the entire system, while a secondary (auxiliary) transformer is ready to activate instantly upon power failure. This guarantees the crane never loses power mid-lift while handling molten metal—a mandatory safety requirement.
All wiring utilizes Foundry-grade Cables, offering high heat resistance and, critically, Flame Retardancy.
TXLET utilizes advanced Variable Frequency Drive (VFD) control technology, which optimizes motor power output, substantially reduces power consumption during variable loads, and minimizes shock during start/stop.
Two separate hoist units can completely substitute the function of the other in case of a component failure. Two gearboxes, two motors, two braking systems, and two cable systems operate in parallel to ensure 100% lifting capacity remains available.
A central Programmable Logic Controller (PLC) automatically monitors and switches between mechanisms, allowing the crane to maintain continuous operation without manual intervention.
The system undergoes fault simulation testing and a 150% static overload test before handover, guaranteeing real-world operational capability in a 24/7 environment with the highest safety level.
Includes high-power LED lights, loud audible alarms, and visual signals on the HMI control screen, providing immediate alerts upon detecting risks such as overload, overheating, or overspeed.
IoT sensors are installed at critical points (hooks, ropes, bearings) to measure load, temperature, vibration, and wear levels. All data is transmitted to the control center for analysis and issuing timely predictive maintenance alerts.
Absolutely prevents free fall, collisions, and over-travel limits, ensuring safety for both workers and the metallurgical line.
TXLET designed the crane to achieve maximum lifting height and minimum hook approach to the support columns, fitting within the confined space of the steel mill, especially for short crane spans.
Equipped with anti-vibration operator seats, an industrial air conditioning system, heat-resistant camera monitoring, and intuitive display screens, enhancing safety and convenience for the operator in the hot environment.
With this superior and comprehensive technical solution, TXLET not only meets the client's stringent requirements but also provides absolute peace of mind regarding safety, long-term sustainability, and outstanding economic efficiency.
TXLET coordinated closely with the client from project initiation to final handover, ensuring every stage was executed precisely:
The engineering team visited the plant to measure workshop space, rail systems, electrical grid conditions, and temperature environment. This data formed the basis for building the optimized crane design.
3D drawings and load simulation models were developed using specialized software. Engineers checked all factors, including oscillation, stress, and beam deflection, ensuring the ability to bear up to 300 tons under extreme conditions.
Key components, including the girder frame, hook system, gearbox, motors, and electrical equipment, were constructed simultaneously at the TXLET factory. Each component underwent mechanical, electrical, and safety testing before dispatch.
The installation process was phased to minimize disruption to the plant's production. Rail alignment, electrical connections, and control system calibration were meticulously supervised.
Before official operation, the crane underwent static load testing, dynamic load testing, 125% overload testing, and continuous operation for 72 hours. All test results were certified according to CE and ISO standards.
TXLET is committed to ensuring the client receives not just equipment, but a complete solution:
The plant's operators and engineers received comprehensive training on operational procedures, safety control, and emergency handling.
TXLET provided technical documentation, a detailed periodic maintenance schedule, along with instructions for replacing wear-and-tear components.
The crane is integrated with an IoT system to track load, temperature, vibration, and wear status. This data aids in predicting failures, mitigating the risk of unplanned downtime.

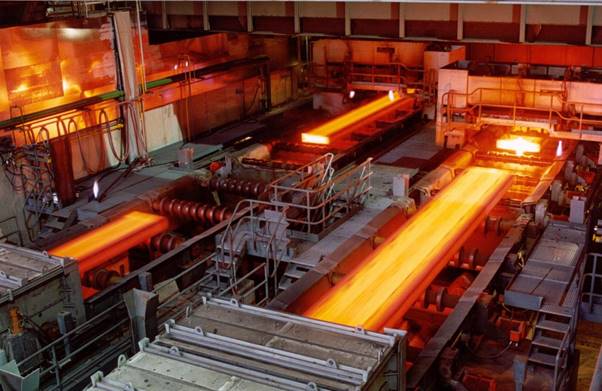

In practice, the 300T crane has become the backbone of the production line:
Transporting molten iron and steel from the blast furnace to the steel converter, ensuring accurate, safe, and continuous pouring.
Pouring molten steel into casting molds with high stability results in uniform quality finished steel products and reduced rejects.
Handling and transporting metallurgical slag in dusty, high-temperature conditions requires equipment with extreme durability and low failure rates.
Supporting plant maintenance: Lifting heavy modules like furnace shells, gas ducts, and heat shields.
After commissioning, the TXLET solution delivered outstanding results:
Production efficiency increased by 30% due to reduced transport cycle times, mitigating bottlenecks in the production line.
Maintenance costs reduced by 20% thanks to the detachable hook lining structure, standardized components, and the failure prediction system.
Enhanced safety with the multi-layer alert system and dual redundancy mechanism, eliminating the risk of sudden disruptions.
Elevated Client's Brand Reputation: The plant is recognized as one of the most modern metallurgical facilities in the region, attracting more strategic partners.
Through comprehensive implementation, the TXLET 300T crane has proven its irreplaceable role in high-capacity steel production processes, serving as a testament to TXLET's design and manufacturing capabilities on an international scale.
The adoption of the 300T metallurgical crane from TXLET demonstrates that it is not merely a lifting device, but a long-term strategic solution helping the client maintain a competitive advantage in the rigorous steel industry.
Eliminating Major Risks: The redundant system ensures that even if one mechanism fails, the crane continues operating without interruption.
Minimizing Occupational Accidents: With hazard zone warning lights, limit switches, and smart deceleration systems, it protects operators and the work environment.
Proactive Safety Management: Operational data is analyzed in real-time, providing early warnings of failure risks so the plant can take timely action.
Significantly Reduced Maintenance Costs: The detachable hook lining design allows for quick replacement of the wear part instead of the entire component, saving material costs.
Reduced Unplanned Downtime: Thanks to continuous IoT monitoring, the client can schedule maintenance before failures occur.
Energy Efficiency: The dual transformer system provides stable power, reducing energy waste and optimizing operating costs.
Optimized ROI: With clear increases in production efficiency, the client shortens the
24/7 Continuous Operation: Meets the demanding production requirements in metallurgy, where any disruption leads to significant losses.
Shortened Production Cycle: Transporting, pouring, and casting steel happen quickly and precisely, substantially increasing output.
High Stability: Less vibration, smooth operation, reduced component wear, and enhanced quality of the finished steel product.
Increased Production Capacity: Allows the client to scale up, accepting larger orders while maintaining quality and schedule adherence.
Elevated Brand: Owning a modern metallurgical line with a 300T capacity crane helps the client assert its leading position in the industry.
Partner Confidence: The client is highly regarded for its safe and efficient production capability, expanding international cooperation opportunities.
Sustainable Advantage: Modern equipment, high reliability, and long-term efficient operation help the plant maintain market share amidst global competition.
Pioneering Enterprise Image: Demonstrates methodical investment, embracing new technology trends.
Thus, the TXLET 300T metallurgical crane solution not only resolves immediate challenges but also creates a foundation for long-term development: greater safety, lower costs, higher productivity, and a stronger reputation. This is why the client chose TXLET as a strategic partner for current and future metallurgical projects.
TXLET does not just supply the 300T crane in this project but affirms its role as a global strategic partner in the industrial lifting equipment sector. This partnership is anchored on three main pillars: commitment to quality, commitment to service, and commitment to technological innovation.
Adherence to International Standards: All products comply with CE, ISO, FEM, and top European safety standards.
Strict Control Process: From design and manufacturing to inspection, TXLET maintains a multi-level QA/QC system to eliminate errors at the source.
Superior Durability: TXLET's crane design targets a long lifespan, meeting the demands of continuous 24/7 operation in harsh metallurgical environments.
Comprehensive Support: TXLET maintains an online and on-site after-sales engineering team, ready to support clients 24/7.
Partnership Throughout the Product Lifecycle: Beyond equipment handover, TXLET provides periodic maintenance, spare parts supply, and technology upgrades.
Long-Term Collaboration: Clients are considered strategic partners, with ongoing support for future line upgrade or capacity expansion projects.
Greater Capacity – Larger Scale: TXLET is developing 500T+ metallurgical crane models to meet the increasingly high demands of modern steel mills.
Smart Cranes: Integration of IoT, AI, and remote monitoring systems, enabling predictive maintenance and operational optimization.
Green & Energy-Efficient Solutions: Focus on researching power-saving control systems and reducing CO2 emissions, contributing to the client's achievement of global ESG standards.
Expanding International Cooperation: TXLET aims to become a leading crane brand not only in Asia but also in Europe, the Middle East, and South America.
With its enduring commitment and long-term vision, TXLET affirms its role as a trusted partner for all large-scale metallurgical projects worldwide. The 300T crane project is just one of many proofs of TXLET’s capability to deliver superior technological solutions, partnering with clients on their journey of global development.
